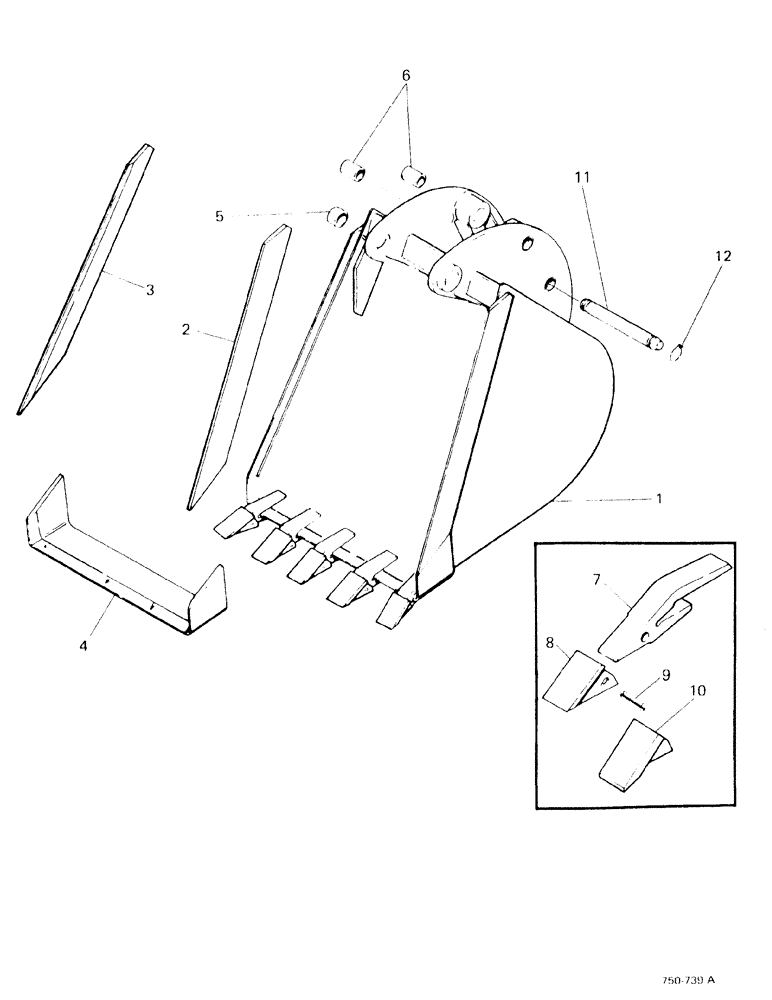

Запчасти Case 580F (244) - AXIAL AND SIDE SHIFT BACKHOE BUCKETS (84) - BOOMS, DIPPERS & BUCKETS

1

E37011

BUCKET

12"

1шт.

1

E37619

BUCKET

12", for Germany only

1шт.

2

E37012

BLADE

SPARE PART right

1шт.

3

E37013

BLADE

SPARE PART left

1шт.

4

E37014

BLADE

SPARE PART

1шт.

5

D40243

BUSHING,44.68mm ID x 57.15mm OD x 19.05mm L

2шт.

6

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

4шт.

1

D57546

BUCKET

18"

1шт.

1

E33971

BUCKET

18", for Germany only

1шт.

2

D57550

EDGE, CUTTING

BLADE right

1шт.

3

D57551

EDGE, CUTTING

BLADE left

1шт.

4

D57594

EDGE, CUTTING

BLADE

1шт.

5

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

2шт.

6

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

4шт.

1

D57544

BUCKET

24"

1шт.

1

E33972

BUCKET

SPARE PART 24", for Germany only

1шт.

2

D57550

EDGE, CUTTING

BLADE right

1шт.

3

D57551

EDGE, CUTTING

BLADE left

1шт.

4

D57591

EDGE, CUTTING

BLADE

1шт.

5

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

2шт.

6

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

4шт.

1

D57543

BUCKET

SPARE PART 30"

1шт.

1

E33973

BUCKET

SPARE PART 30", for Germany only

1шт.

2

D57550

EDGE, CUTTING

BLADE right

1шт.

3

D57551

EDGE, CUTTING

BLADE left

1шт.

4

D57559

EDGE, CUTTING

BLADE

1шт.

5

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

2шт.

6

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

4шт.

1

D57545

BUCKET

36"

1шт.

2

D57550

EDGE, CUTTING

BLADE right

1шт.

3

D57551

EDGE, CUTTING

BLADE left

1шт.

4

D57595

EDGE, CUTTING

BLADE

1шт.

5

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

2шт.

6

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

4шт.

D48035

TOOTH

complete

1шт.

7

NSS

NOT SOLD SEPARAT

SHANK

1шт.

8

D39093

TOOTH

1шт.

9

D39094

BUCKET TOOTH KEY

PIN flex

1шт.

10

D44193

TOOTH

heavy duty

1шт.

D41679

KIT

pin, for D57543 + D57544 + D57545 + E33972 + E33973

1шт.

11

D30899

PIVOT PIN,38.1mm OD x 338.14mm L

1шт.

12

D25279

SNAP RING,M35, Int

2шт.

D16603

KIT

pin, for E37011 + E37619, D41547, see Figure 242

1шт.

11

D55584

PIN,44.45mm OD x 327.15mm L

1шт.

12

D25280

SNAP RING,#175, Ext

2шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.
