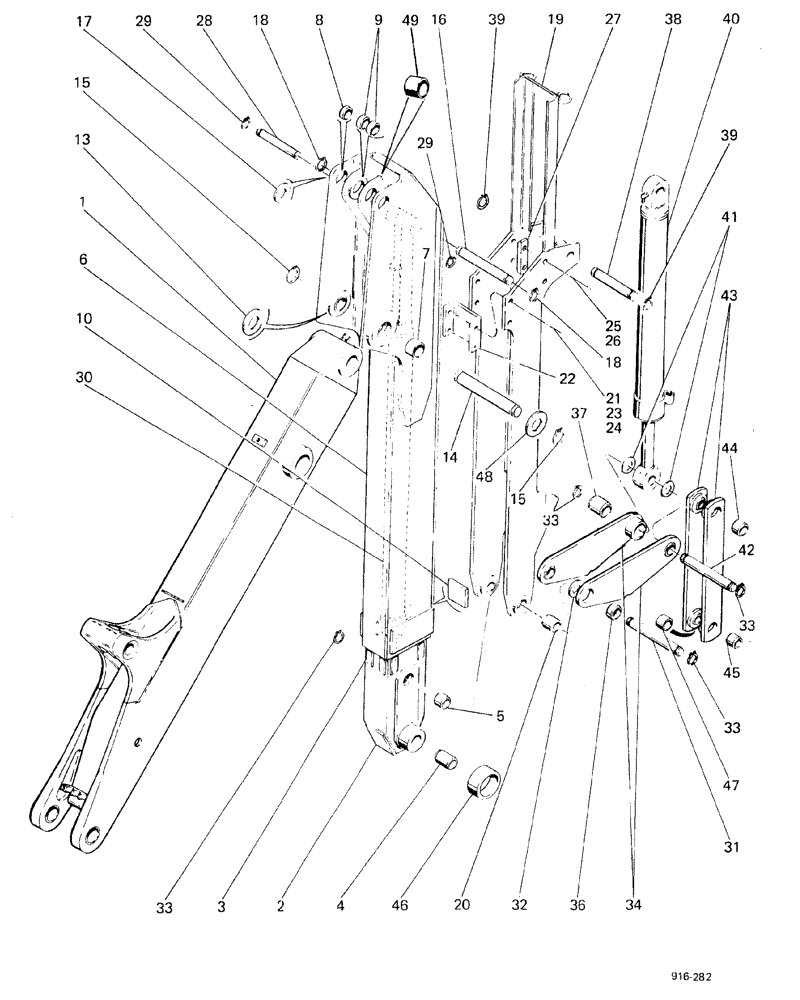

Запчасти Case 580F (238) - AXIAL AND SIDE SHIFT BACKHOE PARTS EXTENDAHOE (84) - BOOMS, DIPPERS & BUCKETS

1

REF

INSTRUCTION

BOOM, see Figure 234 - 274

1шт.

2

D55727

ARM

dipper, complete

1шт.

D16615

STRIP

KIT

2шт.

3

D55688

STRIP

wear

4шт.

4

D50146

BUSHING,44.68mm ID x 57.15mm OD x 38.1mm L

2шт.

5

D37443

BUSHING,44.68mm ID x 57.15mm OD x 50.8mm L

2шт.

D73826

COVER

HOUSING complete

1шт.

6

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

7

D30756

BUSHING,51.02mm ID x 63.5mm OD x 31.8mm L

2шт.

8

D34340

BUSHING,44.68mm ID x 53.98mm OD x 25.4mm L

1шт.

9

D46405

BUSHING,44.68mm ID x 53.98mm OD x 19.05mm L

2шт.

10

D61708

BLOCK

1шт.

13

D53561

BUSHING

SPACER, 3/4" thick

2шт.

13

D81915

BUSHING

SPACER, 3/8" thick

4шт.

14

D45034

PIN

1шт.

15

D26919

SNAP RING,#200, Ext

2шт.

16

D37611

PIVOT PIN,44.45mm OD x 255.59mm L

1шт.

17

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

4шт.

18

D25280

SNAP RING,#175, Ext

2шт.

19

D61744

ARM

EXTENSION complete

1шт.

20

D52521

BUSHING,44.68mm ID x 57.15mm OD x 26.92mm L

2шт.

21

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

22

D61701

BRACE

PLATE

1шт.

23

92-8

LOCK WASHER,1/2"

4шт.

24

25-108

NUT,1/2"-13, G5

4шт.

25

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

26

92-8

LOCK WASHER,1/2"

4шт.

27

D54095

BLOCK

2шт.

28

D44882

PIN,38.1mm OD x 203.2mm L

1шт.

29

D25279

SNAP RING,M35, Int

2шт.

30

REF

INSTRUCTION

CYLINDER, see Figure 206

1шт.

31

D53818

PIN,44.45mm OD x 278.89mm L

1шт.

32

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

1шт.

33

D25280

SNAP RING,#175, Ext

4шт.

34

E35389

LINK

2шт.

36

D46405

BUSHING,44.68mm ID x 53.98mm OD x 19.05mm L

1шт.

37

D42788

BUSHING,44.68mm ID x 53.98mm OD x 28.57mm L

1шт.

38

D37602

PIN

1шт.

39

D25280

SNAP RING,#175, Ext

2шт.

40

REF

INSTRUCTION

CYLINDER, see Figure 204

1шт.

41

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

1шт.

42

D53818

PIN,44.45mm OD x 278.89mm L

1шт.

43

D61244

LINK

2шт.

44

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

1шт.

45

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

1шт.

46

D52578

BUSHING

SPACER

2шт.

47

D37450

SPACER,40.89mm ID x 48.26mm OD x 63.5mm L

1шт.

48

195-2155

WASHER,2 1/16" x 3" x .109"

2шт.

49

E41515

BUSHING

SPARE PART SPACER

2шт.
