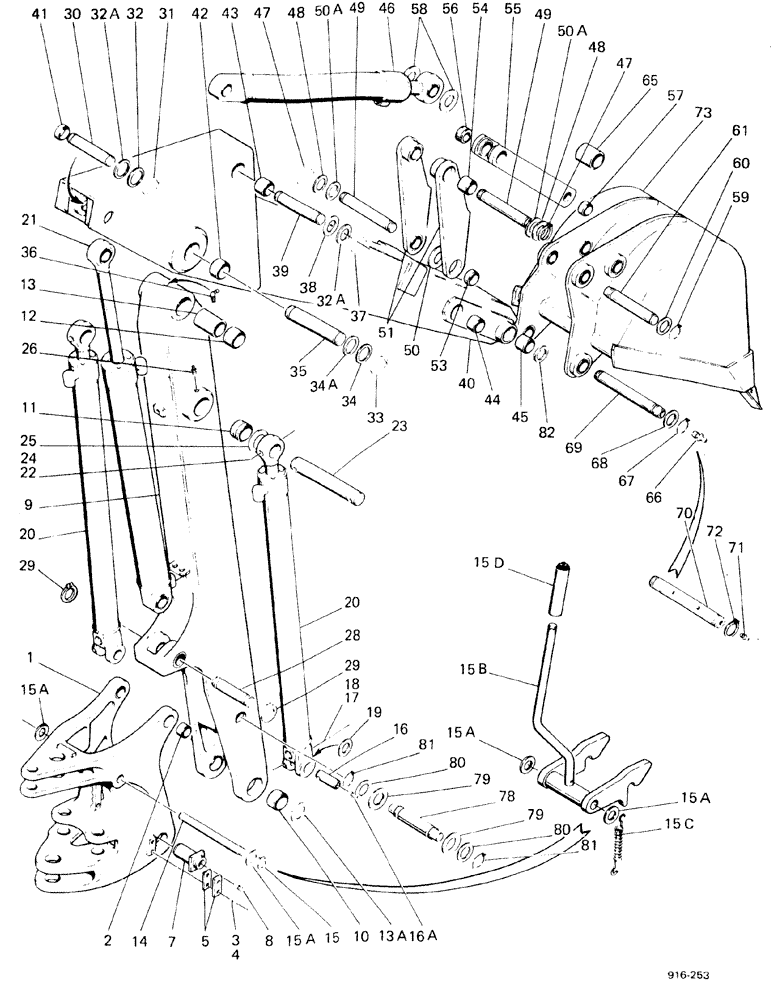

Запчасти Case 580F (234) - AXIAL BACKHOE CONTROL TOWER AND BOOM (84) - BOOMS, DIPPERS & BUCKETS
№
Артикул
Название
Примечание
Количество
1
D67791
BRACKET
TOWER
1шт.
2
D49429
BUSHING
2шт.
3
13-812
BOLT,Hex, 1/2" - 13 x 3/4", Gr 5
CAP
4шт.
4
92-8
LOCK WASHER,1/2"
4шт.
5
D50149
BLOCK
2шт.
7
D50700
PIN
2шт.
8
219-1
LUBE NIPPLE,1/8" - 27 NPTF
2шт.
9
D69988
BOOM
1шт.
10
D50698
BUSHING,51.03mm ID x 69.98mm OD x 40.64mm L
2шт.
11
D95362
BUSHING
2шт.
12
D31142
BUSHING,51.02mm ID x 63.5mm OD x 38.1mm L
2шт.
13
D37416
BUSHING
SPACER
1шт.
13a
D44813
SHIM,53.34mm ID x 76.2mm OD x 0.89mm Thk
1шт.
14
D55996
SHAFT
1шт.
15
D56051
SNAP RING,#137. Ext
#137, Ext
2шт.
15a
195-2140
WASHER,1 7/16" x 2" x .065"
1шт.
15b
D69251
LEVER
LATCH
1шт.
UP TO NO. 3.775.228
1шт.
15b
D75674
LEVER
LATCH
1шт.
STARTING WITH NO. 3.775.229
1шт.
15c
D54397
SPRING
1шт.
15d
D75300
KNOB
1шт.
STARTING WITH NO. 3.775.229
1шт.
16
D49866
PIN,38.1mm OD x 96.52mm L
2шт.
16a
219-1
LUBE NIPPLE,1/8" - 27 NPTF
2шт.
17
13-656
BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5
2шт.
18
131-352
LOCK NUT,3/8"-16, GA
2шт.
19
D28610
WASHER,38.5mm ID x 63.5mm OD x 2.66mm Thk
2шт.
20
REF
INSTRUCTION
CYLINDER, see Figure 200
2шт.
21
REF
INSTRUCTION
CYLINDER, see Figure 202
1шт.
22
13-864
BOLT,Hex, 1/2" - 13 x 4", Gr 5
2шт.
23
D49865
PIN,50.8mm OD x 304.8mm L
1шт.
24
131-354
LOCK NUT,1/2"-13, GA
2шт.
25
195-2155
WASHER,2 1/16" x 3" x .109"
2шт.
26
219-1
LUBE NIPPLE,1/8" - 27 NPTF
2шт.
28
D72359
PIN,44.45mm OD x 142.24mm L
1шт.
29
D25280
SNAP RING,#175, Ext
2шт.
30
D52522
PIN,44.45mm OD x 211.84mm L
1шт.
31
D25280
SNAP RING,#175, Ext
2шт.
32
195-2152
WASHER,1 13/16" x 2 1/2" x .109"
4шт.
32a
51200255
SEALING WASHER,45.77mm ID x 62.18mm OD x 1.59mm Thk
1шт.
33
D26919
SNAP RING,#200, Ext
2шт.
34
195-2155
WASHER,2 1/16" x 3" x .109"
4шт.
34a
D44813
SHIM,53.34mm ID x 76.2mm OD x 0.89mm Thk
1шт.
35
D45523
PIN,50.8mm OD x 276.35mm L
1шт.
36
219-55
LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF
1шт.
37
D25280
SNAP RING,#175, Ext
2шт.
38
195-2152
WASHER,1 13/16" x 2 1/2" x .109"
4шт.
39
D52522
PIN,44.45mm OD x 211.84mm L
1шт.
40
D63796
ARM
dipper
1шт.
41
D52434
BUSHING
2шт.
42
D31142
BUSHING,51.02mm ID x 63.5mm OD x 38.1mm L
2шт.
43
D34340
BUSHING,44.68mm ID x 53.98mm OD x 25.4mm L
2шт.
45
D55626
BUSHING,44.68mm ID x 57.15mm OD x 41.91mm L
2шт.
46
REF
INSTRUCTION
CYLINDER, see Figure 204
1шт.
47
D25280
SNAP RING,#175, Ext
4шт.
48
195-2152
WASHER,1 13/16" x 2 1/2" x .109"
4шт.
49
D53818
PIN,44.45mm OD x 278.89mm L
2шт.
50
D55732
WASHER
2шт.
50a
51200255
SEALING WASHER,45.77mm ID x 62.18mm OD x 1.59mm Thk
1шт.
51
E35389
LINK
2шт.
53
D46405
BUSHING,44.68mm ID x 53.98mm OD x 19.05mm L
1шт.
54
D42788
BUSHING,44.68mm ID x 53.98mm OD x 28.57mm L
1шт.
55
D61244
LINK
2шт.
56
D37495
BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L
1шт.
58
195-2152
WASHER,1 13/16" x 2 1/2" x .109"
2шт.
59
D25279
SNAP RING,M35, Int
2шт.
60
D28610
WASHER,38.5mm ID x 63.5mm OD x 2.66mm Thk
2шт.
61
D30899
PIVOT PIN,38.1mm OD x 338.14mm L
13.31" long
1шт.
65
D37450
SPACER,40.89mm ID x 48.26mm OD x 63.5mm L
SPACER
1шт.
66
219-1
LUBE NIPPLE,1/8" - 27 NPTF
1шт.
67
D25280
SNAP RING,#175, Ext
2шт.
68
195-2152
WASHER,1 13/16" x 2 1/2" x .109"
2шт.
69
D64799
PIN,44.45mm OD x 370.84mm L
14.57" long
1шт.
70
D55584
PIN,44.45mm OD x 327.15mm L
12.88" long
1шт.
71
219-1
LUBE NIPPLE,1/8" - 27 NPTF
2шт.
72
D25280
SNAP RING,#175, Ext
2шт.
73
REF
INSTRUCTION
BUCKET, see Figure 240 - 246
1шт.
78
D55082
LOCK PIN,38.1mm OD x 208.53mm L
1шт.
79
D28610
WASHER,38.5mm ID x 63.5mm OD x 2.66mm Thk
1шт.
80
D31312
WASHER
1шт.
81
D25279
SNAP RING,M35, Int
2шт.
82
195-2152
WASHER,1 13/16" x 2 1/2" x .109"
2шт.
