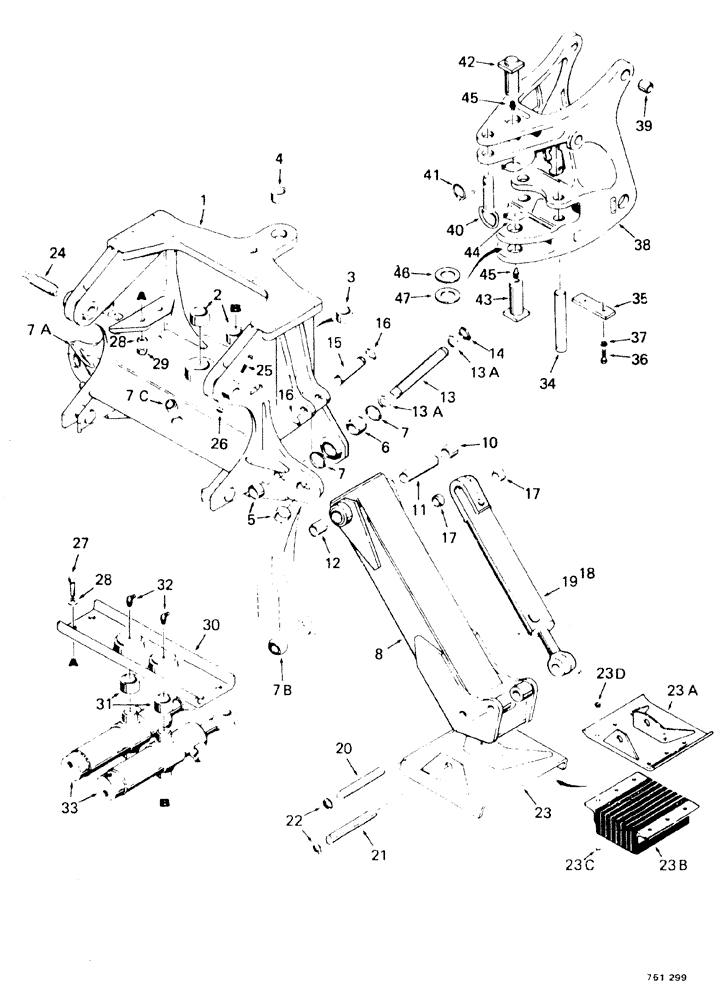

Запчасти Case 580F (230) - AXIAL BACKHOE CHASSIS AND STABILIZERS (84) - BOOMS, DIPPERS & BUCKETS

1

E36396

FRAME

1шт.

UP TO NO. 3.825.530

1шт.

1

E40517

FRAME

1шт.

STARTING WITH NO. 3.825.531

1шт.

2

D60159

BUSHING,60.55mm ID x 69.85mm OD x 38.1mm L

2шт.

3

D31142

BUSHING,51.02mm ID x 63.5mm OD x 38.1mm L

1шт.

4

D30756

BUSHING,51.02mm ID x 63.5mm OD x 31.8mm L

1шт.

5

D43940

BUSHING,44.68mm ID x 57.15mm OD x 25.4mm L

4шт.

6

D46942

BEARING,1.75" ID x 2.8125" OD x 1.526"

2шт.

7

F35231

LOCKING RING

4шт.

7a

D61298

GUIDE

if used

1шт.

7b

D60803

BUSHING,44.42mm ID x 63.75mm OD

2шт.

7c

41-1032

PLUG,Cup, 2"

1шт.

8

D50294

STABILIZER

LEG right

1шт.

9

D50295

STABILIZER

LEG left

1шт.

10

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

1шт.

11

D54013

SPACER,50.7mm ID x 53.98mm OD x 140.72mm L

SPACER

1шт.

12

D37443

BUSHING,44.68mm ID x 57.15mm OD x 50.8mm L

1шт.

13

D67308

PIN,44.4mm OD x 344.17mm L

2шт.

13a

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

4шт.

14

D25280

SNAP RING,#175, Ext

4шт.

15

D29483

PIN,38.1mm OD x 146.05mm L

2шт.

16

D25279

SNAP RING,M35, Int

4шт.

17

D50337

BUSHING,38.91mm ID x 44.45mm OD x 14.22mm L

SPACER

4шт.

18

REF

INSTRUCTION

CYLINDER, see Figure 192

1шт.

19

REF

INSTRUCTION

CYLINDER, see Figure 192

1шт.

20

D50695

PIN,38.1mm OD x 195.33mm L

2шт.

21

D50696

PIN,38.1mm OD x 225.55mm L

2шт.

22

D25279

SNAP RING,M35, Int

8шт.

23

D64621

FOOT REST

2шт.

23a

D61376

STABILIZER

FOOT

2шт.

23b

D61368

PAD

2шт.

23c

113-713

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

12шт.

23d

129-108

NUT,3/4"-10, G5

12шт.

24

D56335

PIN

2шт.

25

13-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

2шт.

26

131-654

LOCK NUT,1/2"-13, GB

2шт.

27

13-1640

BOLT,Hex, 1" - 8 x 2-1/2", Gr 5, Full Thd

4шт.

28

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

8шт.

29

25-1016

NUT,1"-8, G5

4шт.

30

D60169

CHANNEL

PLATE

1шт.

31

D60159

BUSHING,60.55mm ID x 69.85mm OD x 38.1mm L

2шт.

32

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

2шт.

33

REF

INSTRUCTION

CYLINDER, see Figure 196

2шт.

34

D49863

PIN,44.45mm OD x 248.92mm L

2шт.

35

D49864

PLATE

1шт.

36

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

37

92-8

LOCK WASHER,1/2"

2шт.

38

D67791

BRACKET

TOWER

1шт.

39

D49429

BUSHING

2шт.

40

D49879

PIN

1шт.

41

D60490

PIN

1шт.

42

D74004

PIN

1шт.

43

D74004

PIN

1шт.

44

D26919

SNAP RING,#200, Ext

2шт.

45

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

46

195-2155

WASHER,2 1/16" x 3" x .109"

1шт.

47

72990

WASHER

1шт.
