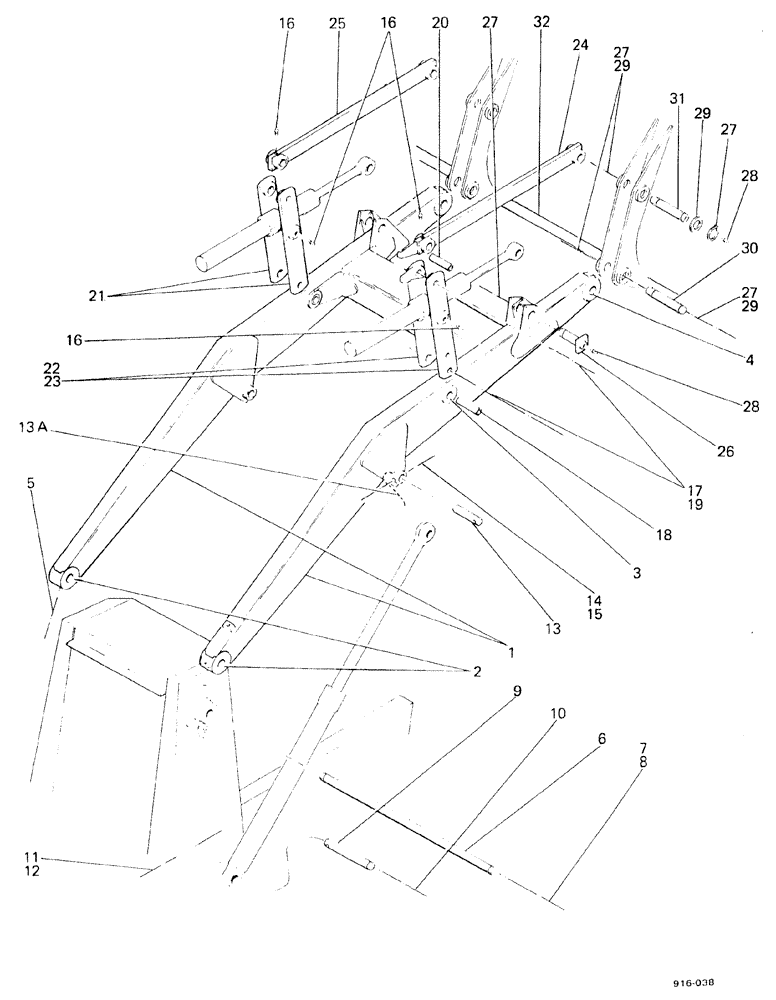

Запчасти Case 580F (178) - LOADER CHASSIS AND PARTS (82) - FRONT LOADER & BUCKET

1

E37150

ARM

FRAME

1шт.

2

D67150

BUSHING,45.23mm ID x 53.99mm OD x 33mm L

4шт.

3

D37763

BUSHING

4шт.

4

D67061

BUSHING,38.25mm ID x 47.65mm OD x 70mm L

4шт.

5

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

2шт.

6

D65705

CROSS SHAFT

1шт.

7

D71067

WASHER

2шт.

8

D25280

SNAP RING,#175, Ext

2шт.

9

D67426

PIN

2шт.

10

D25280

SNAP RING,#175, Ext

2шт.

11

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

2шт.

12

131-652

LOCK NUT,3/8"-16, GB

2шт.

13

D71927

PIN

2шт.

13a

D70359

WASHER

2шт.

14

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

2шт.

15

131-652

LOCK NUT,3/8"-16, GB

2шт.

16

219-1

LUBE NIPPLE,1/8" - 27 NPTF

6шт.

17

13-16104

BOLT,Hex, 1" - 8 x 6-1/2", Gr 5

4шт.

18

D31219

BUSHING,26.67mm ID x 38.08mm OD x 101.6mm L

SPACER

2шт.

19

131-659

NUT,1"-8, GB

4шт.

20

D45904

BUSHING,26.67mm ID x 38.07mm OD x 99.21mm L

SPACER

2шт.

21

D65339

LINK

left-hand

2шт.

22

D65333

ARTICULATION

right-hand

1шт.

23

D65338

ARTICULATION

right-hand

1шт.

24

D65342

LINK

right-hand

1шт.

25

D65341

LINK

left-hand

1шт.

26

D66943

PIN

2шт.

27

D25279

SNAP RING,M35, Int

10шт.

28

219-1

LUBE NIPPLE,1/8" - 27 NPTF

4шт.

29

D28610

WASHER,38.5mm ID x 63.5mm OD x 2.66mm Thk

8шт.

30

D71697

PIN

2шт.

31

D71696

PIN

2шт.

32

REF

INSTRUCTION

BUCKET, see Figure 180

1шт.
