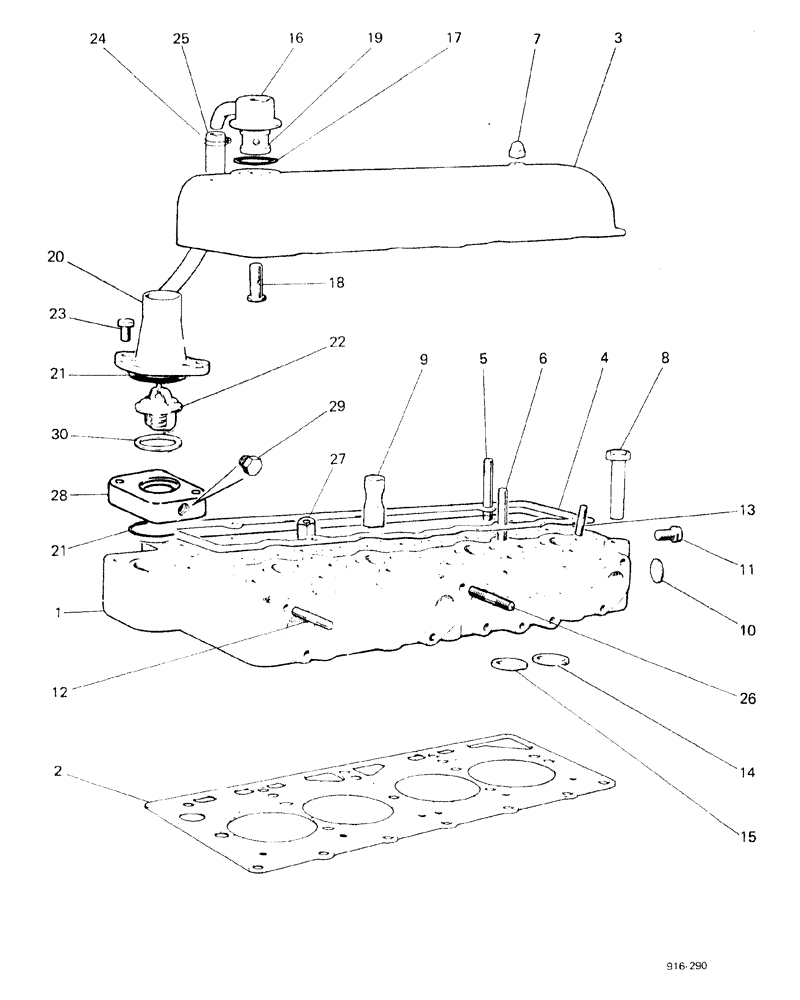

Запчасти Case 580F (012) - ENGINE CYLINDER HEAD (10) - ENGINE

1

K964533

CYLINDER

HEAD

1шт.

2

K947758

GASKET

1шт.

3

K920678

COVER

1шт.

4

K905229

GASKET,3.97mm Thk

1шт.

5

K608118

STUD

2шт.

6

K608119

STUD

2шт.

K14988

WASHER

special

4шт.

7

129-880

CROWN NUT,Crown, 5/16"-18

special

4шт.

8

K600870

BOLT

7шт.

9

K906536

NUT

PIN, LARGE NUT special

7шт.

K900431

PLUG

4шт.

10

41-1020

PLUG,Cup, 1 1/4"

1шт.

11

K19591

PLUG

flanged

1шт.

K16732

WASHER

1шт.

12

K608203

STUD

3/8" x 1-7/8" NC

12шт.

K608237

STUD

3/8" x 1-3/4" NC, for inlet, top hole NO. 2 and 4 port

2шт.

13

K608107

STUD

8шт.

9635082

NUT,5/16" - 18, Gr 5

8шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

8шт.

14

K921246

INSERT

inlet

4шт.

15

K921247

INSERT

exhaust

4шт.

16

K948118

COVER

1шт.

17

K626901

O-RING,40554" ID x 40575" OD x 0.12"

O-RING

1шт.

18

13-626

BOLT,Hex, 3/8" - 16 x 1-5/8", Gr 5

1шт.

25-148

JAM NUT,Jam, 1/2"-13, G5

Lock

1шт.

K626443

WASHER

1шт.

19

K945433

BUSHING

SPACER

1шт.

20

K915630

OUTLET

PIPE

1шт.

21

K68951

O-RING,0.103" Thk x 2.112" ID, -138, Cl 5, 75 Duro

2шт.

22

K900368

THERMOSTAT

order K200831

1шт.

22

K200831

THERMOSTAT

1шт.

23

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

SET, use with K954192

2шт.

23

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

SET

2шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

2шт.

24

214-252

HOSE CLAMP,#08, 0.5" - 0.91", Type F Worm

1шт.

25

K947667

PIPE

HOSE

1шт.

26

K608216

STUD

3/8" x 1-3/8 NC

1шт.

27

K617594

NUT

1/2" NF

5шт.

K953429

WASHER,13.89mm ID x 23.81mm OD x 0.71mm Thk

19шт.

28

K954192

FITTING

CONNECTION heater

1шт.

K627850

PLASTIC PLUG

SEAL

1шт.

29

221-13

PLUG,Sq Hd, 3/8"-18

use on unit without heat

1шт.

30

K910411

GASKET

1шт.

K964883

GASKET

decarbonize

1шт.
