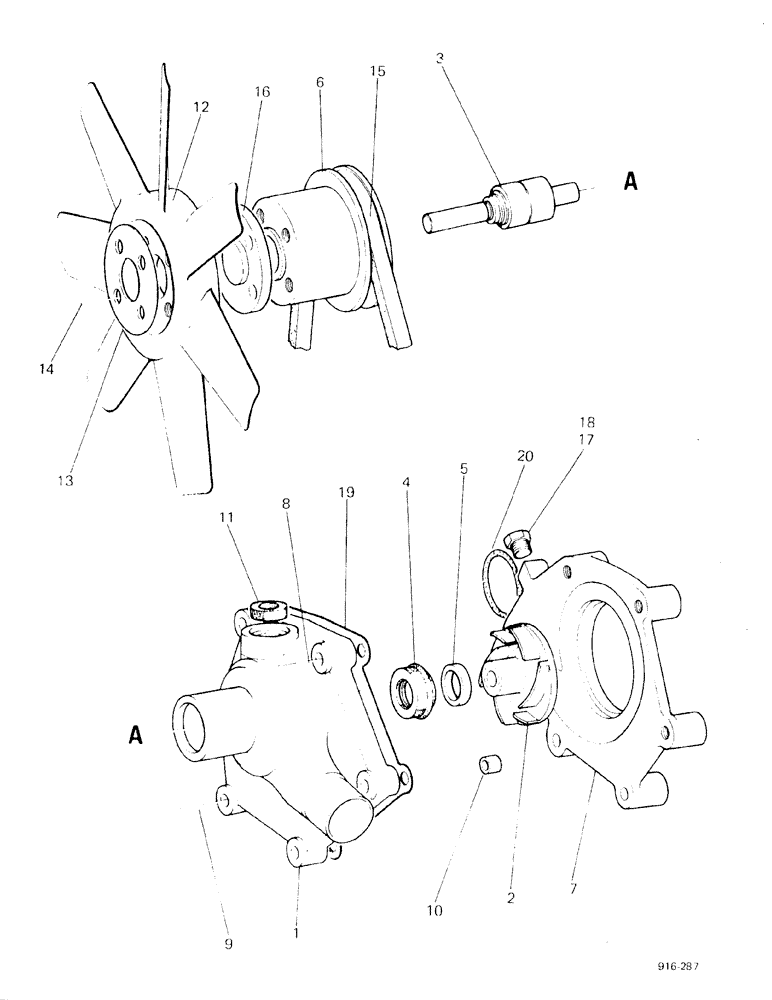

Запчасти Case 580F (011A) - ENGINE WATER PUMP, STARTING WITH NO 130915, DC AND 146996, TC (10) - ENGINE

K200679

PUMP

WATER ASSEMBLY

1шт.

1

K200686

HOUSING

BODY

1шт.

2

K200687

IMPELLER

1шт.

3

K620202

BEARING ASSY

SHAFT

1шт.

Part of Water Pump Kit P/N K965888

1шт.

4

K200823

GLAND

seal

1шт.

Part of Water Pump Kit P/N K965888

1шт.

5

K200821

RING

1шт.

Part of Water Pump Kit P/N K965888

1шт.

6

K200824

PULLEY

1шт.

K965888

PACKAGE, REPAIR

KITwater pump, Includes: Ref. 3 - 5, 11, 19 and 20

1шт.

7

K952667

HOUSING

1шт.

8

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

4шт.

9

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

10

K31064

SLEEVE

DOWEL

2шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

6шт.

11

K915330

SEALING RING

SEAL rubber

1шт.

Part of Water Pump Kit P/N K965888

1шт.

12

K921359

FAN

suction

1шт.

13

K921361

SHIM

PLATE retaining

1шт.

14

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

192-21

LOCK WASHER,3/8"

4шт.

15

K952514

V-BELT

Fan

1шт.

16

K953379

BUSHING

SPARE PART SPACER

1шт.

17

K623829

PLUG

1шт.

18

K19500

GASKET

WASHER

1шт.

19

K942844

GASKET

1шт.

Part of Water Pump Kit P/N K965888

1шт.

20

K24737

O-RING,0.139" Thk x 1.609" ID, -223, Cl 6, 90 Duro

1шт.

Part of Water Pump Kit P/N K965888

1шт.
