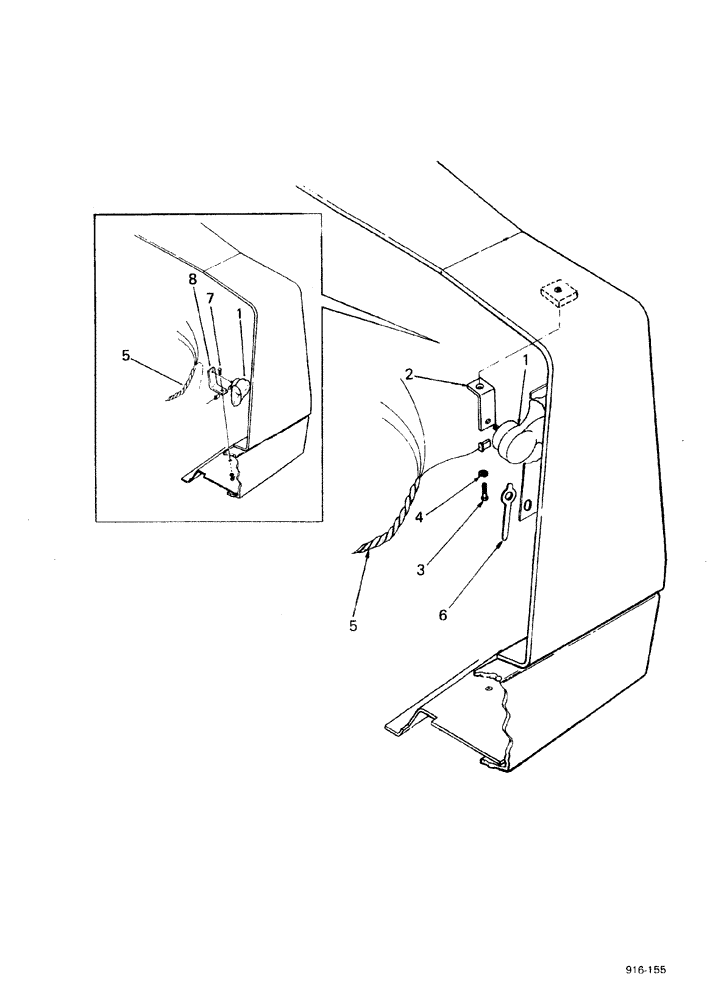

Запчасти Case 580F (050) - ELECTRIC HORN (55) - ELECTRICAL SYSTEMS

1

E17494

HORN

electric

1шт.

2

E35738

SPARE PART

BRACKET

1шт.

STARTING WITH NO. 3.702.073, DRY CLUTCH/NO. 3.733.406 TORQUE CONVERTER

1шт.

3

13-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

CAP

1шт.

STARTING WITH NO. 3.702.073, DRY CLUTCH/NO. 3.733.406 TORQUE CONVERTER

1шт.

4

92-8

LOCK WASHER,1/2"

1шт.

STARTING WITH NO. 3.702.073, DRY CLUTCH/NO. 3.733.406 TORQUE CONVERTER

1шт.

5

REF

INSTRUCTION

HARNESS, see Figure 038

1шт.

6

E10200

CLAMP

1шт.

7

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

UP TO NO. 3.702.072, DRY CLUTCH/NO. 3.733.405, TORQUE CONVERTER

1шт.

92-8

LOCK WASHER,1/2"

1шт.

UP TO NO. 3.702.072, DRY CLUTCH/NO. 3.733.405, TORQUE CONVERTER

1шт.

25-108

NUT,1/2"-13, G5

1шт.

UP TO NO. 3.702.072, DRY CLUTCH/NO. 3.733.405, TORQUE CONVERTER

1шт.

8

D69786

BRACKET

1шт.

UP TO NO. 3.702.072, DRY CLUTCH/NO. 3.733.405, TORQUE CONVERTER

1шт.
