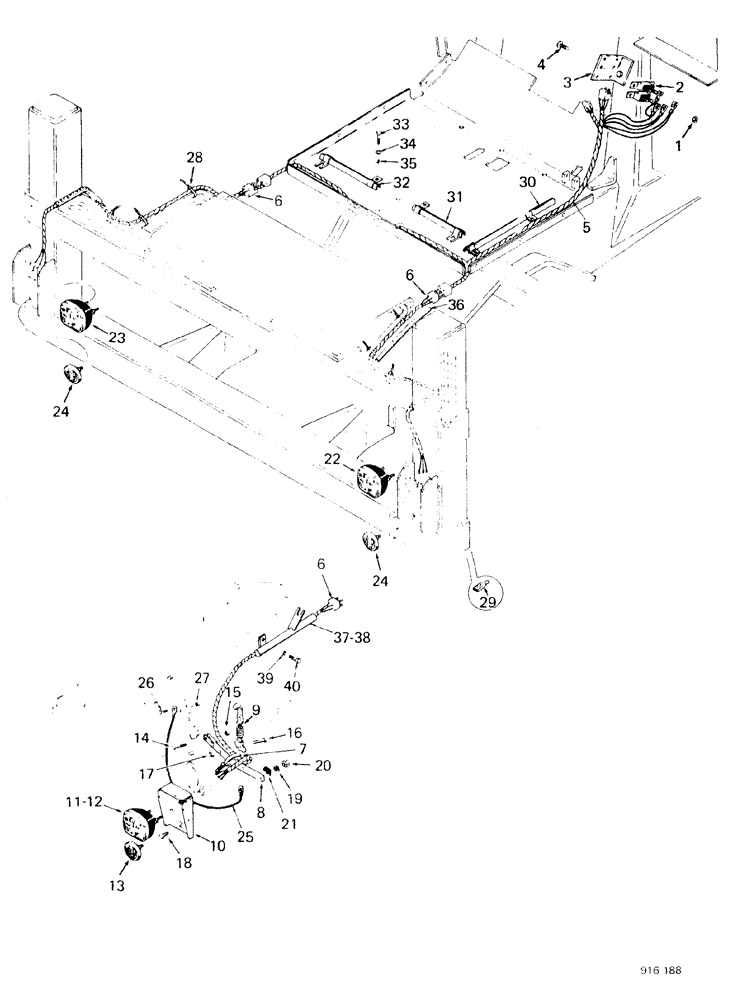

Запчасти Case 580F (046) - ELECTICAL REAR LIGHTS, UP TO NO 3.823.701 (55) - ELECTRICAL SYSTEMS

1

129-37

NUT,#10-32

6шт.

1

193-6

LOCK WASHER,Ext Tooth, #10

6шт.

2

D68579

BREAKER

circuit

3шт.

3

E35288

BRACKET

1шт.

4

182-528

SCREW,Sl Pan Hd, #10 - 32 x 1/2"

6шт.

5

D67753

HARNESS

order D76494

1шт.

5

D76494

HARNESS

1шт.

6

D69766

HARNESS

order E37468

2шт.

6

E37468

HARNESS

2шт.

7

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

4шт.

8

E30998

ARM

BAR

2шт.

9

E31002

FASTENER

SPARE PART HOOK

2шт.

10

E30935

BRACKET

SPARE PART

2шт.

11

E33295

INTERIOR LIGHT

rear, right-hand, order E37274 + E32565, 3-UAR

1шт.

11

E37274

INTERIOR LIGHT

rear, right-hand

1шт.

E33509

LENS

1шт.

E32057

BULB

SHUTTLE, 5 watt

1шт.

E32056

LAMP, TAIL

LIGHT, TAIL BULB, 21watt

2шт.

12

E33294

INTERIOR LIGHT

rear, left-hand, order E37275 + E32565, 3-UAR

1шт.

12

E37275

LIGHT ASSY.

rear, left-hand

1шт.

E33508

LENS

1шт.

E32057

BULB

SHUTTLE, 5 watt

1шт.

E32056

LAMP, TAIL

LIGHT, TAIL BULB, 21 watt

2шт.

13

E41350

REFLECTOR

2шт.

14

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

15

131-6

LOCK NUT,3/8"-16, GC

2шт.

16

13-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5, Full Thd

2шт.

17

131-2

NUT,1/4"-20, GB

2шт.

18

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

4шт.

19

92-5

LOCK WASHER,5/16"

4шт.

20

9635082

NUT,5/16" - 18, Gr 5

4шт.

21

E11472

CLAMP

COLLAR

2шт.

22

REF

INSTRUCTION

LIGHT rear, right-hand, see Ref. 11

1шт.

23

REF

INSTRUCTION

LIGHT rear, left-hand, see Ref. 12

1шт.

24

E41350

REFLECTOR

2шт.

25

E33915

CABLE

WIRE

2шт.

26

182-528

SCREW,Sl Pan Hd, #10 - 32 x 1/2"

2шт.

27

129-37

NUT,#10-32

2шт.

27

193-6

LOCK WASHER,Ext Tooth, #10

2шт.

28

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

6-8шт.

29

E32565

CLIP

TERMINAL

6шт.

30

E40347

GUARD

1шт.

STARTING WITH NO. 3.736.448

1шт.

31

E40346

GUARD right-hand

1шт.

STARTING WITH NO. 3.736.448

1шт.

32

E40345

GUARD left-hand

1шт.

STARTING WITH NO. 3.736.448

1шт.

33

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Cap

2шт.

STARTING WITH NO. 3.736.448

1шт.

34

92-6

LOCK WASHER,3/8"

2шт.

STARTING WITH NO. 3.736.448

1шт.

35

195-25

WASHER,3/8"

2шт.

STARTING WITH NO. 3.736.448

1шт.

36

E40279

SHEATH

2шт.

STARTING WITH NO. 3.736.448

1шт.

37

E38551

GUARD, left-hand

1шт.

STARTING WITH NO. 3.736.448

1шт.

38

E38552

GUARD, right-hand

1шт.

STARTING WITH NO. 3.736.448

1шт.

39

92-5

LOCK WASHER,5/16"

2шт.

STARTING WITH NO. 3.736.448

1шт.

40

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

2шт.

STARTING WITH NO. 3.736.448

1шт.
