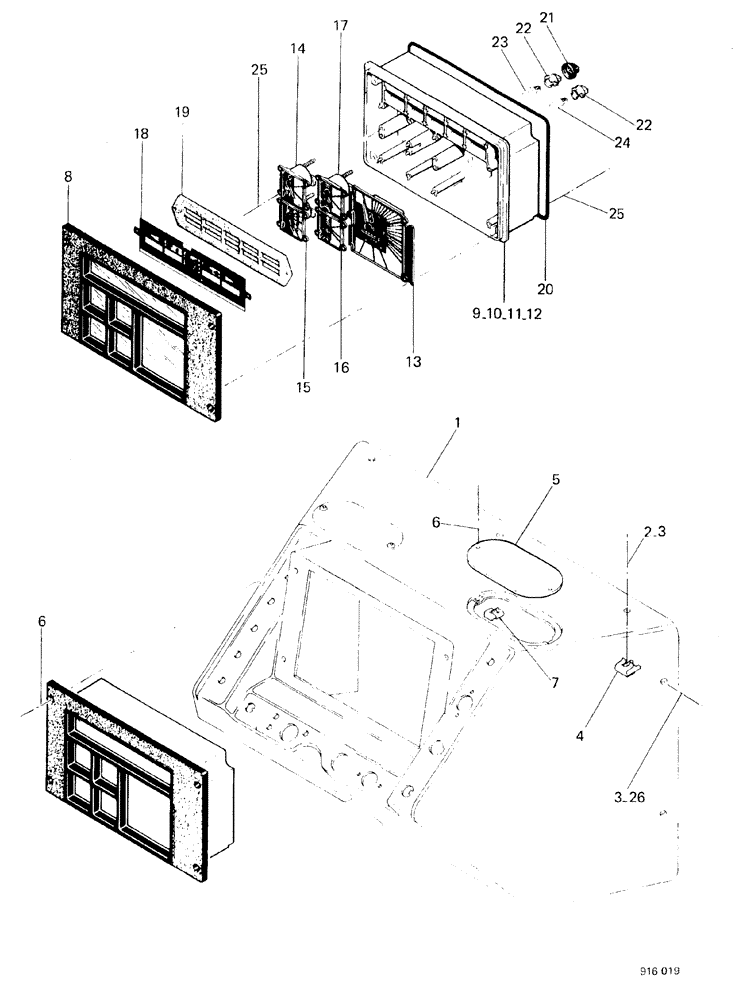

Запчасти Case 580F (044) - ELECTICAL INSTRUMENT PANEL (55) - ELECTRICAL SYSTEMS

1

E40334

PANEL instrument, order E41375

1шт.

1

E41375

PANEL

instrument

1шт.

2

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

7шт.

3

195-521

WASHER,5/16", SAE

7шт.

4

131-641

NUT

7шт.

5

D67695

COVER

not effective on units equipped with alarm signal device, see Figure 320, order D78247

2шт.

5

D78247

COVER

1шт.

6

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

8шт.

7

131-619

SPRING NUT,J, #10 - 24, 0.031" Thk

8шт.

D64276

CLUSTER

INSTRUMENT, torque converter

1шт.

D67149

CLUSTER

INSTRUMENT, dry clutch

1шт.

8

D71334

LENS

1шт.

D71335

CASE ASSY.

complete

1шт.

9

NSS

NOT SOLD SEPARAT

CASE

1шт.

10

NSS

NOT SOLD SEPARAT

BOARD circuit

1шт.

11

NSS

NOT SOLD SEPARAT

CLIP

12шт.

12

NSS

NOT SOLD SEPARAT

GASKET

1шт.

13

D71336

TACHOMETER

1шт.

14

D71337

ELECTRICAL GAUGE

1шт.

15

D71338

ELECTRICAL GAUGE

1шт.

16

D71339

VOLTMETER

GAUGE

1шт.

17

D71340

ELECTRICAL GAUGE

torque converter

1шт.

18

D71341

INDICATOR

LENS

1шт.

19

D71342

GASKET,3.05mm Thk

1шт.

20

D71343

GASKET,4.45mm Thk x 249.68mm ID

2шт.

21

D71344

COVER

BOOT rubber

3шт.

22

L35949

SOCKET/RECEPTACLE

9шт.

23

D71346

TAIL LAMP,12V

LAMP NO. 168

6шт.

24

W10478

LAMP

NO. 194

3шт.

25

164-15

HEX SOC SCREW,Flat Hd, #6 - 32 x 3/4"

4шт.

26

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.
