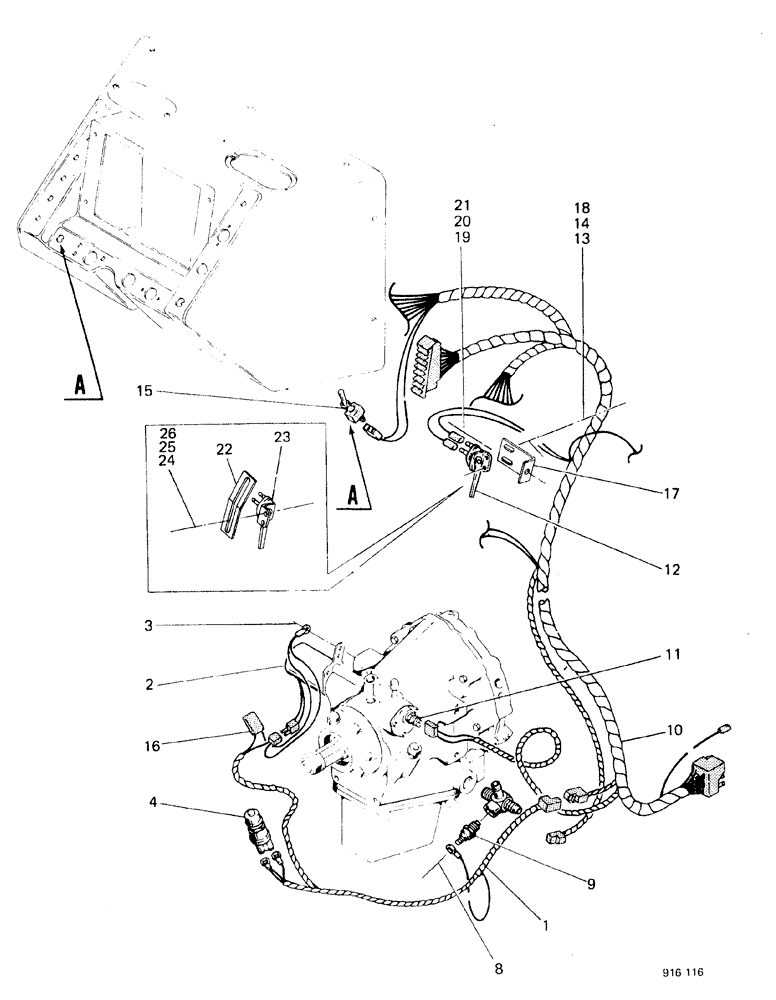

Запчасти Case 580F (042) - ELECTRICAL CIRCUITS AND CONNECTIONS, UP TO 3.736.447 (55) - ELECTRICAL SYSTEMS

1

D73855

HARNESS

1шт.

2

D67903

SOLENOID

1шт.

3

113-343

BOLT,Hex, 7/16" - 14 x 7/16", Gr 5, Full Thd

1шт.

4

D71139

SWITCH

1шт.

8

129-37

NUT,#10-32

1шт.

8

193-6

LOCK WASHER,Ext Tooth, #10

1шт.

9

D65446

SENDER UNIT

SENDER SENSOR

1шт.

10

REF

INSTRUCTION

HARNESS, torque converter, see Figure 040

1шт.

11

D72823

SWITCH

1шт.

12

A33977

SWITCH

1шт.

UP TO NO. 3.733.074, TORQUE CONVERTER

1шт.

13

182-143

SCREW,Cross Pan Hd, #10 - 32 x 3/8"

2шт.

UP TO NO. 3.733.074, TORQUE CONVERTER

1шт.

14

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

2шт.

UP TO NO. 3.733.074, TORQUE CONVERTER

1шт.

15

D67251

SWITCH

1шт.

16

L11760

DIODE

1шт.

17

D74275

BRACKET

1шт.

UP TO NO. 3.733.074, TORQUE CONVERTER

1шт.

18

195-13

WASHER,#10

2шт.

UP TO NO. 3.733.074, TORQUE CONVERTER

1шт.

19

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

UP TO NO. 3.733.074, TORQUE CONVERTER

1шт.

20

25-104

NUT,1/4"-20, G5

1шт.

UP TO NO. 3.733.074, TORQUE CONVERTER

1шт.

21

92-4

LOCK WASHER,1/4"

1шт.

UP TO NO. 3.733.074, TORQUE CONVERTER

1шт.

22

E35791

BRACKET

STRAP

1шт.

STARTING WITH NO. 3.733.075, TORQUE CONVERTER

1шт.

23

A33976

SWITCH

1шт.

STARTING WITH NO. 3.733.075, TORQUE CONVERTER

1шт.

24

182-528

SCREW,Sl Pan Hd, #10 - 32 x 1/2"

2шт.

STARTING WITH NO. 3.733.075, TORQUE CONVERTER

1шт.

25

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

2шт.

STARTING WITH NO. 3.733.075, TORQUE CONVERTER

1шт.

26

195-13

WASHER,#10

2шт.

STARTING WITH NO. 3.733.075, TORQUE CONVERTER

1шт.
