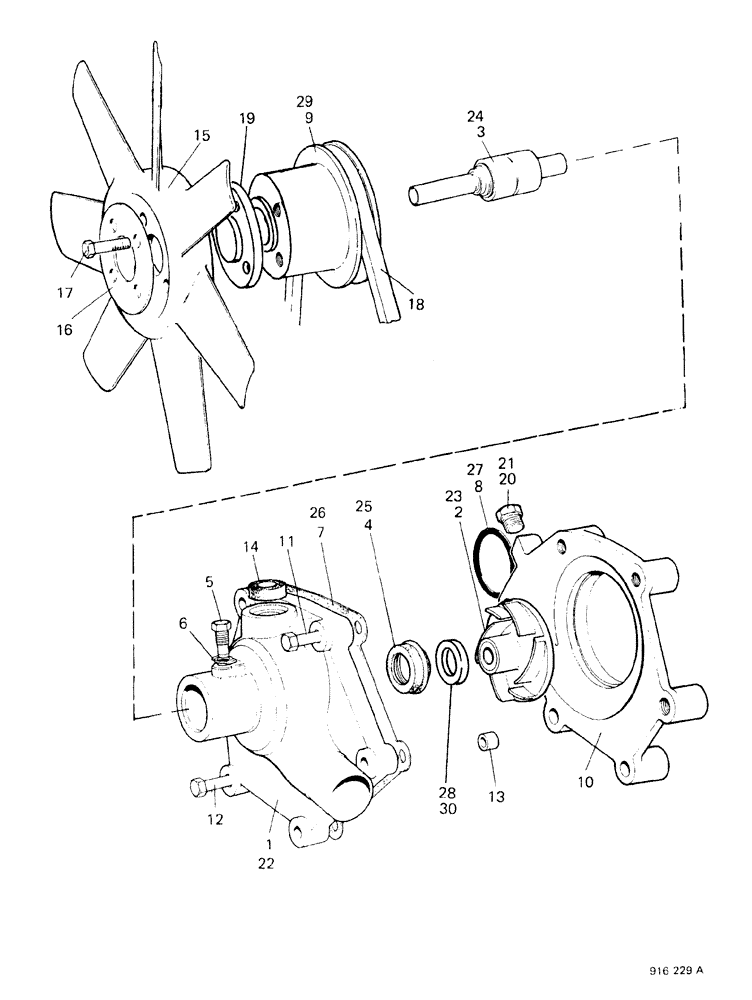

Запчасти Case 580F (010) - ENGINE WATER PUMP, UP TO NO 130914, DC AND 146995, TC (10) - ENGINE

K954288

PUMP

WATER ASSEMBLY, order K200679

1шт.

UP TO NO. 130791, DRY CLUTCH/NO. 145604, TORQUE CONVERTER

1шт.

1

K953439

HOUSING

BODY

1шт.

UP TO NO. 130791, DRY CLUTCH/NO. 145604, TORQUE CONVERTER

1шт.

2

K200748

IMPELLER

1шт.

Part of Water Pump Kit P/N K965848

1шт.

UP TO NO. 130791, DRY CLUTCH/NO. 145604, TORQUE CONVERTER

1шт.

3

K11651

BEARING

SHAFT

1шт.

Part of Water Pump Kit P/N K965848

1шт.

UP TO NO. 130791, DRY CLUTCH/NO. 145604, TORQUE CONVERTER

1шт.

4

K68949

SEAL

GLAND

1шт.

Part of Water Pump Kit P/N K965848

1шт.

UP TO NO. 130791, DRY CLUTCH/NO. 145604, TORQUE CONVERTER

1шт.

5

K946260

SCREW

location

1шт.

Part of Water Pump Kit P/N K965848

1шт.

UP TO NO. 130791, DRY CLUTCH/NO. 145604, TORQUE CONVERTER

1шт.

6

K11673

WASHER

TAB

1шт.

Part of Water Pump Kit P/N K965848

1шт.

UP TO NO. 130791, DRY CLUTCH/NO. 145604, TORQUE CONVERTER

1шт.

7

K942844

GASKET

1шт.

Part of Water Pump Kit P/N K965848

1шт.

UP TO NO. 130791, DRY CLUTCH/NO. 145604, TORQUE CONVERTER

1шт.

8

K24737

O-RING,0.139" Thk x 1.609" ID, -223, Cl 6, 90 Duro

1шт.

Part of Water Pump Kit P/N K965848

1шт.

UP TO NO. 130791, DRY CLUTCH/NO. 145604, TORQUE CONVERTER

1шт.

9

K942475

PULLEY

1шт.

Part of Water Pump Kit P/N K965848

1шт.

10

K942843

HOUSING

order K952667 + K623829 + K19500

1шт.

10

K952667

HOUSING

1шт.

11

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

4шт.

12

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

13

K31064

SLEEVE

DOWEL

2шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

6шт.

14

K915330

SEALING RING

SEAL rubber

1шт.

Part of Water Pump Kit P/N K965848

1шт.

Part of Water Pump Kit P/N K965860

1шт.

15

K921359

FAN

suction

1шт.

15

E81096

FAN

pusher

1шт.

16

K921361

SHIM

PLATE retaining, use with K921359

1шт.

17

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

Use with K921359

4шт.

17

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

SET, 3/8" x 1-1/4" NC, use with E81096

4шт.

192-21

LOCK WASHER,3/8"

4шт.

18

K952514

V-BELT

Fan

1шт.

19

K953379

BUSHING

SPARE PART SPACER, 11/16" thick, use with K921359

1шт.

19

E37837

FLANGE

SPACER, 7/16" thick, use with E81096

1шт.

20

K623829

PLUG

without heater

1шт.

21

K19500

GASKET

WASHER, without heater

1шт.

21a

K200822

PUMP

WATER ASSEMBLY, order K200679

1шт.

Part of Sump Frame Assembly PN K956076

1шт.

22

K956669

HOUSING

BODY

1шт.

STARTING WITH NO. 130792, DRY CLUTCH/ NO. 145605, TORQUE CONVERTER

1шт.

23

K200687

IMPELLER

1шт.

24

K620201

BEARING

SHAFT

1шт.

STARTING WITH NO. 130792, DRY CLUTCH/ NO. 145605, TORQUE CONVERTER

1шт.

Part of Water Pump Kit P/N K965860

1шт.

25

K200823

GLAND

seal

1шт.

STARTING WITH NO. 130792, DRY CLUTCH/ NO. 145605, TORQUE CONVERTER

1шт.

Part of Water Pump Kit P/N K965860

1шт.

26

K942844

GASKET

1шт.

STARTING WITH NO. 130792, DRY CLUTCH/ NO. 145605, TORQUE CONVERTER

1шт.

Part of Water Pump Kit P/N K965860

1шт.

27

K24737

O-RING,0.139" Thk x 1.609" ID, -223, Cl 6, 90 Duro

1шт.

STARTING WITH NO. 130792, DRY CLUTCH/ NO. 145605, TORQUE CONVERTER

1шт.

Part of Water Pump Kit P/N K965860

1шт.

28

K200821

RING

1шт.

STARTING WITH NO. 130792, DRY CLUTCH/ NO. 145605, TORQUE CONVERTER

1шт.

Part of Water Pump Kit P/N K965860

1шт.

29

K942475

PULLEY

1шт.

STARTING WITH NO. 130792, DRY CLUTCH/ NO. 145605, TORQUE CONVERTER

1шт.

30

K200594

RING

1шт.

Part of Water Pump Kit P/N K965848

1шт.

UP TO NO. 130791, DRY CLUTCH/NO. 145604, TORQUE CONVERTER

1шт.

30a

K965848

PACKAGE, REPAIR

KIT water pump, Includes: Ref. 2 - 8, 14 and 30

1шт.

UP TO NO. 130791, DRY CLUTCH/NO. 145604, TORQUE CONVERTER

1шт.

30b

K965860

KIT

water pump, Includes: Ref. 14 and 24 - 28

1шт.

STARTING WITH NO. 130792, DRY CLUTCH/ NO. 145605, TORQUE CONVERTER

1шт.
