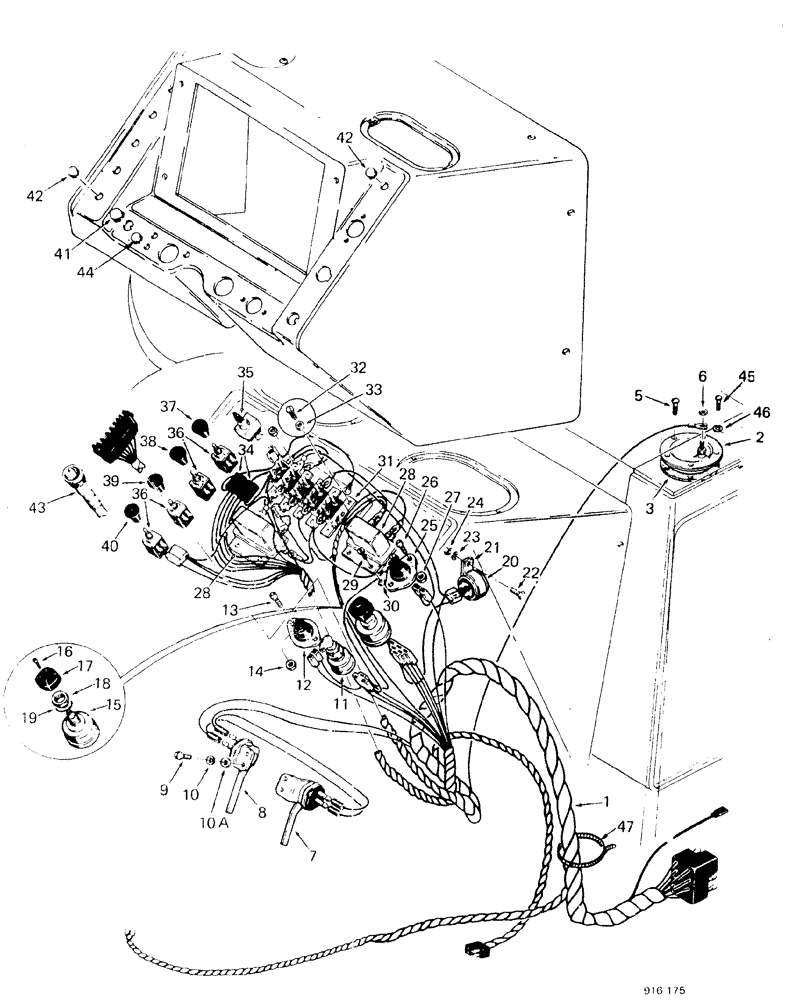

Запчасти Case 580F (040) - ELECTICAL, INSTRUMENT PANEL, STARTING WITH NO 3.736.447 (55) - ELECTRICAL SYSTEMS

1

D73564

HARNESS

SPARE PART dry clutch

1шт.

UP TO NO. 3.702.189, DRY CLUTCH/NO. 3.734.030, TORQUE CONVERTER

1шт.

1

E36080

HARNESS

dry clutch

1шт.

STARTING WITH NO. 3.702.190, DRY CLUTCH/NO. 3.734.031, TORQUE CONVERTER

1шт.

1

D73563

HARNESS

SPARE PART torque converter

1шт.

UP TO NO. 3.702.189, DRY CLUTCH/NO. 3.734.030, TORQUE CONVERTER

1шт.

1

E36081

HARNESS

SPARE PART torque converter

1шт.

STARTING WITH NO. 3.702.190, DRY CLUTCH/NO. 3.734.031, TORQUE CONVERTER

1шт.

2

D63293

SENDER UNIT

SENDER SENSOR

1шт.

3

A11822

GASKET

1шт.

5

D75465

SCREW,#10 - 32 x 5/8"

4шт.

6

129-37

NUT,#10-32

1шт.

6

193-6

LOCK WASHER,Ext Tooth, #10

1шт.

7

A33977

SWITCH

stop, left-hand

1шт.

8

A33976

SWITCH

stop, right-hand

1шт.

9

182-144

SCREW

4шт.

10

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

4шт.

10a

195-13

WASHER,#10

4шт.

11

D67148

SWITCH

key starting

1шт.

D36822

KEY

2шт.

E37999

KEY

for Germany only

2шт.

12

D67872

SWITCH

BUTTON starter

1шт.

13

182-528

SCREW,Sl Pan Hd, #10 - 32 x 1/2"

2шт.

14

129-37

NUT,#10-32

2шт.

14

193-6

LOCK WASHER,Ext Tooth, #10

2шт.

15

D52008

SWITCH

turn signal

1шт.

16

A20468

SCREW,Spcl, #8 - 32 x 5/16"

1шт.

17

A20465

KNOB

1шт.

18

A20467

NUT

1шт.

19

193-35

LOCK WASHER,Int Tooth, 3/4"

1шт.

20

A65550

FLASHER UNIT

not effective on units equipped with alarm signal, see Figure 338

1шт.

21

A34868

CLAMP

1шт.

22

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

23

92-5

LOCK WASHER,5/16"

1шт.

24

9635082

NUT,5/16" - 18, Gr 5

1шт.

25

D67872

SWITCH

BUTTON

1шт.

26

182-528

SCREW,Sl Pan Hd, #10 - 32 x 1/2"

2шт.

27

129-37

NUT,#10-32

2шт.

27

193-6

LOCK WASHER,Ext Tooth, #10

2шт.

28

L11508

RELAY

2шт.

29

182-528

SCREW,Sl Pan Hd, #10 - 32 x 1/2"

4шт.

30

129-37

NUT,#10-32

4шт.

30

193-6

LOCK WASHER,Ext Tooth, #10

4шт.

31

L11342

BREAKER

circuit

5шт.

32

182-528

SCREW,Sl Pan Hd, #10 - 32 x 1/2"

10шт.

33

129-37

NUT,#10-32

20шт.

33

193-6

LOCK WASHER,Ext Tooth, #10

20шт.

34

L11760

DIODE

2шт.

35

D67743

SWITCH

tell tale

1шт.

36

D74330

SWITCH

light

4шт.

37

D70448

KNOB

1шт.

38

D70447

KNOB

1шт.

39

D70446

KNOB

1шт.

40

D70445

KNOB

1шт.

41

353-404

PLUG,Dome, .500" hole, Nylon

Dry clutch

1шт.

42

353-402

PLUG,Dome, .375" hole, Nylon

2шт.

43

D68716

CABLE

1шт.

44

353-401

PLUG,Dome, .312" hole, Nylon

3шт.

45

182-143

SCREW,Cross Pan Hd, #10 - 32 x 3/8"

1шт.

46

92-3

LOCK WASHER,#10

1шт.

47

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP Clamp

1шт.
