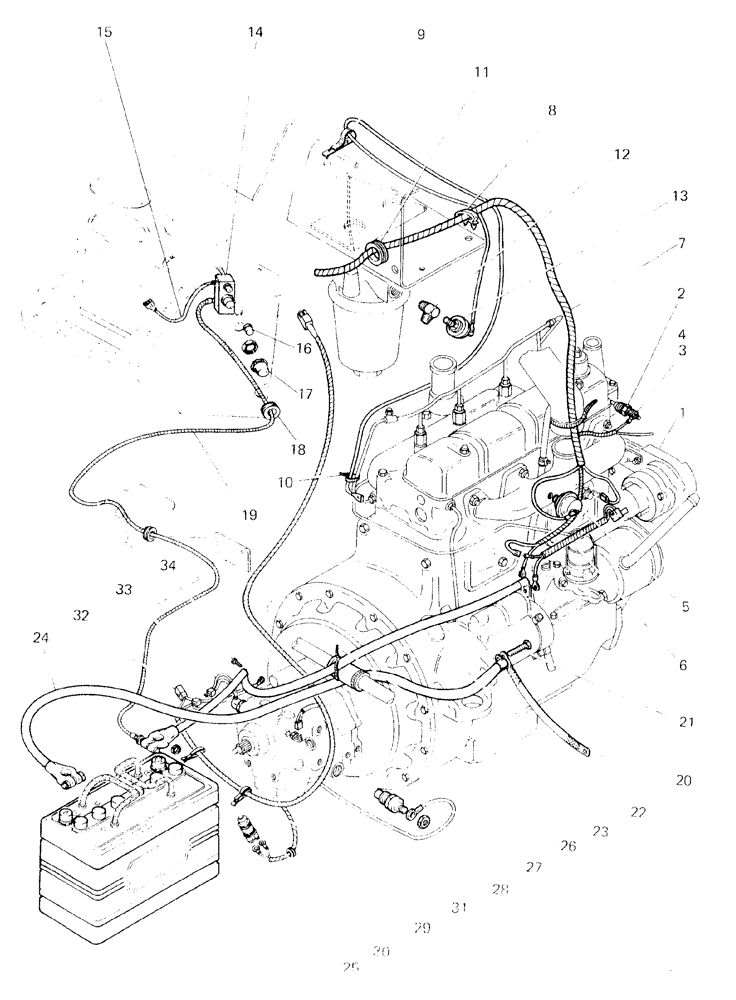

Запчасти Case 580F (039A) - ELECTRICAL STARTER, BATTERY AND CONNECTIONS, STARTING WITH NO 3.736.448 (55) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

ALTERNATOR, see Figure 030

1шт.

2

D70089

TRANSMITTER

SENSOR

1шт.

3

193-6

LOCK WASHER,Ext Tooth, #10

1шт.

4

129-37

NUT,#10-32

1шт.

5

D67721

SWITCH

1шт.

5

K952374

ADAPTER

1шт.

5

K19504

WASHER,9.92mm ID x 14.29mm OD x 2mm Thk

1шт.

6

E40269

HARNESS

1шт.

7

REF

INSTRUCTION

HARNESS main, see Figure 040 Ref. 1

1шт.

8

E40320

CLAMP

1шт.

9

E40319

CLAMP

1шт.

10

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP CLAMP

1шт.

11

E38764

GROMMET

SPARE PART

1шт.

12

D65646

FITTING

ELBOW, 90°

1шт.

13

D65458

SWITCH

used with D73910 filter only, see Figure 226

1шт.

13

D87439

SWITCH

used with D84789 filter only, see Figure 226

1шт.

14

E40308

SWITCH

BREAKER circuit, 20 amp

1шт.

15

E40267

ELECTRICAL WIRE

SPARE PART

1шт.

16

E40337

BUTTON

without cab

1шт.

17

E40336

BUTTON

without cab

1шт.

18

E33336

GROMMET

2шт.

19

E40270

ELECTRICAL WIRE

WIRE

1шт.

20

D73383

STRAP

GROUND cable

1шт.

21

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

1шт.

21

192-21

LOCK WASHER,3/8"

1шт.

22

E41050

CABLE

battery

1шт.

23

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP Clamp

2шт.

24

D67819

CABLE

battery

1шт.

25

K952486

BATTERY

96 Ah

1шт.

25

K952487

BATTERY

128 Ah

1шт.

26

D65446

SENDER UNIT

SENDER SENSOR, torque converter

1шт.

27

129-37

NUT,#10-32

Torque converter

1шт.

28

E40275

HARNESS

torque converter

1шт.

29

E11200

GROMMET

torque converter

1шт.

30

D71139

SWITCH

torque converter

1шт.

31

E40319

CLAMP

torque converter

2шт.

31

E40319

CLAMP

dry clutch

1шт.

32

L11760

DIODE

torque converter

1шт.

33

D67903

SOLENOID

torque converter

1шт.

34

113-343

BOLT,Hex, 7/16" - 14 x 7/16", Gr 5, Full Thd

1шт.
