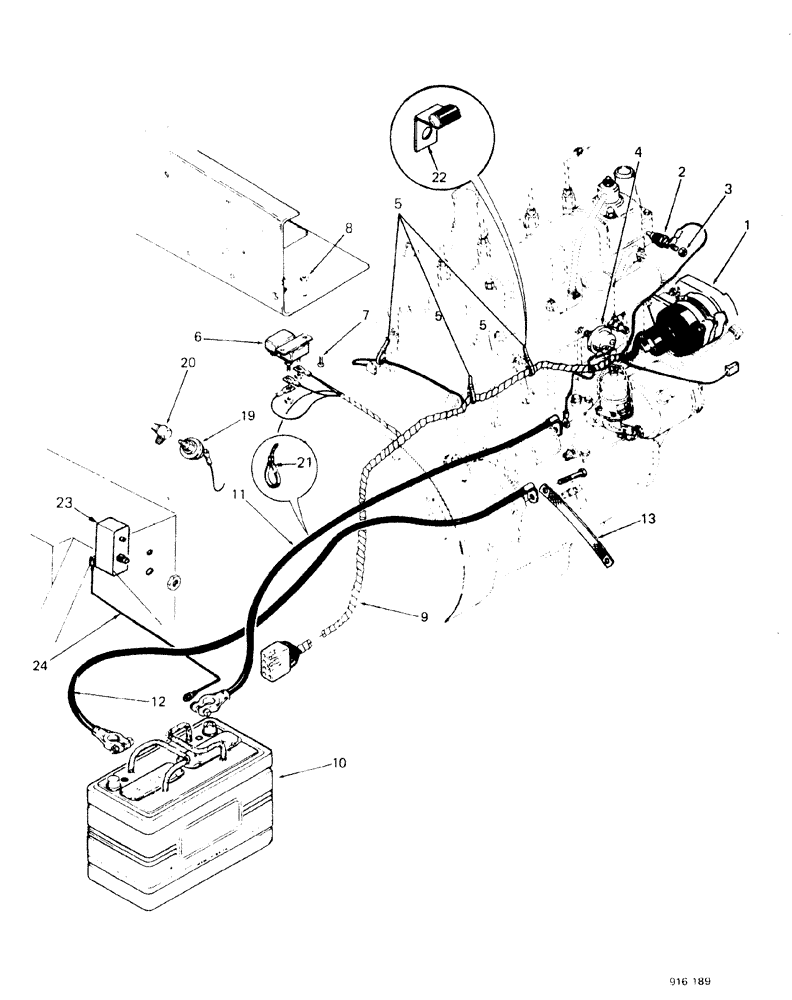

Запчасти Case 580F (038) - ELECTICAL STARTER AND BATTERY, UP TO NO 3.736.447 (55) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

ALTERNATOR, see Figure 036

1шт.

2

D70089

TRANSMITTER

SENSOR

1шт.

3

129-37

NUT,#10-32

1шт.

3

193-6

LOCK WASHER,Ext Tooth, #10

1шт.

4

D67721

SWITCH

1шт.

K952374

ADAPTER

1шт.

K19504

WASHER,9.92mm ID x 14.29mm OD x 2mm Thk

1шт.

5

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

4шт.

6

A59704

BREAKER

1шт.

7

182-528

SCREW,Sl Pan Hd, #10 - 32 x 1/2"

2шт.

8

193-1000

NUT,Keps, w/LW,#10-32

2шт.

9

D67752

HARNESS

SPARE PART

1шт.

10

K952486

BATTERY

96 Ah

1шт.

10

K952487

BATTERY

128 Ah

1шт.

11

D67820

CABLE

order E40323

1шт.

11

E40323

CABLE

1шт.

12

D67819

CABLE

1шт.

13

D73383

STRAP

CABLE

1шт.

19

D65458

SWITCH

1шт.

20

D65646

FITTING

ELBOW, 90°

1шт.

21

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP Clamp

2шт.

22

E38523

CLAMP, if used

2шт.

23

REF

INSTRUCTION

BREAKER circuit, see Figure 039B

1шт.

24

E40116

WIRE, if used

1шт.

E41082

GUARD ASSY.

SHEATH, for wire Ref. 6

1шт.

E40150

LOOM

SPARE PART SHEATH, for Ref. 11

1шт.
