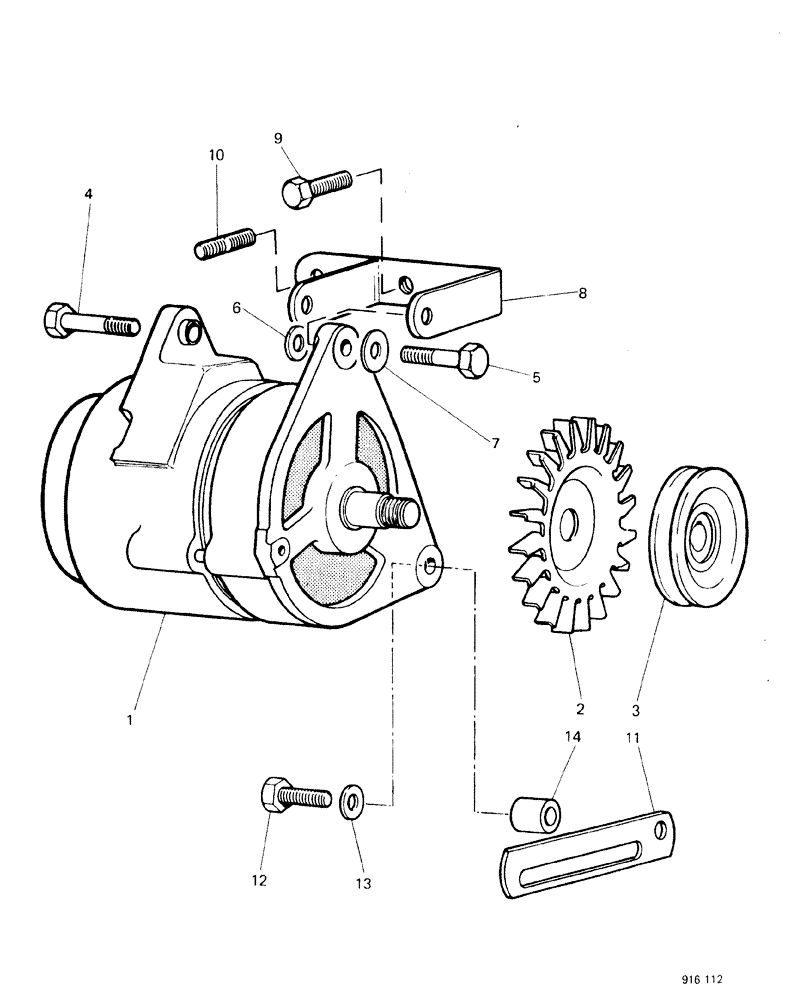

Запчасти Case 580F (036) - ALTERNATOR (55) - ELECTRICAL SYSTEMS

1

K949717

ALTERNATOR

order K956446 + 813-8020

1шт.

1

K956446

ALTERNATOR

1шт.

1

92293C1

ALTERNATOR

Alternator, 12V, 45 Amp, W/Fan and Pulley

1шт.

1

92293C1R

REMAN-ALTERNATOR

Reman For New PN 92293C1

1шт.

1

92293C1C

CORE-ALTERNATOR

Return Number

1шт.

1

92293C1GV

ALTERNATOR

Value, 12 Volt, 45 Amp, W/ Fan and Pulley

1шт.

2

K942129

FAN

1шт.

3

K952702

PULLEY

1шт.

4

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

5

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

1шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

6

K19471

WASHER

1шт.

7

K626916

WASHER

special

1шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

2шт.

8

K947375

SUPPORT

BRACKET mounting

1шт.

9

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

SET

1шт.

10

K608235

STUD

1шт.

25-106

NUT,3/8"-16, G5

1шт.

192-21

LOCK WASHER,3/8"

2шт.

11

K951676

STRAP

1шт.

12

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

SET, 5/16" x 7/8"

1шт.

12

813-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

Set

1шт.

13

K626916

WASHER

special

1шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

1шт.

14

K627028

BUSHING

SPACER

1шт.

K947548

DECAL

1шт.
