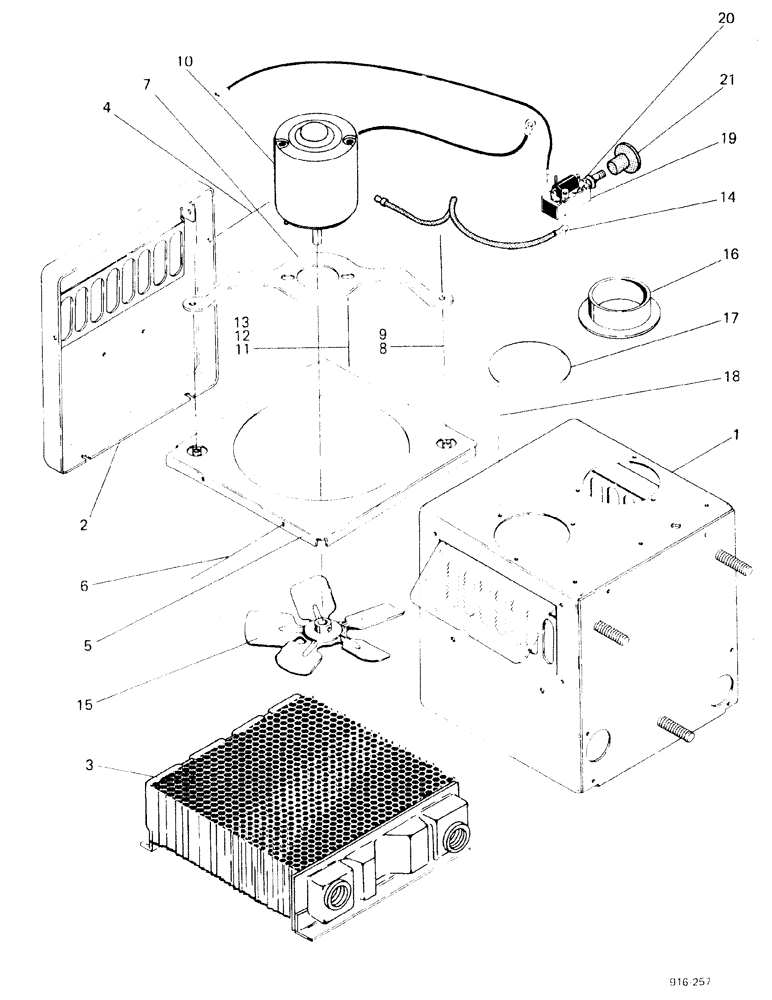

Запчасти Case 580F (322) - CAB HEATER ASSEMBLY (50) - CAB CLIMATE CONTROL

E35269

HEATER complete, order D75350, 1 + 221-160, 2 221-376, 2

1шт.

UP TO NO. 3.701.768, DRY CLUTCH/NO. 3.731.702, TORQUE CONVERTER

1шт.

D75350

HEATER

complete

1шт.

STARTING WITH NO. 3.701.769, DRY CLUTCH/NO. 3.731.703, TORQUE CONVERTER

1шт.

1

L33828

SHELL

SPARE PART HOUSING

1шт.

2

L33834

COVER

1шт.

3

D77493

HEATER

CORE

1шт.

4

L33838

SELF-TAP SCREW,#8 - 15 x 1/2"

6шт.

5

L33830

PLATE

1шт.

6

L33838

SELF-TAP SCREW,#8 - 15 x 1/2"

4шт.

7

L33831

BRACKET

SPARE PART

1шт.

8

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

2шт.

9

193-70

LOCK WASHER,Ext-Int Tooth, #10

2шт.

10

D71502

MOTOR, ELECTRIC

SPARE PART

1шт.

11

195-13

WASHER,#10

2шт.

12

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

2шт.

13

129-37

NUT,#10-32

2шт.

14

L33835

SPARE PART

1шт.

15

L33832

FAN

1шт.

16

L33837

COLLAR

1шт.

17

L50606

COVER

COLLAR

1шт.

18

L33838

SELF-TAP SCREW,#8 - 15 x 1/2"

6шт.

19

REF

INSTRUCTION

SWITCH, see Figure 316

1шт.

20

REF

INSTRUCTION

NUT, see Figure 316

1шт.

21

REF

INSTRUCTION

KNOB, see Figure 316

1шт.
