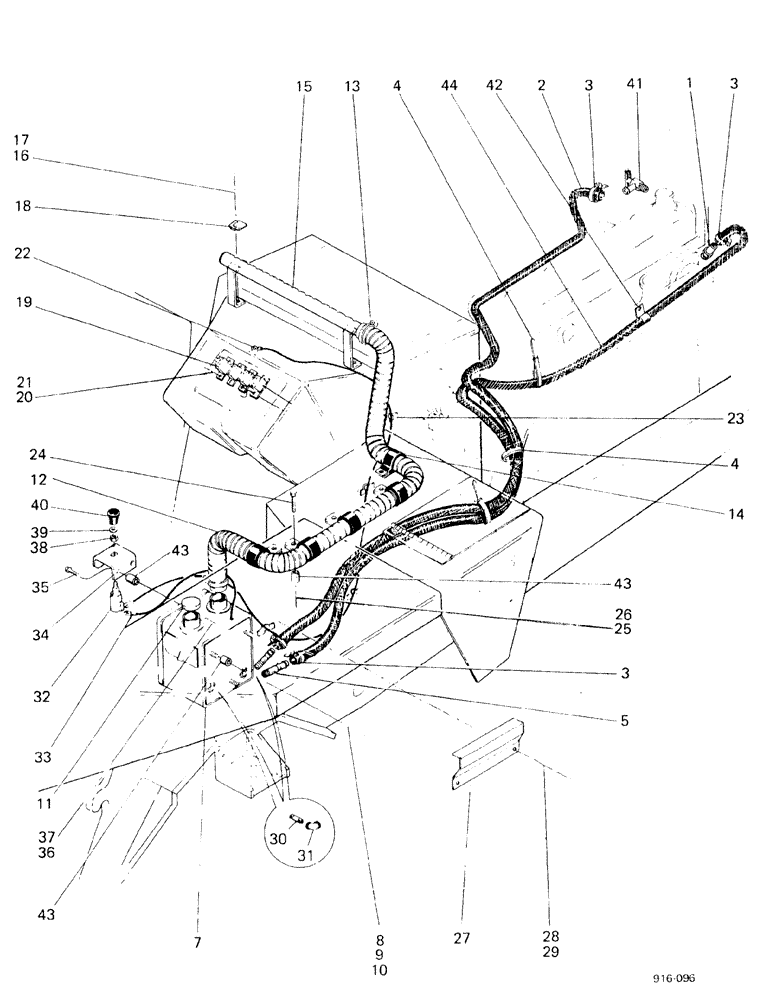

Запчасти Case 580F (318) - CAB, HEATER AND DEFROSTER, STARTING WITH NO 3.701.927, UP TO NO. 3.736.447, STARTING WITH NO. 3.732 (50) - CAB CLIMATE CONTROL

1

D76514

FITTING

ELBOW

1шт.

2

D76742

TUBE

SPARE PART HOSE

1шт.

3

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

4шт.

4

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

5шт.

5

D65132

FITTING

NIPPLE

2шт.

7

REF

INSTRUCTION

HEATER complete, see Figure 322

1шт.

8

121-16

NUT

3шт.

9

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

3шт.

10

195-511

WASHER,#10

3шт.

11

L50606

COVER

1шт.

12

D71086

LOOM

SPARE PART HOSE

1шт.

13

214-259

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm

2шт.

14

E35505

CLAMP

SPARE PART

5шт.

15

D71083

DIFFUSER

SPARE PART

1шт.

16

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

17

195-521

WASHER,5/16", SAE

2шт.

18

131-637

SPRING NUT,Ret, J, 5/16"-18

2шт.

19

D37252

BREAKER

1шт.

20

182-86

SCREW,Slotted Pan Hd, #8-32 x 1/2"

2шт.

21

129-37

NUT,#10-32

2шт.

21

193-6

LOCK WASHER,Ext Tooth, #10

2шт.

22

D71131

ELECTRICAL WIRE

WIRE

1шт.

23

F93268

CLIP

4шт.

24

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

CAP

4шт.

25

192-21

LOCK WASHER,3/8"

4шт.

UP TO NO. 3.702.077, DRY CLUTCH/NO. 3.733.460, TORQUE CONVERTER

1шт.

25

192-21

LOCK WASHER,3/8"

1шт.

STARTING WITH NO. 3.702.078, DRY CLUTCH/NO. 3.733.461, TORQUE CONVERTER

1шт.

26

129-103

NUT,Hex, 3/8" - 16, Gr 5

4шт.

UP TO NO. 3.702.077, DRY CLUTCH/NO. 3.733.460, TORQUE CONVERTER

1шт.

26

129-103

NUT,Hex, 3/8" - 16, Gr 5

1шт.

STARTING WITH NO. 3.702.078, DRY CLUTCH/NO. 3.733.461, TORQUE CONVERTER

1шт.

26

131-643

NUT

3шт.

STARTING WITH NO. 3.702.078, DRY CLUTCH/NO. 3.733.461, TORQUE CONVERTER

1шт.

27

E35284

GUARD ASSY.

1шт.

E35283

FOAM

1шт.

28

192-21

LOCK WASHER,3/8"

2шт.

29

129-103

NUT,Hex, 3/8" - 16, Gr 5

2шт.

30

221-160

FITTING

CONNECTOR

2шт.

31

221-376

ELBOW,90 Degree, 3/8" NPT

ELBOW

2шт.

32

F21304

BLOWER SWITCH

1шт.

33

223-59

TERMINAL CONNECTOR

1шт.

34

D71150

BRACKET

1шт.

35

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

CAP

2шт.

36

192-21

LOCK WASHER,3/8"

2шт.

37

129-103

NUT,Hex, 3/8" - 16, Gr 5

2шт.

38

129-122

NUT,5/16"-24, G5

1шт.

39

195-103

WASHER,5/16"

1шт.

40

D71503

KNOB

1шт.

41

A16764

VALVE

1шт.

42

49831

CLAMP

1шт.

43

D73049

BUSHING

SPACER

9шт.

44

D76670

LARGE HOSE

SPARE PART

1шт.
