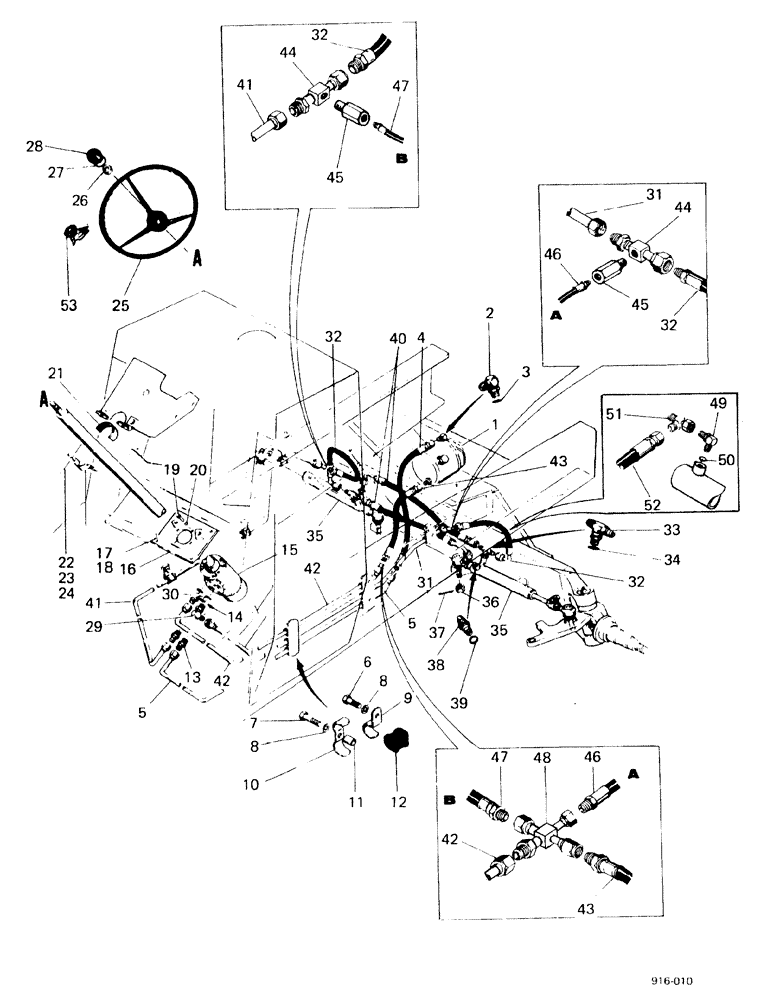

Запчасти Case 580F (368) - POWER STEERING, FOR GERMANY (41) - STEERING

1

REF

INSTRUCTION

PUMP, see Figure 128

1шт.

2

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

ELBOW, 90°

1шт.

3

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Seal

1шт.

4

E35142

HOSE

1шт.

5

D68897

TUBE

1шт.

6

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

3шт.

7

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

5шт.

8

92-6

LOCK WASHER,3/8"

8шт.

9

D68638

CLAMP

3шт.

10

D68646

CLAMP

5шт.

11

D71789

BUSHING

SPACER

5шт.

12

D67296

GROMMET

rubber

10шт.

13

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

3шт.

14

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Seal

1шт.

15

REF

INSTRUCTION

PUMP, see Figure 130

1шт.

16

D71705

SUPPORT

PLATE

1шт.

17

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

CAP

2шт.

17

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

18

92-6

LOCK WASHER,3/8"

4шт.

19

166-23

12 PT SCREW,Flg, 5/16" - 18 x 5/8", Gr 8

4шт.

20

92-5

LOCK WASHER,5/16"

4шт.

21

D66844

PADDING

BUSHING

1шт.

22

D66646

CLAMP

STRAP

1шт.

23

92-5

LOCK WASHER,5/16"

2шт.

24

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

CAP

2шт.

25

A65544

STEERING WHEEL

1шт.

26

A14567

JAM NUT

1шт.

27

D26115

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

SEAL

1шт.

28

A62210

PLUG

COVER

1шт.

29

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

ELBOW, 90°

1шт.

30

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Seal

1шт.

31

E34985

TUBE

1шт.

UP TO NO. 3.732.077

1шт.

31

D76189

TUBE

1шт.

STARTING WITH NO. 3.732.078

1шт.

32

E35141

HOSE

2шт.

UP TO NO. 3.732.077

1шт.

32

E35744

HOSE

2шт.

STARTING WITH NO. 3.732.078

1шт.

33

218-5182

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

2шт.

34

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Seal

1шт.

35

REF

INSTRUCTION

CYLINDER, see Figure 134

2шт.

36

25-1310

SLOTTED NUT,5/8"-18, G5

4шт.

37

132-50

COTTER PIN,1/8" x 1 1/4"

4шт.

38

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

2шт.

39

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Seal

1шт.

40

E35140

HOSE ASSY.

2шт.

UP TO NO. 3.732.077

1шт.

41

E34986

SPARE PART

TUBE

1шт.

UP TO NO. 3.732.077

1шт.

41

D76191

TUBE

1шт.

STARTING WITH NO. 3.732.078

1шт.

42

D68895

TUBE

SPARE PART

1шт.

43

E35143

HOSE

1шт.

44

E34798

CONNECTOR, ELEC

CONNECTOR

2шт.

45

E34982

VALVE

CONNECTOR

2шт.

46

E34984

HOSE

1шт.

47

E34983

HOSE

SPARE PART

1шт.

48

E34797

CONNECTOR, ELEC

CONNECTOR

1шт.

49

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90°

2шт.

STARTING WITH NO. 3.732.078

1шт.

50

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Seal

1шт.

51

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

Connector

2шт.

STARTING WITH NO. 3.732.078

1шт.

52

E35743

HOSE

2шт.

STARTING WITH NO. 3.732.078

1шт.

53

E35132

KNOB

steering

1шт.
