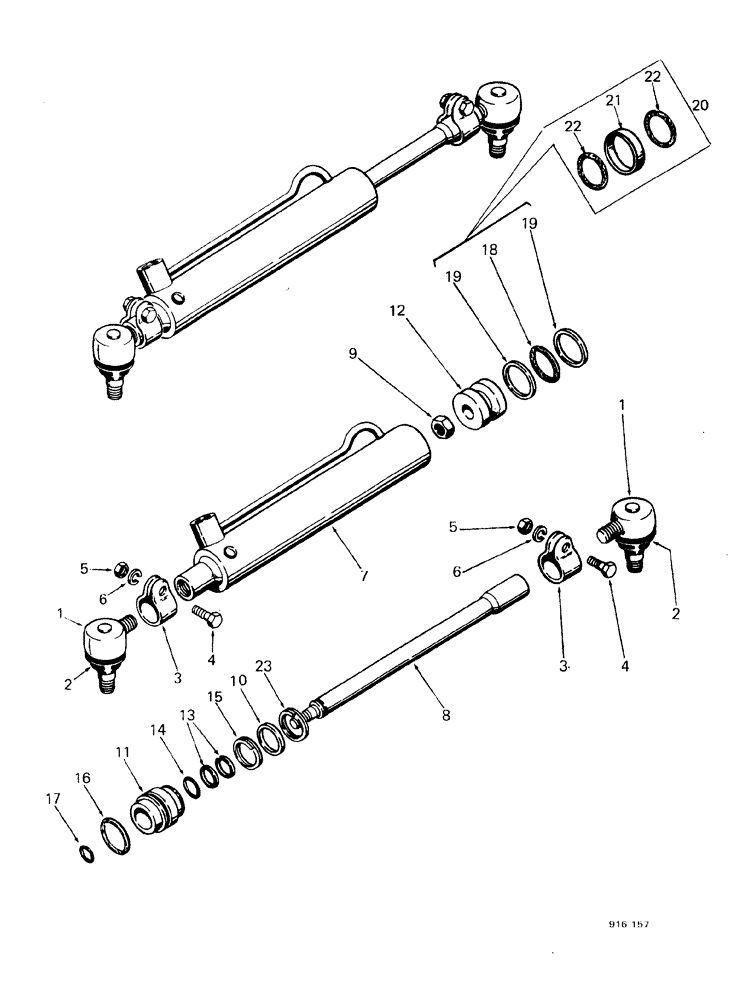

Запчасти Case 580F (134) - STEERING CYLINDER, UP TO NO 3.736.936 (41) - STEERING

D65385

CYLINDER

order A137503 or D84800, see Figure 134B

2шт.

A137503

CYLINDER

2шт.

234466A1R

REMAN-HYD CYLINDER

580F BEFORE S/N 3739160 (EUROPE), Reman For New P/N A137503

2шт.

234466A1C

CORE-HYD CYLINDER

Return Number

1шт.

1

A40962

BALL JOINT

2шт.

2

A41424

SEAL

BOOT

1шт.

3

A27080

CLAMP

2шт.

4

14-624

BOLT,Hex, 3/8" - 24 x 1-1/2", Gr 5

CAPSCREW

1шт.

5

25-116

NUT,Hex, 3/8"-24, G5

1шт.

6

92-6

LOCK WASHER,3/8"

1шт.

7

NSS

NOT SOLD SEPARAT

TUBE

1шт.

8

A44642

ROD

1шт.

9

131-1145

JAM NUT,5/8" - 18

1шт.

10

A44641

SPACER,31.62mm ID x 34.37mm OD x 7.7mm L

SPACER

1шт.

11

A44639

GLAND

complete

1шт.

12

A44640

PISTON

1шт.

E38203

KIT

1шт.

A44644

SEAL KIT

order E38203

1шт.

13

NSS

NOT SOLD SEPARAT

WIPER

2шт.

14

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

SEAL

1шт.

15

NSS

NOT SOLD SEPARAT

RING

1шт.

16

A41184

O-RING,1.234" ID x 1.512" OD x 0.139"

SEAL

1шт.

17

A30097

O-RING,0.549" ID x 0.755" OD x 0.103"

SEAL

1шт.

18

A27577

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

SEAL, order E38145

1шт.

19

NSS

NOT SOLD SEPARAT

RING, order E38145

2шт.

20

E38145

GASKET KIT

1шт.

21

NSS

NOT SOLD SEPARAT

RING

1шт.

22

NSS

NOT SOLD SEPARAT

SEAL

2шт.

23

A44654

SNAP RING,#125, 1.188", Ext Spiral

RING

1шт.
