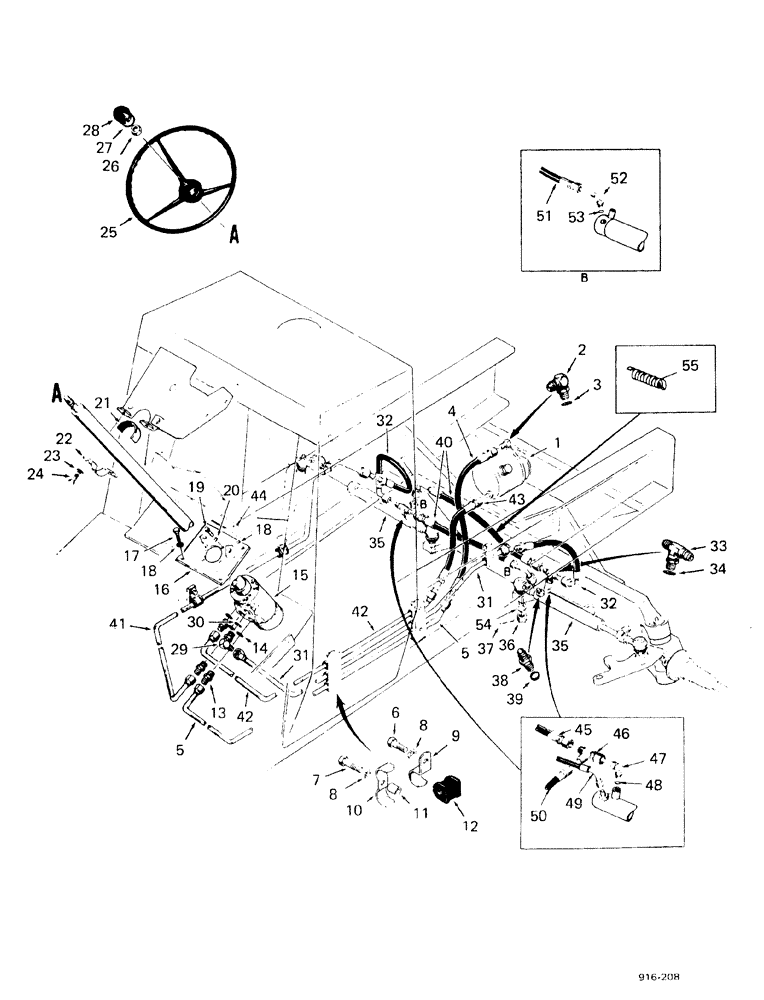

Запчасти Case 580F (126) - POWER STEERING (41) - STEERING

1

REF

INSTRUCTION

PUMP, see Figure 128

1шт.

2

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

ELBOW, 90°

1шт.

3

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Seal

1шт.

4

D64605

HOSE

1шт.

5

D68897

TUBE

1шт.

6

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

3шт.

7

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

5шт.

8

92-6

LOCK WASHER,3/8"

8шт.

9

D68638

CLAMP

3шт.

10

D68646

CLAMP

5шт.

11

D71789

BUSHING

SPACER

5шт.

12

D67296

GROMMET

rubber

10шт.

13

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

3шт.

14

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Seal

1шт.

15

REF

INSTRUCTION

PUMP, see Figure 130

1шт.

16

D71705

SUPPORT

PLATE

1шт.

17

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

CAP

2шт.

18

92-6

LOCK WASHER,3/8"

4шт.

19

166-23

12 PT SCREW,Flg, 5/16" - 18 x 5/8", Gr 8

4шт.

20

92-5

LOCK WASHER,5/16"

4шт.

21

D66844

PADDING

BUSHING

1шт.

22

D66646

CLAMP

STRAP

1шт.

23

92-5

LOCK WASHER,5/16"

2шт.

24

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

CAP

2шт.

25

A65544

STEERING WHEEL

1шт.

26

A14567

JAM NUT

1шт.

27

D26115

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

SEAL

1шт.

28

A62210

PLUG

COVER

1шт.

29

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

ELBOW, 90°

1шт.

30

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Seal

1шт.

31

D68893

TUBE

TUBE

1шт.

UP TO NO. 3.701.924, DRY CLUTCH/NO. 3.732.440, TORQUE CONVERTER

1шт.

31

D76189

TUBE

1шт.

STARTING WITH NO. 3.701.925, DRY CLUTCH/NO. 3.732.441, TORQUE CONVERTER

1шт.

32

D62390

HOSE,9.53mm ID x 508mm L, SAE 100R1

2шт.

UP TO NO. 3.701.924, DRY CLUTCH/NO. 3.732.440, TORQUE CONVERTER

1шт.

33

218-5182

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

2шт.

UP TO NO. 3.701.924, DRY CLUTCH/NO. 3.732.440, TORQUE CONVERTER

1шт.

34

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Seal

1шт.

35

REF

INSTRUCTION

CYLINDER, see Figure 134

2шт.

36

25-1310

SLOTTED NUT,5/8"-18, G5

4шт.

STARTING WITH NO. 3.701.925, DRY CLUTCH/NO. 3.732.441, TORQUE CONVERTER

1шт.

37

132-50

COTTER PIN,1/8" x 1 1/4"

4шт.

38

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

2шт.

UP TO NO. 3.702.224, DRY CLUTCH/NO. 3.734.571, TORQUE CONVERTER

1шт.

39

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Seal

1шт.

40

D68709

HOSE

1шт.

UP TO NO. 3.701.924, DRY CLUTCH/NO. 3.732.440, TORQUE CONVERTER

1шт.

41

D68891

PIPE

TUBE

1шт.

UP TO NO. 3.701.924, DRY CLUTCH/NO. 3.732.440, TORQUE CONVERTER

1шт.

41

D76191

TUBE

1шт.

STARTING WITH NO. 3.701.925, DRY CLUTCH/NO. 3.732.441, TORQUE CONVERTER

1шт.

42

D68895

TUBE

SPARE PART

1шт.

43

D68881

HOSE

1шт.

44

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

45

D76036

HOSE

order E37439 + 218-5105

1шт.

STARTING WITH NO. 3.701.925, DRY CLUTCH/NO. 3.732.441, TORQUE CONVERTER

1шт.

UP TO NO. 3.702.224, DRY CLUTCH/NO. 3.734.571, TORQUE CONVERTER

1шт.

46

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

Connector

2шт.

STARTING WITH NO. 3.701.925, DRY CLUTCH/NO. 3.732.441, TORQUE CONVERTER

1шт.

47

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90°

2шт.

STARTING WITH NO. 3.701.925, DRY CLUTCH/NO. 3.732.441, TORQUE CONVERTER

1шт.

48

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Seal

1шт.

STARTING WITH NO. 3.701.925, DRY CLUTCH/NO. 3.732.441, TORQUE CONVERTER

1шт.

49

D76036

HOSE

order E37439 + 218-5105

1шт.

STARTING WITH NO. 3.701.925, DRY CLUTCH/NO. 3.732.441, TORQUE CONVERTER

1шт.

UP TO NO. 3.702.224, DRY CLUTCH/NO. 3.734.571, TORQUE CONVERTER

1шт.

50

D76049

HOSE

2шт.

STARTING WITH NO. 3.701.925, DRY CLUTCH/NO. 3.732.441, TORQUE CONVERTER

1шт.

51

E37439

HOSE

2шт.

52

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

9O°

2шт.

STARTING WITH NO. 3.702.225, DRY CLUTCH/NO. 3.734.572, TORQUE CONVERTER

1шт.

53

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Seal

1шт.

STARTING WITH NO. 3.702.225, DRY CLUTCH/NO. 3.734.572, TORQUE CONVERTER

1шт.

54

195-2074

WASHER,11/16" x 1 1/4" x .134"

2шт.

55

REF

INSTRUCTION

HOSE protection, for 4 wheel-drive see sumplement E40908

2шт.
