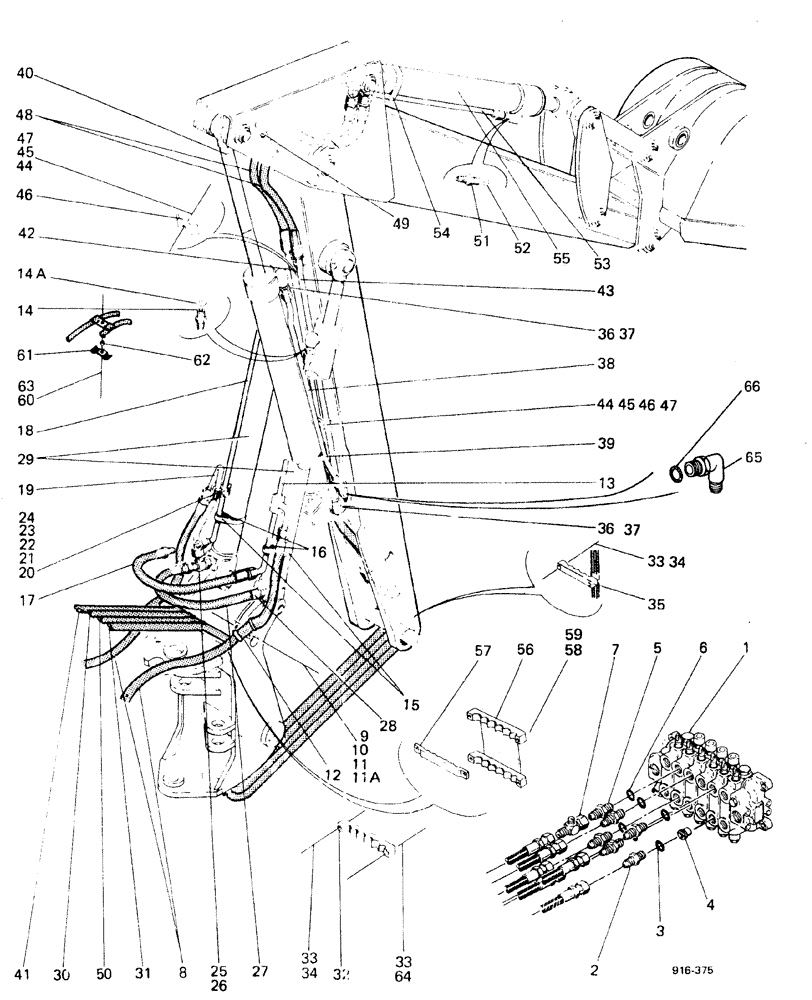

Запчасти Case 580F (264) - SIDE SHIFT BACKHOE BOOM AND DIPPER CYLINDER (35) - HYDRAULIC SYSTEMS

1

REF

INSTRUCTION

VALVE, see Figure 214

1шт.

2

L55143

FITTING

CONNECTOR

1шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Seal

1шт.

4

D56252

FITTING

RESTRICTOR

1шт.

5

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

5шт.

6

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Seal

1шт.

7

218-5475

TEE,37 Degree, 7/8"-14 x 3/4"-16, Fem Sw Run x 1/2"-20 Br

CONNECTOR

1шт.

8

D70372

HOSE

2шт.

9

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

10

D72284

SLEEVE

2шт.

11

195-25

WASHER,3/8"

4шт.

11a

131-652

LOCK NUT,3/8"-16, GB

2шт.

12

D47782

CLAMP,25.4mm ID, 10.31mm Bolt Hole, P Type

2шт.

13

D69237

TUBE

1шт.

14

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

2шт.

14a

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL

1шт.

15

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

2шт.

16

D38648

BLOCK

SPACER

2шт.

17

D65886

HOSE,12.7mm ID x 457.2mm L, SAE 100R2

18"/457 mm

1шт.

18

D69234

HYD TUBE,0.75" OD x 41.4, 2.75" L

1шт.

19

D69421

HYD TUBE,0.75" OD

1шт.

20

13-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

21

D40236

CLAMP

2шт.

22

D34244

SPACER

SPACER

1шт.

23

92-6

LOCK WASHER,3/8"

1шт.

24

25-106

NUT,3/8"-16, G5

1шт.

25

218-5239

TEE,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR

1шт.

26

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Seal

1шт.

27

D65491

HOSE,12.7mm ID x 558.8mm L, SAE 100R2

22"/559 mm

1шт.

28

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Seal

1шт.

29

REF

INSTRUCTION

CYLINDER, see Figure 200

2шт.

30

D70323

HOSE

1шт.

UP TO NO. 3.786.141

1шт.

30

D75812

HOSE

1шт.

STARTING WITH NO. 3.786.142

1шт.

31

D67590

HOSE

1шт.

32

D69610

CLAMP

1шт.

33

92-8

LOCK WASHER,1/2"

4шт.

34

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

3шт.

35

D50388

CLAMP

2шт.

36

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

2шт.

UP TO NO. 3.785.997

1шт.

36

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

1шт.

STARTING WITH NO. 3.785.998

1шт.

37

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL

1шт.

38

D50379

TUBE

1шт.

39

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

1шт.

40

REF

INSTRUCTION

CYLINDER, see Figure 202

1шт.

41

D70323

HOSE

1шт.

42

D73348

HYD TUBE,0.75" OD x 3.77, 72.4" L

TUBE

1шт.

UP TO NO. 3.786.141

1шт.

42

D74338

TUBE

order D84597

1шт.

STARTING WITH NO. 3.786.142

1шт.

42

D84597

HYD TUBE,0.75" OD x 70, 2.58" L

1шт.

43

D73350

TUBE

order D87421

1шт.

43

D87421

HYD TUBE,0.75" OD x 4.65, 73.4" L

1шт.

44

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

45

92-6

LOCK WASHER,3/8"

2шт.

46

D40236

CLAMP

2шт.

47

D36040

BUSHING

SPACER

2шт.

48

D50372

HOSE

2шт.

49

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

1шт.

50

D67588

HOSE

1шт.

51

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

2шт.

52

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL

1шт.

53

D58609

TUBE

1шт.

54

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

1шт.

55

REF

INSTRUCTION

CYLINDER, see Figure 204

1шт.

56

E35293

STRAP

1шт.

UP TO NO. 3.786.140

1шт.

56

D75206

CLAMP

STRAP

1шт.

STARTING WITH NO. 3.786.141

1шт.

57

D69609

CLIP

STRAP

1шт.

58

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

59

92-8

LOCK WASHER,1/2"

4шт.

60

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

CAP

1шт.

61

D42833

CLAMP

2шт.

62

D67696

BUSHING

SPACER

1шт.

63

131-666

LOCK NUT,3/8"-16, GB

1шт.

64

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

65

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

CONNECTOR

1шт.

STARTING WITH NO. 3.785.998

1шт.

66

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.
