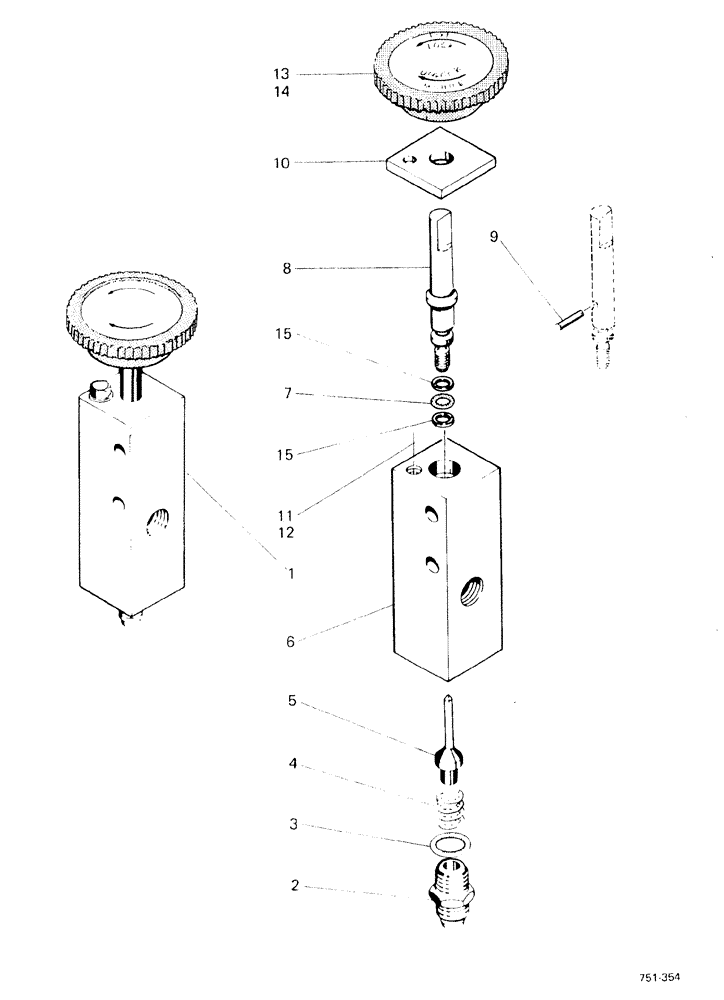

Запчасти Case 580F (262) - SIDE SHIFT BACKHOE LOCKING CYLINDERS (35) - HYDRAULIC SYSTEMS

1

D75581

VALVE

1шт.

2

218-5079

HYD CONNECTOR,1/2" - 20 Male JIC x 9/16" - 18 Male ORB

1шт.

3

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Seal

1шт.

4

D36669

SPRING

1шт.

5

D36668

X

POPPET

1шт.

6

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

7

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

SEAL

1шт.

8

D75569

SPOOL

SHAFT

1шт.

9

138-38

LOCK PIN,3/32" x 9/16", Slotted

If used

1шт.

10

D36665

RETAINER

SPARE PART PLATE

1шт.

11

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

12

92-4

LOCK WASHER,1/4"

1шт.

13

D36667

KNOB

1шт.

14

321-907

DECAL

1шт.

15

D71056

RING,Split, 4.47mm ID x 7.21mm OD x 1.32mm Thk

2шт.
