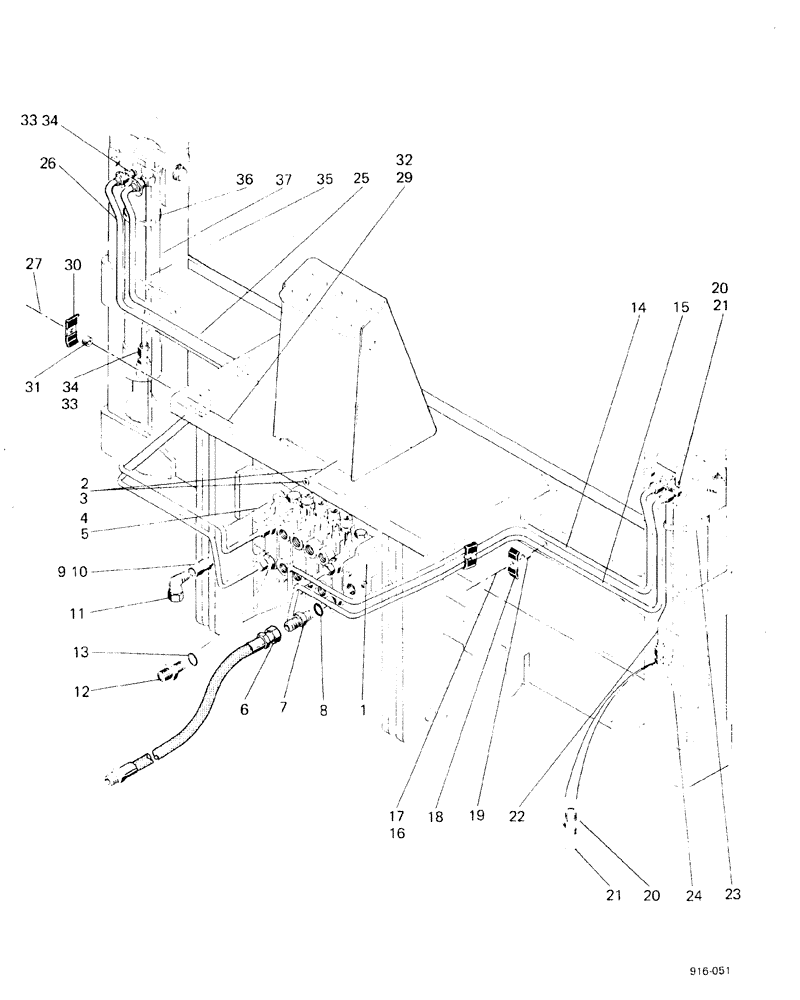

Запчасти Case 580F (256) - SIDE SHIFT BACKHOE STABILIZER CYLINDER (35) - HYDRAULIC SYSTEMS
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
VALVE, see Figure 214
1шт.
2
13-832
BOLT,Hex, 1/2" - 13 x 2", Gr 5
3шт.
3
95-8
WASHER,1/2"
3шт.
4
92-8
LOCK WASHER,1/2"
3шт.
5
25-108
NUT,1/2"-13, G5
3шт.
6
D66505
HOSE
1шт.
7
218-5069
HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB
1шт.
8
218-5010
O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro
Seal
1шт.
9
D68334
ADAPTER
1шт.
10
218-5010
O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro
Seal
1шт.
11
218-5234
ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw
ELBOW
1шт.
12
218-5071
HYD CONNECTOR,3/4" - 16 Male JIC x 1-5/16" - 12 Male ORB
4шт.
13
218-5010
O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro
Seal
1шт.
14
D70081
TUBE
right-hand
1шт.
15
D70085
TUBE
right-hand
1шт.
16
13-618
BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5
2шт.
17
92-6
LOCK WASHER,3/8"
2шт.
18
A13622
PLATE, LOCKING
CLAMP
2шт.
19
D95742
BUSHING
SPACER
2шт.
21
218-5007
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
SEAL
1шт.
22
D74291
TUBE
right-hand
1шт.
UP TO NO. 3.785.895
1шт.
22
D76595
TUBE,12 mm OD x 15, 642.8 mm L
right-hand
1шт.
STARTING WITH NO. 3.785.896
1шт.
23
214-265
HOSE CLAMP,#56, 3.06" - 4", Type F Worm
1шт.
24
REF
INSTRUCTION
CYLINDER, see Figure 194
1шт.
25
D70083
TUBE
left-hand
1шт.
26
D70087
TUBE
left-hand
1шт.
27
13-624
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
2шт.
29
92-6
LOCK WASHER,3/8"
2шт.
30
A13622
PLATE, LOCKING
CLAMP
2шт.
31
D95742
BUSHING
SPACER
2шт.
32
25-106
NUT,3/8"-16, G5
2шт.
34
218-5007
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
SEAL
1шт.
35
D74292
TUBE
SPARE PART left-hand
1шт.
UP TO NO. 3.785.895
1шт.
35
D76597
TUBE,12 mm OD x 15, 642.8 mm L
left-hand
1шт.
STARTING WITH NO. 3.785.896
1шт.
36
214-267
HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm
1шт.
37
REF
INSTRUCTION
CYLINDER, see Figure 194
1шт.
Выбрано товаров: 42
