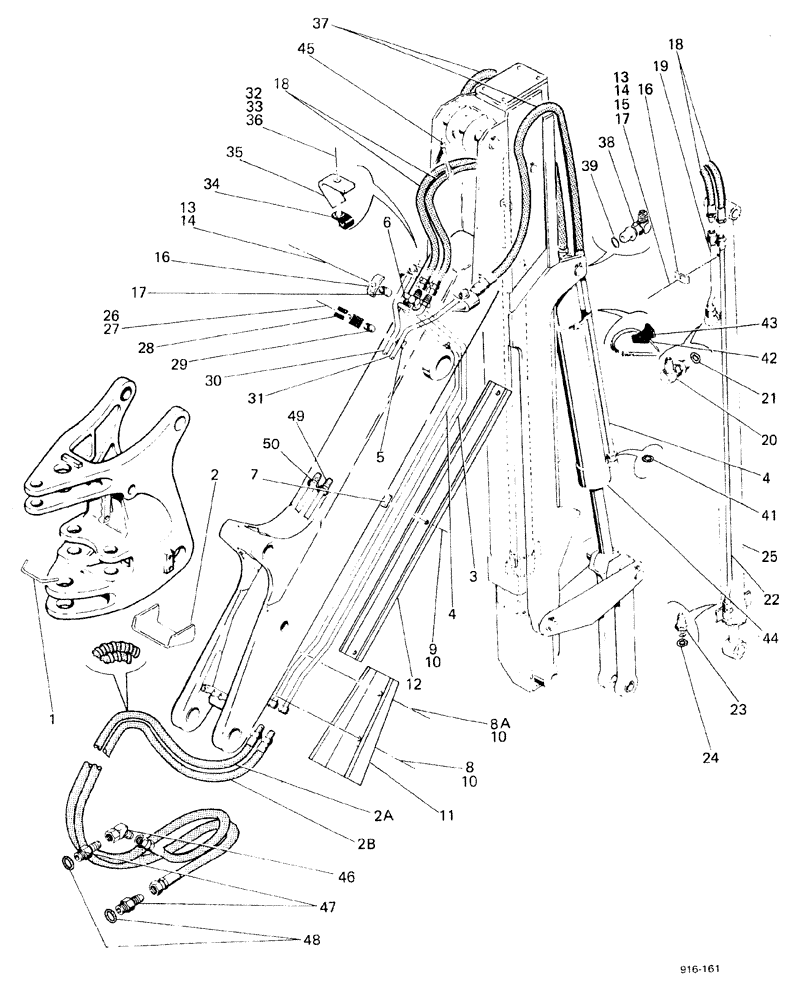

Запчасти Case 580F (226) - BACKHOE HYDRAULICS AND CYLINDERS (35) - HYDRAULIC SYSTEMS

1

D54702

GUIDE

1шт.

2

D56194

GUARD

1шт.

2a

D73377

HOSE

1шт.

2b

D73377

HOSE

1шт.

3

D55464

TUBE

1шт.

4

D55466

TUBE

1шт.

5

D50004

BLOCK

1шт.

6

D52569

BLOCK

1шт.

7

D52843

BLOCK

5шт.

8

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

8a

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

9

13-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

CAP

3шт.

10

95-8

WASHER,1/2"

5шт.

11

D54420

GUARD

1шт.

12

D54137

GUARD

1шт.

13

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

14

92-6

LOCK WASHER,3/8"

2шт.

15

195-25

WASHER,3/8"

1шт.

16

D42504

CLAMP

2шт.

17

D33552

BUSHING

SPACER

2шт.

18

D32284

HOSE,12.7mm ID x 1016mm L, SAE 100R2

2шт.

19

D52572

TUBE

1шт.

20

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

1шт.

21

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL

1шт.

22

D52574

TUBE

1шт.

23

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

1шт.

24

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL

1шт.

25

REF

INSTRUCTION

CYLINDER, see Figure 204

1шт.

26

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

27

92-6

LOCK WASHER,3/8"

1шт.

28

D40236

CLAMP

1шт.

29

D36040

BUSHING

SPACER

1шт.

30

D73302

PIPE

TUBE

1шт.

31

D73304

TUBE

TUBE

1шт.

32

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

CAP

2шт.

33

195-25

WASHER,3/8"

2шт.

34

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

2шт.

35

D45559

BRACKET

2шт.

36

131-652

LOCK NUT,3/8"-16, GB

2шт.

37

D52566

HOSE

2шт.

38

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ELBOW, 90°

1шт.

39

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL

1шт.

40

D55050

HOSE

TUBE

1шт.

41

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL

1шт.

42

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

1шт.

43

D38648

BLOCK

SPACER

1шт.

44

REF

INSTRUCTION

CYLINDER, see Figure204

1шт.

45

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

1шт.

46

218-5175

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Female JIC

ELBOW, 45°

1шт.

47

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

2шт.

48

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Seal

1шт.

49

D73298

TUBE,0.75" OD x 4.65, 39.4" L

1шт.

UP TO NO. 3.775.188

1шт.

49

D76418

HYD TUBE,0.75" OD x 3.6, 36" L

1шт.

STARTING WITH NO. 3.775.189

1шт.

50

D73300

HYD TUBE,0.75" OD x 3.77, 39.4" L

1шт.
