(215A) - SIDE SHIFT BACKHOE CONTROL VALVE

Запчасти Case 580F (215A) - SIDE SHIFT BACKHOE CONTROL VALVE (35) - HYDRAULIC SYSTEMS

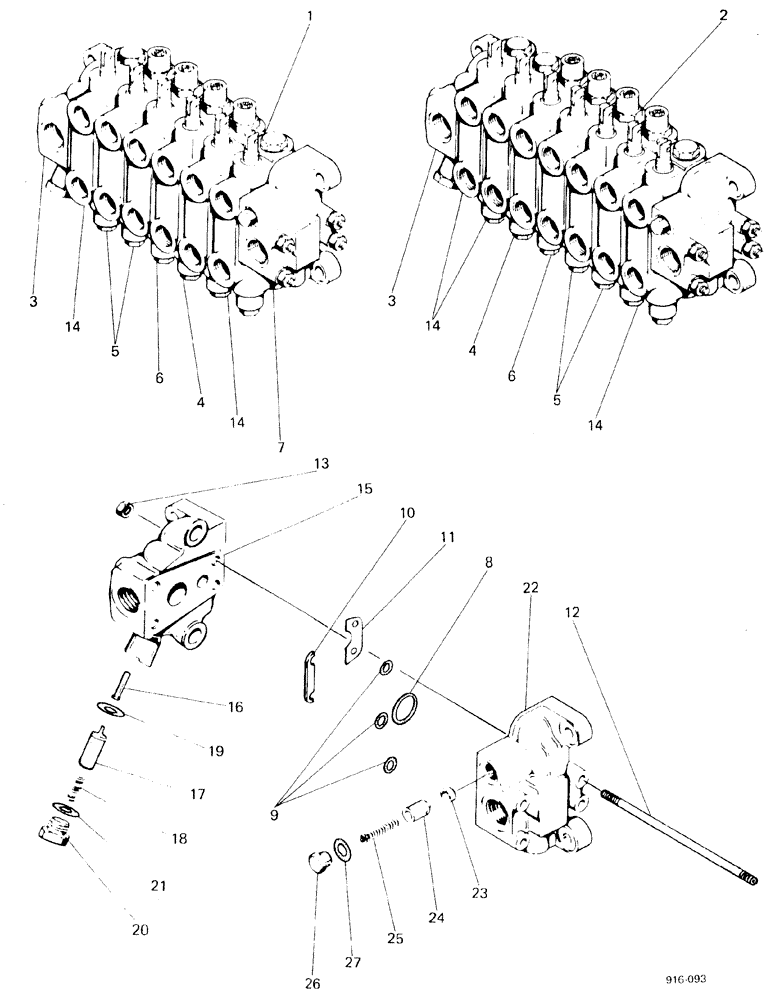

Схема запчастей Case 580F - (215A) - SIDE SHIFT BACKHOE CONTROL VALVE (35) - HYDRAULIC SYSTEMS
5
21
5
26
4
14
4
23
8
2
7
11
20
17
1
19
3
14
16
6
12
22
14
13
18
27
6
25
10
24
9
3
14
15
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

G102481

VALVE

ASSEMBLY 6 spool, 5 levers, without extendahoe, starting with NO. 3.784.489

1шт.

1

G102482

VALVE

ASSEMBLY 6 spool, 2 levers, without extendahoe, starting with NO. 3.784.489

1шт.

1

E37850

VALVE ASSEMBLY 6 spool, 2 levers, without extendahoe, for Suedish only

1шт.

2

G102483

LOCK VALVE

ASSEMBLY 7 spool, 5 levers, with extendahoe

1шт.

2

G102484

VALVE

ASSEMBLY 7 spool, 2 levers, with extendahoe

1шт.

2

E37851

VALVE ASSEMBLY 7 spool, 2 levers, with extendahoe, for Suedish only

1шт.

3

G33108

MANIFOLD

VALVE outlet, see Figure 214

1шт.

4

G102480

VALVE

boom, see Figure 220

1шт.

5

G35444

VALVE

bucket and dipper, see Figure 216

2шт.

6

G100192

ELEMENT

SECTION swing, see Figure 218

1шт.

7

G33102

MANIFOLD

VALVE inlet, see Figure 214

1шт.

8

G34001

O-RING,0.103" Thk x 1.424" ID, -127, Cl 6, 90 Duro

7-8шт.

9

G34000

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

21 24шт.

10

G33964

SHIM,.002" Thk

(0.05 mm)

78шт.

11

G33965

SHIM,22.86mm OD x 0.06mm Thk

(.002")

7-8шт.

12

G34466

TIE-ROD

ROD, with extendahoe

4шт.

12

G33124

BOLT

ROD, without extendahoe

4шт.

13

25-106

NUT,3/8"-16, G5

8шт.

14

G100193

VALVE

stabilizer and extendahoe dipper, see Figure 222

2-3шт.
