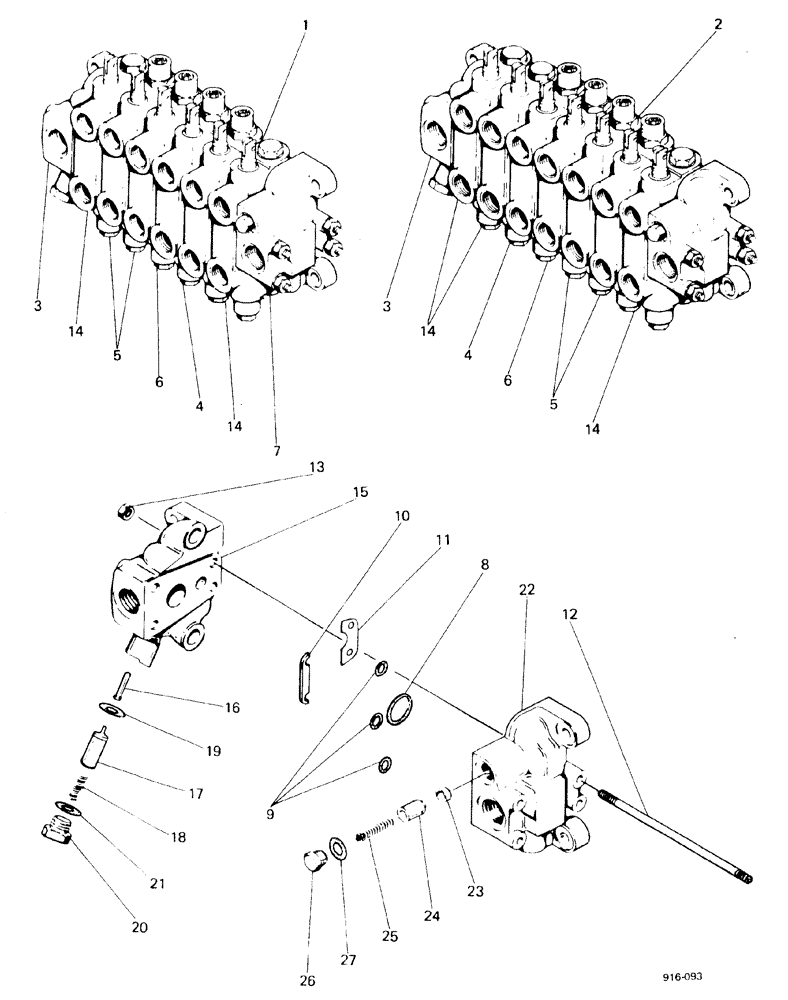

Запчасти Case 580F (214) - SIDE SHIFT BACKHOE CONTROL VALVE (35) - HYDRAULIC SYSTEMS

1

G35189

VALVE ASSEMBLY 6 spool, 5 levers, order G102481, see Figure 215A, up to NO 3.784.488

1шт.

2

REF

INSTRUCTION

VALVE ASSEMBLY 7 spool, 5 levers, with extendahoe, see Figure 215A

1шт.

1

G100042

LOCK VALVE

ASSEMBLY 6 spool, 2 levers, order G102482, see Figure 215A, up to NO 3.784.488

1шт.

2

REF

INSTRUCTION

VALVE ASSEMBLY 7 spool, 2 levers, with extendahoe, see Figure 215A

1шт.

3

G33108

MANIFOLD

VALVE outlet, see Ref. 213a

1шт.

4

G100044

VALVE boom, see Figure 220

1шт.

5

G33097

VALVE

bucket and dipper, see Figure 216

2шт.

6

G34941

CYLINDER

SECTION swing, see Figure 218

1шт.

7

G33102

MANIFOLD

VALVE inlet, see Ref. 213A

1шт.

8

G34001

O-RING,0.103" Thk x 1.424" ID, -127, Cl 6, 90 Duro

7-8шт.

9

G34000

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

21-24шт.

10

G33964

SHIM,.002" Thk

(0.05 mm)

7-8шт.

11

G33965

SHIM,22.86mm OD x 0.06mm Thk

(.002")

7-8шт.

12

G33124

BOLT

ROD, without extendahoe

4шт.

12

G34466

TIE-ROD

ROD, with extendahoe

4шт.

13

25-106

NUT,3/8"-16, G5

8шт.

14

G33121

VALVE

stabilizer and extendahoe dipper, see Figure 222

2-3шт.

G33108

MANIFOLD

VALVE ASSEMBLY outlet

1шт.

15

NSS

NOT SOLD SEPARAT

MANIFOLD

1шт.

16

G33110

PISTON

1шт.

17

G34586

SPOOL,22mm OD x 59.87mm L

1шт.

18

G33112

SPRING

1шт.

19

A35104

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

1шт.

20

218-5213

PLUG,Hex Soc, 1 3/16"-12 ORB

1шт.

21

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

G33102

MANIFOLD

INLET ASSEMBLY

1шт.

22

NSS

NOT SOLD SEPARAT

MANIFOLD

1шт.

23

G33104

SEAT

1шт.

24

G33105

VALVE POPPET

1шт.

25

G33106

SPRING

1шт.

26

A39586

PLUG

1шт.

27

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.
