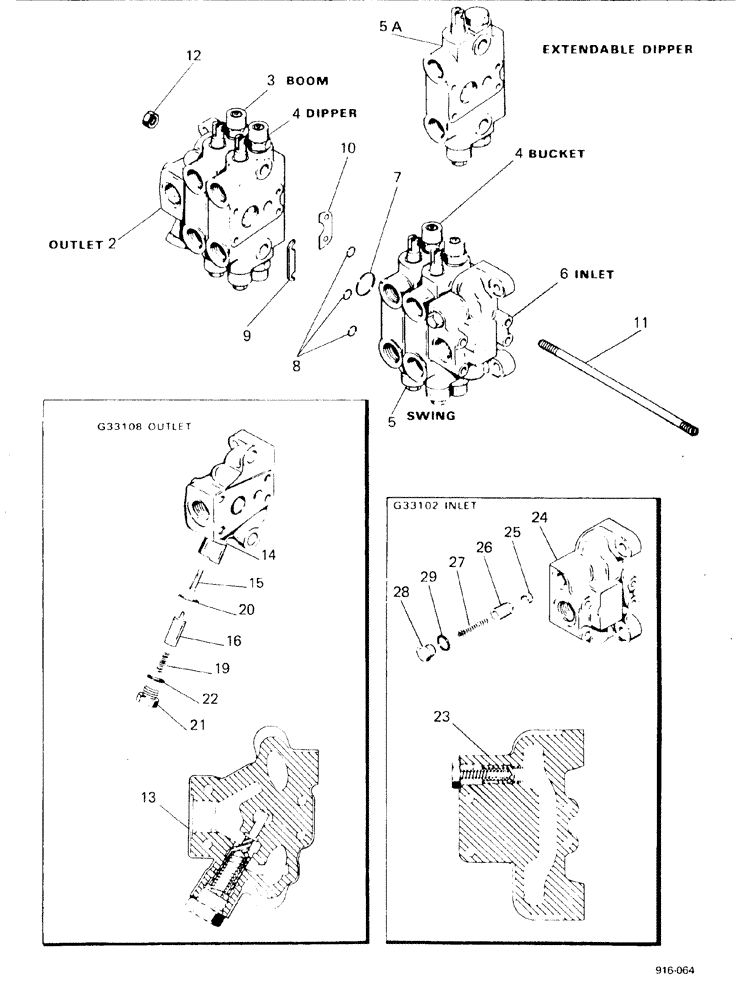

Запчасти Case 580F (213A) - BACKHOE CONTROL VALVE (35) - HYDRAULIC SYSTEMS

G100244

VALVE

complete, without extendahoe, UP TO NO 3.774.995

1шт.

E35885

VALVE complete, without extendahoe, for Suedish only

1шт.

G100196

LOCK VALVE

complete, with extendahoe

1шт.

E35886

VALVE complete, with extendahoe, for Suedish only

1шт.

2

G33108

MANIFOLD

VALVE outlet, see Figure 212

1шт.

3

G35445

VALVE

boom, see Figure 220

1шт.

4

G35444

VALVE

bucket and dipper, see Figure 216

2шт.

5

G100192

ELEMENT

SECTION swing, see Figure 218

1шт.

5a

G100193

VALVE

dipper extendahoe, used in G100196 only, see Figure 222

1шт.

6

G33102

MANIFOLD

INLET, see Figure 212

1шт.

7

G34001

O-RING,0.103" Thk x 1.424" ID, -127, Cl 6, 90 Duro

5-6шт.

8

G34000

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

15-18шт.

9

G33964

SHIM,.002" Thk

(0.05 mm)

5-6шт.

10

G33965

SHIM,22.86mm OD x 0.06mm Thk

(.002")

5-6шт.

11

G34675

TIE-ROD

with extendahoe

4шт.

11

G34942

TIE-ROD

BOLT, without extendahoe

4шт.

12

25-106

NUT,3/8"-16, G5

4шт.
