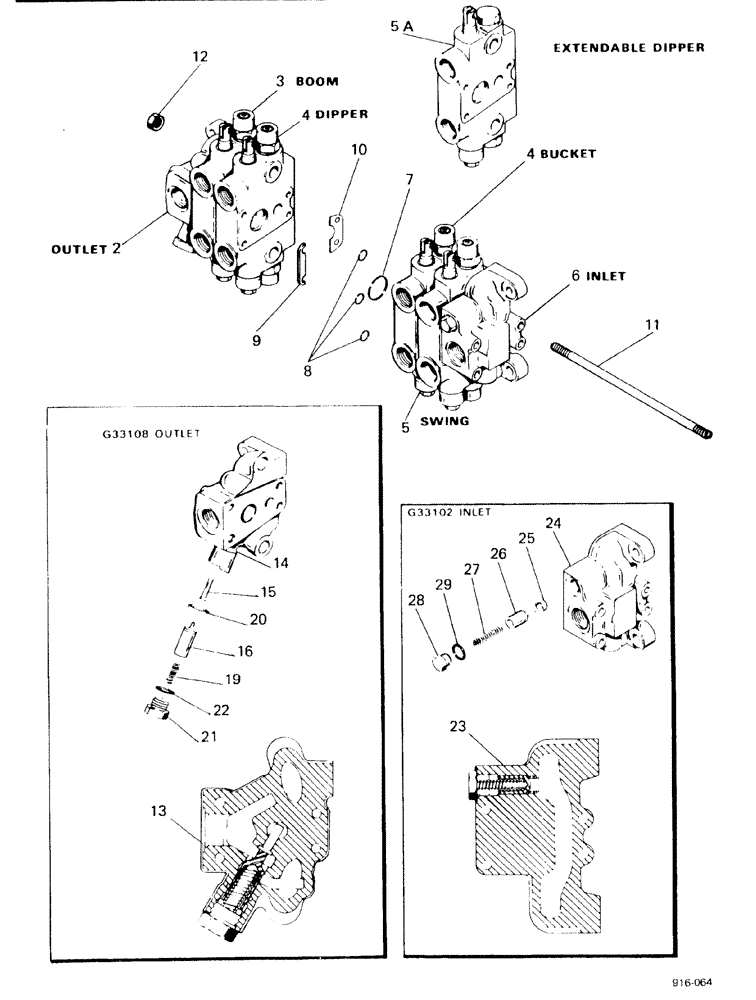

Запчасти Case 580F (212) - BACKHOE CONTROL VALVE (35) - HYDRAULIC SYSTEMS

G34897

VALVE

complete, without extendahoe, order G100244, see Figure 213A, UP TO NO 3.774.994

1шт.

2

G33108

MANIFOLD

VALVE outlet, see Ref. 212

1шт.

3

G33099

FILTER, ELEMENT

ELEMENT, FILTER VALVE boom, see Figure 220

1шт.

4

G33097

VALVE

BUCKET AND DIPPER, see Figure 216

2шт.

5

G34941

CYLINDER

SECTION swing, see Figure 218

1шт.

5a

REF

INSTRUCTION

VALVE dipper extension, see Figure 213A

1шт.

6

G33102

MANIFOLD

INLET, see Ref. 212

1шт.

7

G34001

O-RING,0.103" Thk x 1.424" ID, -127, Cl 6, 90 Duro

5-6шт.

8

G34000

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

15-18шт.

9

G33964

SHIM,.002" Thk

(0.05 mm)

5-6шт.

10

G33965

SHIM,22.86mm OD x 0.06mm Thk

(.002")

5-6шт.

11

G34675

TIE-ROD

ROD with extendahoe

4шт.

11

G34942

TIE-ROD

ROD without extendahoe

4шт.

12

25-106

NUT,3/8"-16, G5

4шт.

13

G33108

MANIFOLD

VALVE ASSEMBLY, outlet

1шт.

14

NSS

NOT SOLD SEPARAT

MANIFOLD

1шт.

15

G33110

PISTON

1шт.

16

G34586

SPOOL,22mm OD x 59.87mm L

1шт.

19

G33112

SPRING

1шт.

20

A35104

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

1шт.

21

218-5213

PLUG,Hex Soc, 1 3/16"-12 ORB

1шт.

22

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

23

G33102

MANIFOLD

INLET ASSEMBLY

1шт.

24

NSS

NOT SOLD SEPARAT

MANIFOLD

1шт.

25

G33104

SEAT

1шт.

26

G33105

VALVE POPPET

1шт.

27

G33106

SPRING

1шт.

28

A39586

PLUG

1шт.

29

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.
