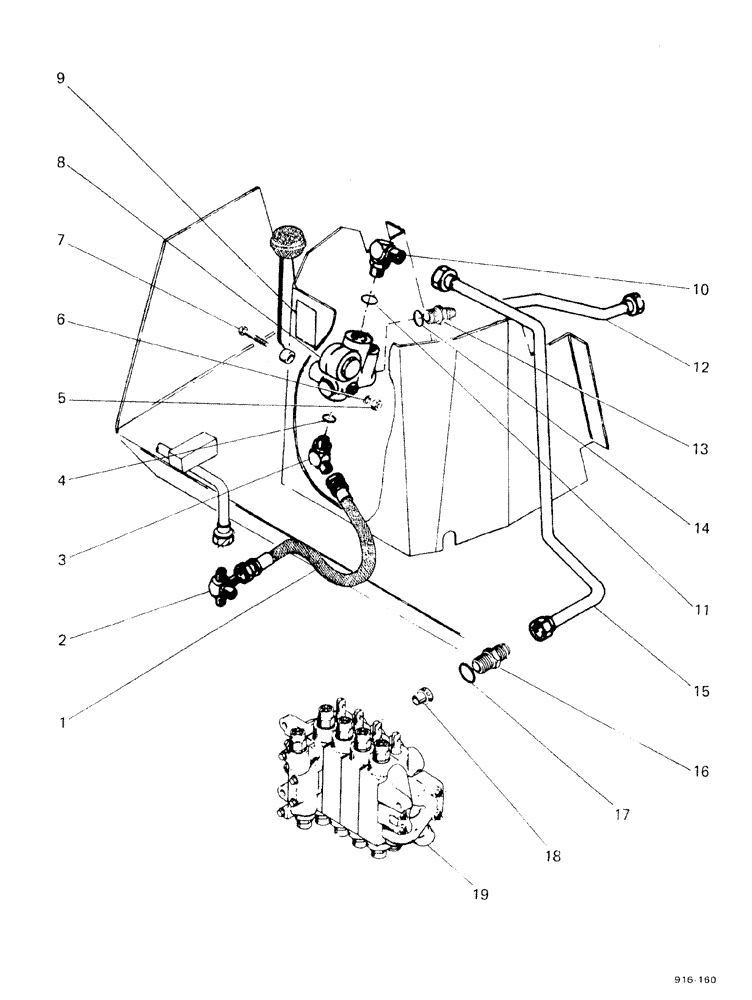

Запчасти Case 580F (210) - BACKHOE BOOM LOCK HYDRAULICS SYSTEM (35) - HYDRAULIC SYSTEMS

1

D69650

HOSE

1шт.

2

D69651

TEE

UNION

2шт.

3

218-5145

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

1шт.

5

25-106

NUT,3/8"-16, G5

2шт.

6

92-6

LOCK WASHER,3/8"

2шт.

7

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

D95557

SPACER

for Suedish only

1шт.

8

REF

INSTRUCTION

VALVE, see Figure 211A

1шт.

9

321-3348

DECAL

English

1шт.

9

321-3616

DECAL French

1шт.

9

321-3672

DECAL German

1шт.

9

321-3629

DECAL Spanish

1шт.

9

321-3684

DECAL Suedish

1шт.

9

321-3667

DECAL Japanese

1шт.

9

321-3642

DECAL Italian

1шт.

9

321-3666

DECAL Arabic

1шт.

10

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

1шт.

11

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

12

D74245

TUBE

1шт.

13

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

1шт.

14

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

15

D74247

TUBE

1шт.

15

E35891

TUBE, for Suedish only

1шт.

16

L55143

FITTING

CONNECTOR ADAPTER

1шт.

17

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

18

D56252

FITTING

REGULATOR flow

1шт.

19

REF

INSTRUCTION

VALVE, see Figure 212

1шт.

4

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.
