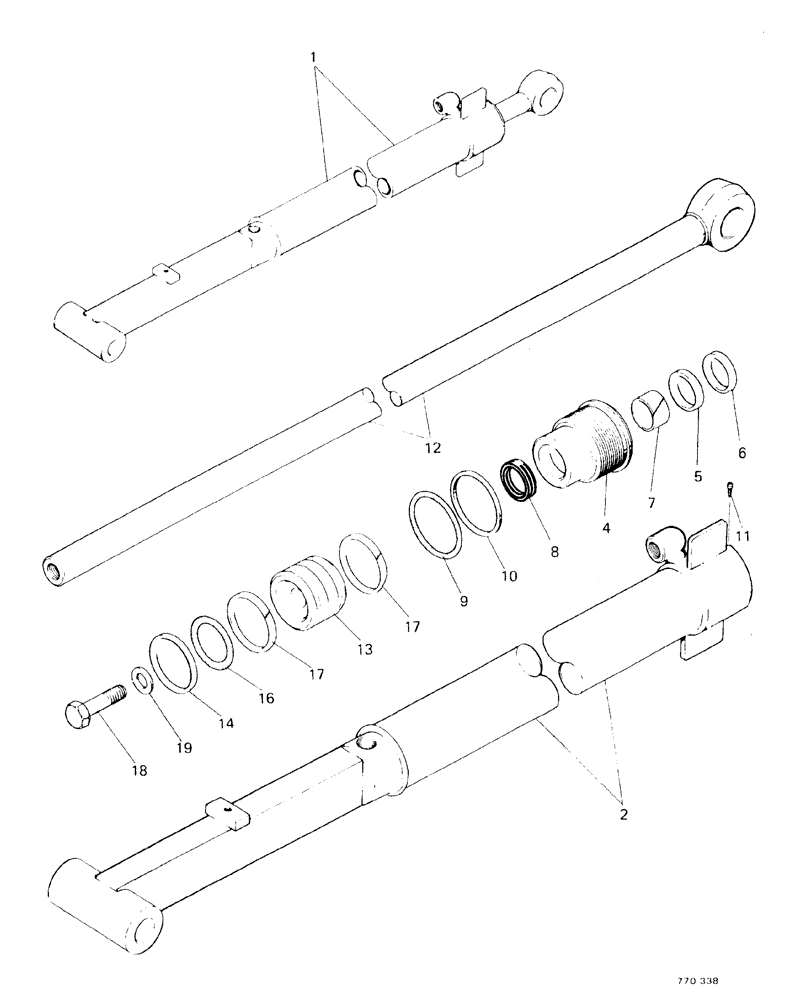

Запчасти Case 580F (207A) - BACKHOE EXTENDAHOE CYLINDER, STARTING WITH NO 3.775.162, AXIAL BACKHOE (35) - HYDRAULIC SYSTEMS

1

G101183

CYLINDER

ASSEMBLY

1шт.

2

G32699

TUBE,72.80 mm L

1шт.

G34328

GLAND

ASSEMBLY

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND

1шт.

5

NSS

NOT SOLD SEPARAT

RING

1шт.

6

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER

1шт.

Part of Seal Set P/N G102404

1шт.

7

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

BEARING

1шт.

Part of Seal Set P/N G102404

1шт.

8

D36969

CUP

SEAL

1шт.

If needed use G100776 special seal for extreme heat or cold, in place of D36969

1шт.

Part of Seal Set P/N G102404

1шт.

9

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

1шт.

Part of Seal Set P/N G102404

1шт.

10

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

1шт.

Part of Seal Set P/N G102404

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

1шт.

12

G33143

PISTON ROD

1шт.

13

G100442

PISTON

1шт.

14

G102288

SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk

1шт.

Part of Seal Set P/N G102404

1шт.

16

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

RING

1шт.

Part of Seal Set P/N G102404

1шт.

17

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

2шт.

Part of Seal Set P/N G102404

1шт.

18

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

1шт.

19

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

1шт.

G102404

SEAL

SET, Includes: Ref. 6 - 10 and 14 - 17

1шт.

G100776

SEAL

1шт.

Special seal for extreme heat or cold

1шт.
