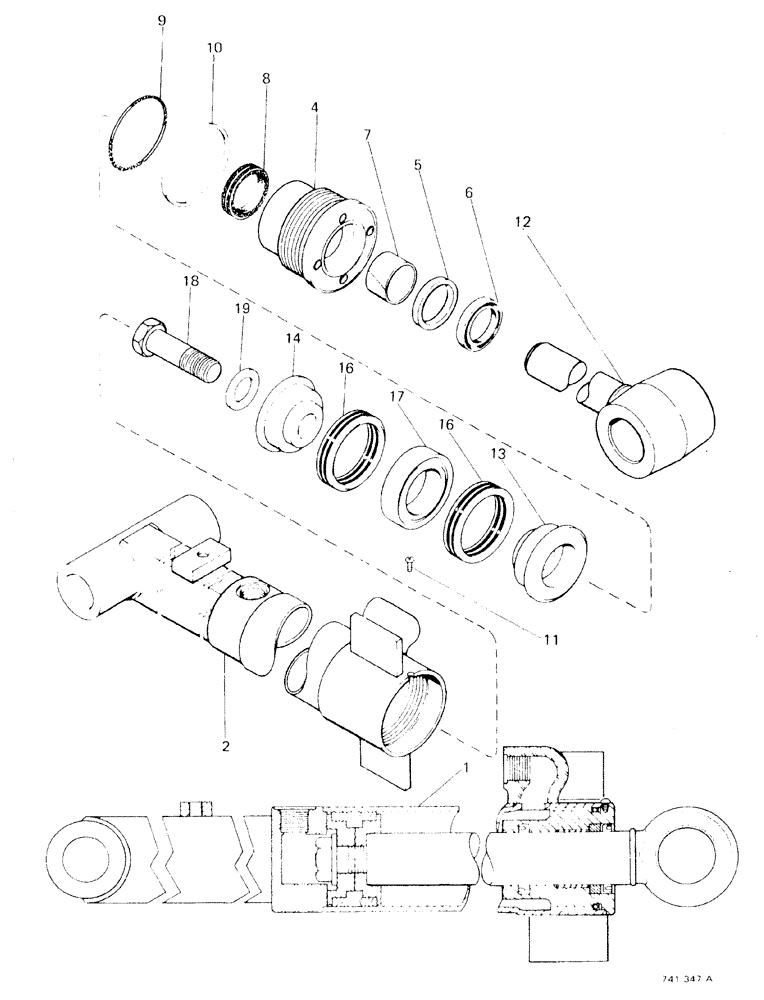

Запчасти Case 580F (206) - BACKHOE EXTENDAHOE CYLINDER, UP TO NO 3.775.161, AXIAL BACKHOE (35) - HYDRAULIC SYSTEMS

1

G33142

BOOM

CYLINDER complete

1шт.

2

G32699

TUBE,72.80 mm L

1шт.

G34328

GLAND

complete

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND

1шт.

5

NSS

NOT SOLD SEPARAT

RING

1шт.

6

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER

1шт.

Part of Seal Set P/N G34332

1шт.

7

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

BEARING

1шт.

Part of Seal Set P/N G34332

1шт.

8

D36969

CUP

SEAL

1шт.

Part of Seal Set P/N G34332

1шт.

If needed use G100776 special seal for extreme heat or cold, in place of D36969

1шт.

9

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

1шт.

Part of Seal Set P/N G34332

1шт.

10

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

1шт.

Part of Seal Set P/N G34332

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

1шт.

12

G33143

PISTON ROD

1шт.

13

G33150

PISTON

split

1шт.

14

D28366

PISTON

split

1шт.

G33151

PACKING

SEAL complete

1шт.

Part of Seal Set P/N G34332

1шт.

16

NSS

NOT SOLD SEPARAT

SEAL

2шт.

17

NSS

NOT SOLD SEPARAT

RING

1шт.

18

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

1шт.

19

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

1шт.

G34332

SEAL

SET, Includes: Ref. 6 - 10 and 14, G33151

1шт.

G100776

SEAL

1шт.

Special seal for extreme heat or cold

1шт.
