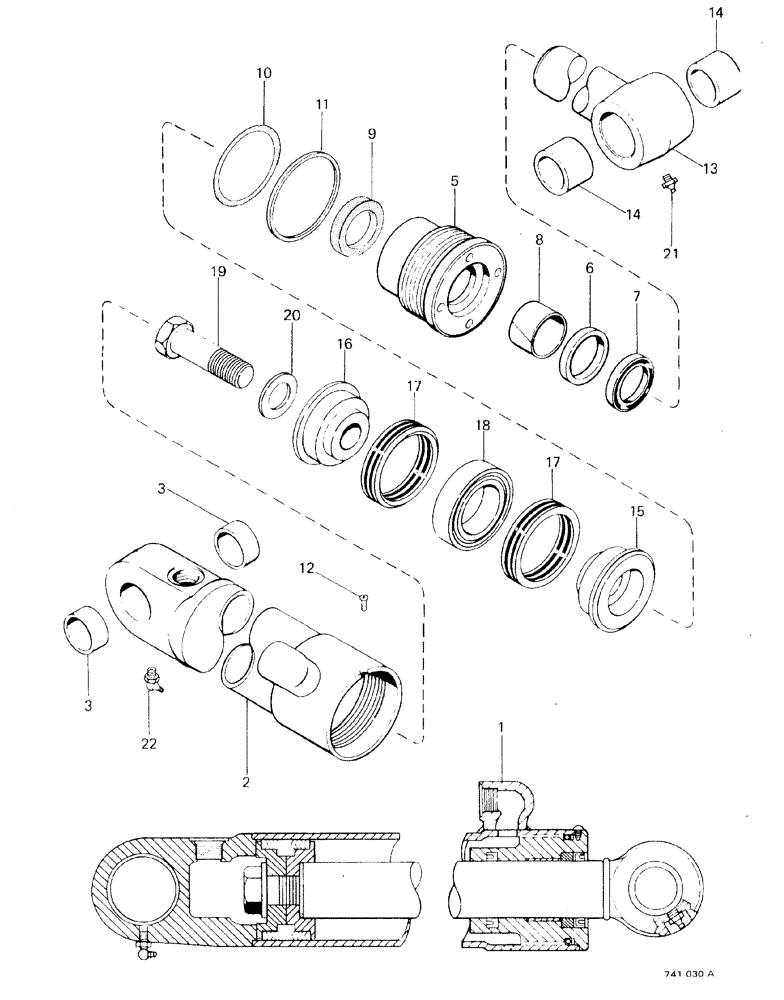

Запчасти Case 580F (204) - BACKHOE BUCKET CYLINDER, UP TO NO 3.775.116, AXIAL BACKHOE (35) - HYDRAULIC SYSTEMS

1

G33196

CYLINDER

complete

1шт.

2

G32399

CYLINDER

TUBE complete

1шт.

3

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

2шт.

G34629

GLAND

complete

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND

1шт.

6

NSS

NOT SOLD SEPARAT

RING

1шт.

7

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper

1шт.

Part of Seal Set P/N G34651

1шт.

8

G101533

WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk

BEARING

1шт.

Part of Seal Set P/N G34651

1шт.

9

D36971

RING

SEAL

1шт.

If needed use G100778 special seal for extreme heat or cold, in place of D36971

1шт.

Part of Seal Set P/N G34651

1шт.

10

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

1шт.

Part of Seal Set P/N G34651

1шт.

11

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

1шт.

Part of Seal Set P/N G34651

1шт.

12

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

1шт.

13

G33162

ROD

complete

1шт.

14

D34340

BUSHING,44.68mm ID x 53.98mm OD x 25.4mm L

2шт.

15

G33167

PISTON

split

1шт.

16

D28367

PISTON

split

1шт.

17

D47203

PACKING,76.07mm ID x 88.77mm OD x 29.18mm Thk

SEAL

2шт.

Part of Seal Set P/N G34651

1шт.

18

D47208

RING

1шт.

19

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

1шт.

20

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

22

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

1шт.

G34651

SEAL

SET, Includes: Ref. 7 - 11 and 17

1шт.

G100778

SEAL

1шт.

Special seal for extreme heat or cold

1шт.
