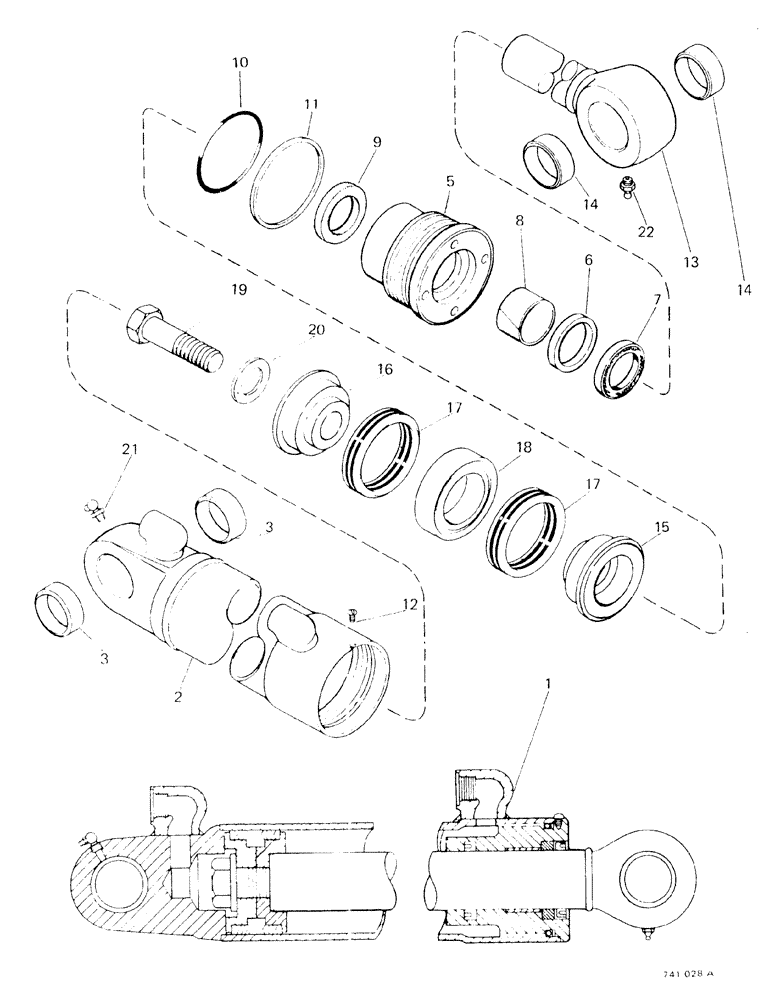

Запчасти Case 580F (202) - BACKHOE DIPPER CYLINDER, UP TO NO 3.775.120, AXIAL BACKHOE (35) - HYDRAULIC SYSTEMS

1

G32079

CYLINDER

complete, order G101175 + 218-5123

1шт.

2

G32831

SLEEVE CYLINDER

complete

1шт.

3

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

2шт.

G34331

GLAND

complete

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND

1шт.

6

NSS

NOT SOLD SEPARAT

RING

1шт.

7

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper

1шт.

Part of Seal Set P/N G34594

1шт.

8

G101533

WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk

BEARING

1шт.

Part of Seal Set P/N G34594

1шт.

9

D36971

RING

SEAL

1шт.

Part of Seal Set P/N G34594

1шт.

If needed use G100778 special seal for extreme heat or cold, in place of D36971

1шт.

10

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

1шт.

Part of Seal Set P/N G34594

1шт.

11

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

1шт.

Part of Seal Set P/N G34594

1шт.

12

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

1шт.

13

G33154

ROD

complete

1шт.

14

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

2шт.

15

G33159

PISTON

split

1шт.

16

D46930

PISTON

split

1шт.

17

D47204

PACKING,89.15mm ID x 100.86mm OD

SEAL

2шт.

Part of Seal Set P/N G34594

1шт.

18

D47209

BEARING,3.006" ID x 3.987" OD x 0.631"

1шт.

19

28-2040

BOLT,Hex, 1-1/4" - 12 x 2-1/2", Gr 8

1шт.

20

G32351

WASHER

1шт.

21

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

1шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

G34594

SEAL

SET, Includes: Ref. 7 - 11 and 17

1шт.

G100778

SEAL

1шт.

Special seal for extreme heat or cold

1шт.
