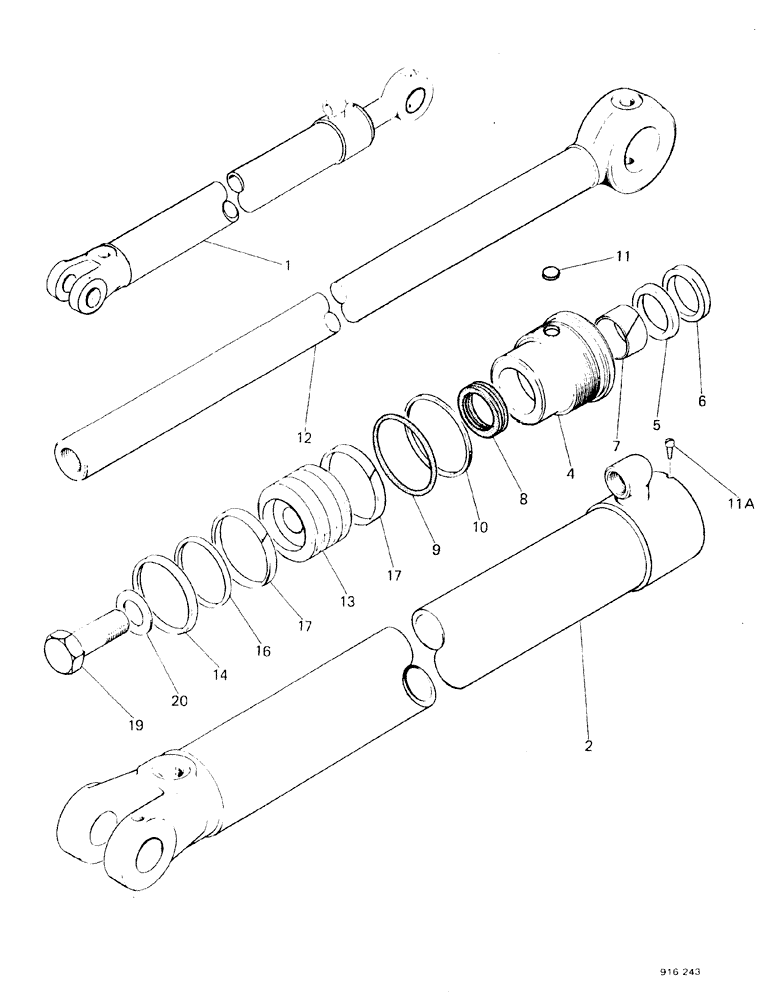

Запчасти Case 580F (201A) - BACKHOE BOOM CYLINDERS, STARTING WITH NO 3.775.109, AXIAL BACKHOE (35) - HYDRAULIC SYSTEMS

1

G101177

BOOM

CYLINDER ASSEMBLY

7шт.

2

G33882

TUBE

1шт.

G34649

GLAND

ASSEMBLY, order G102875

1шт.

G102875

GLAND

ASSEMBLY

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND

1шт.

5

NSS

NOT SOLD SEPARAT

RING

1шт.

6

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER

1шт.

Part of Seal Set P/N G102403

1шт.

7

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

BEARING

1шт.

Part of Seal Set P/N G102403

1шт.

8

D36970

CUP

SEAL

1шт.

If needed use G100777 special seal for extreme heat or cold, in place of D36970

1шт.

Part of Seal Set P/N G102403

1шт.

9

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

1шт.

Part of Seal Set P/N G102403

1шт.

10

D38858

BACK-UP RING,82.17mm ID x 88.27mm OD x 1.4mm Thk

RING

1шт.

Part of Seal Set P/N G102403

1шт.

11

G102569

PLUG

if used

1шт.

11a

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

if used

1шт.

12

G33885

ROD

1шт.

13

G100642

PISTON

1шт.

14

G102287

SEAL,Locking, 79.07mm ID x 83.8mm OD x 6.96mm Thk

1шт.

Part of Seal Set P/N G102403

1шт.

16

S109444

RING,Square, 5.28mm Thk x 68.96mm ID

1шт.

Part of Seal Set P/N G102403

1шт.

17

S109445

RING,82.55mm OD, Ext

2шт.

Part of Seal Set P/N G102403

1шт.

19

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

1шт.

20

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

1шт.

G102403

SEAL

SET, Includes: Ref. 6 - 10 and 14 - 17

1шт.

G100777

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

1шт.

Special seal for extreme heat or cold

1шт.
