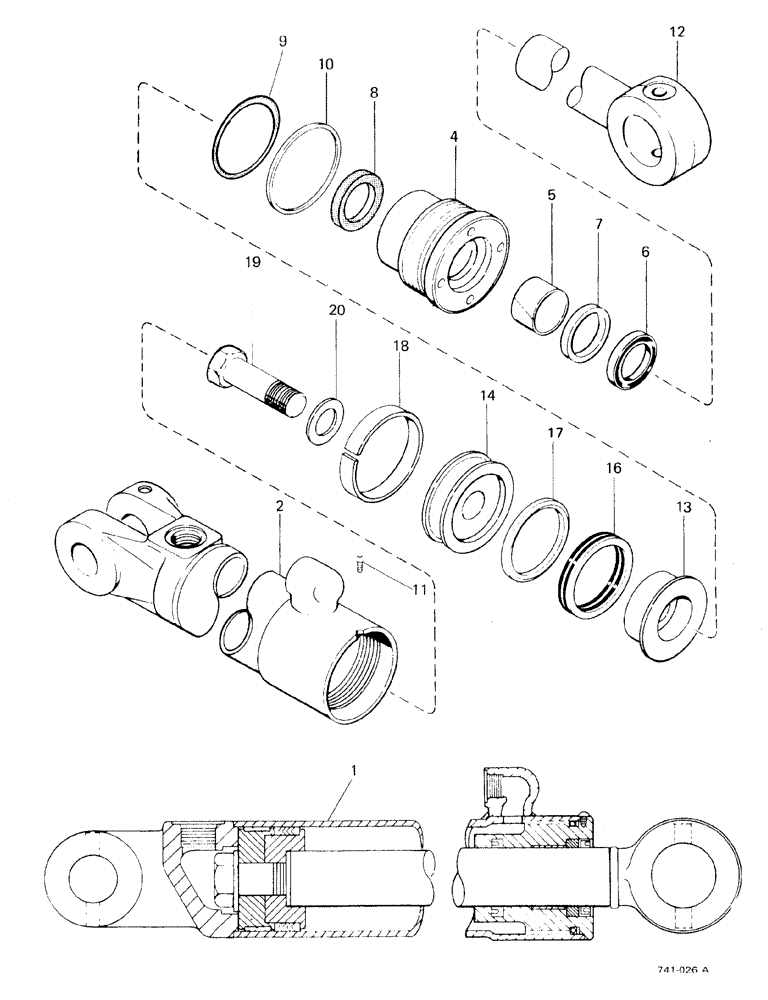

Запчасти Case 580F (200) - BACKHOE BOOM CYLINDERS, UP TO NO 3.775.108, AXIAL BACKHOE (35) - HYDRAULIC SYSTEMS

1

G33881

CYLINDER

complete

2шт.

1

G106168R

REMAN-HYD CYLINDER

580F CASE CONSTRUCTION KING LOADER BACKHOE BEFORE S/N 3739160 (EUROPE), complete, Reman for New PN G33881

2шт.

1

G106168C

CORE-HYD CYLINDER

Return Number

2шт.

2

G33882

TUBE

1шт.

G34649

GLAND

complete

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND

1шт.

5

NSS

NOT SOLD SEPARAT

RING

1шт.

6

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER

1шт.

Part of Seal Set P/N G34653

1шт.

7

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

BEARING

1шт.

Part of Seal Set P/N G34653

1шт.

8

D36970

CUP

SEAL

1шт.

Part of Seal Set P/N G34653

1шт.

If needed use G100777 special seal for extreme heat or cold, in place of D36970

1шт.

9

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

1шт.

Part of Seal Set P/N G34653

1шт.

10

D38858

BACK-UP RING,82.17mm ID x 88.27mm OD x 1.4mm Thk

RING

1шт.

Part of Seal Set P/N G34653

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

1шт.

12

G33885

ROD

1шт.

13

G33180

PISTON

split

1шт.

14

G33182

PISTON

split

1шт.

Part of Seal Set P/N G34653

1шт.

G33186

MISC PACKAGING

SEAL complete

1шт.

16

NSS

NOT SOLD SEPARAT

SEAL

2шт.

17

NSS

NOT SOLD SEPARAT

ADAPTER

1шт.

18

G33181

RING

1шт.

19

28-1648

BOLT,Hex, 1" - 14 x 3", Gr 8

BOLT

1шт.

20

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

1шт.

G34653

SEAL

SET, Includes: Ref. 6 - 10 and 14, G33186

1шт.

G100777

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

1шт.

Special seal for extreme heat or cold

1шт.
