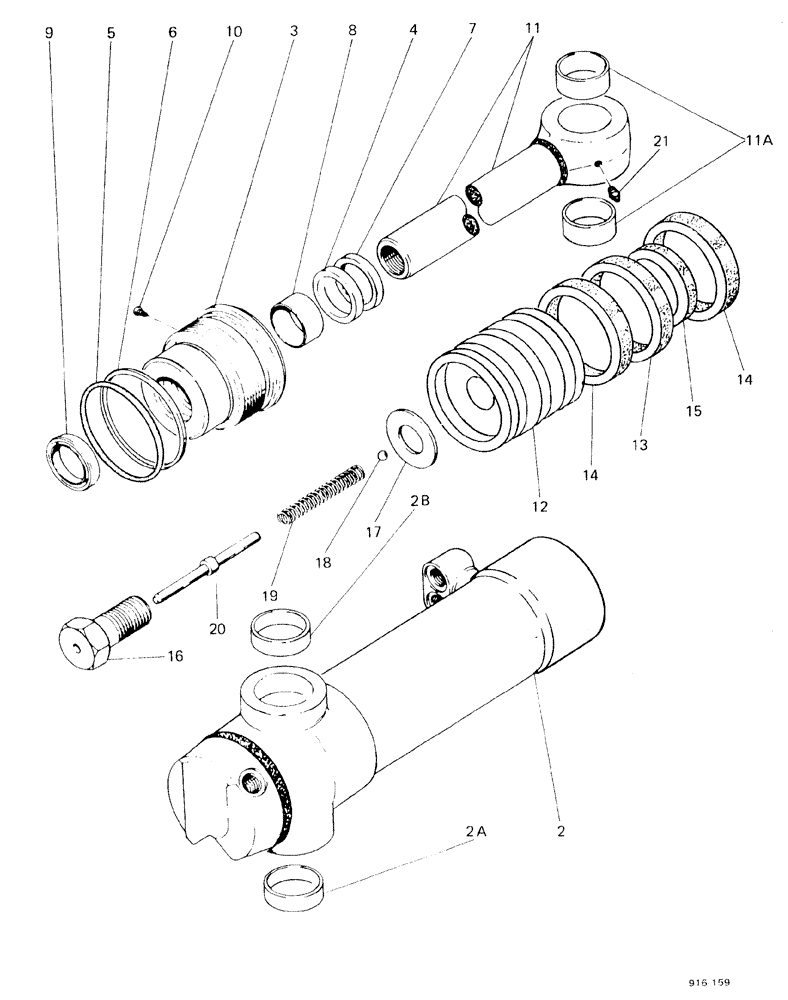

Запчасти Case 580F (199A) - SIDE SHIFT BACKHOE SWING CYLINDERS, STARTING WITH NO 3.785.923 AND UP TO NO 3.787.235 (35) - HYDRAULIC SYSTEMS

G101195

CYLINDER

complete

2шт.

2

G35407

TUBE

1шт.

2a

G35413

BUSHING

1шт.

2b

G100986

BUSHING

1шт.

G34625

GLAND

complete

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND

1шт.

4

NSS

NOT SOLD SEPARAT

RING

1шт.

5

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

1шт.

Part of Seal Set P/N G102408

1шт.

6

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

1шт.

Part of Seal Set P/N G102408

1шт.

7

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER

1шт.

Part of Seal Set P/N G102408

1шт.

8

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

BEARING

1шт.

Part of Seal Set P/N G102408

1шт.

9

D36970

CUP

SEAL

1шт.

Part of Seal Set P/N G102408

1шт.

If needed use G100777 special seal for extreme heat or cold, in place of D36970

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

1шт.

11

G35415

ROD

order E38689

1шт.

11a

G35418

BUSHING,45.2mm ID x 53.98mm OD x 22.35mm L

2шт.

12

G100688

PISTON

1шт.

13

G102285

SEAL,Locking, 98.55mm ID x 102.97mm OD x 6.96mm Thk

1шт.

Part of Seal Set P/N G102408

1шт.

14

G100448

RING,101.6mm OD, Ext

2шт.

Part of Seal Set P/N G102408

1шт.

15

G100440

RING,Square, 5.28mm Thk x 88.01mm ID

1шт.

Part of Seal Set P/N G102408

1шт.

16

D41359

BOLT,Hex, 1 1/4" - 12 x 63.5mm, Gr 8

CAPSCREW

1шт.

17

G32351

WASHER

1шт.

18

211-14

BALL,9/16" Dia

1шт.

19

D38683

SPRING

1шт.

20

D38679

PIN

PIN

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

G102408

SEAL

SET, Includes: Ref. 5 - 9 and 13 - 15

1шт.

G100777

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

1шт.

Special seal for extreme heat or cold

1шт.

E38689

SET

KIT repair, Includes: P/N G102816, 2 + G34331, 2 + G100438, 2 + G100440, 2 + G100448, 4 + G102285, 2

1шт.
