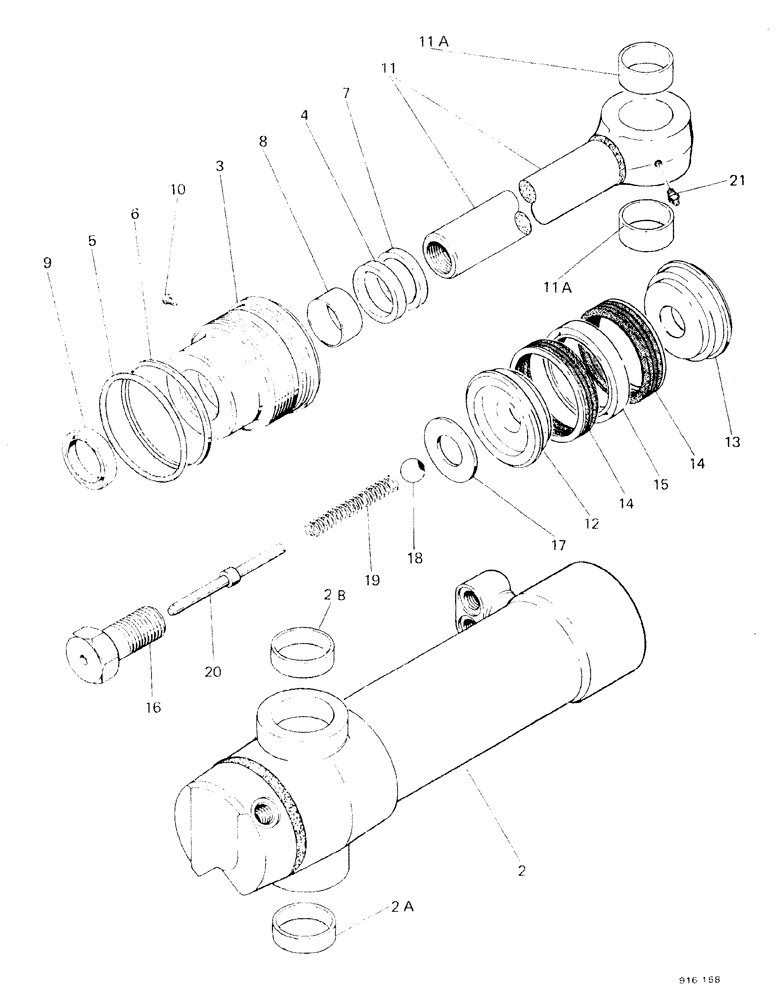

Запчасти Case 580F (198) - SIDE SHIFT BACKHOE SWING CYLINDERS, UP TO NO 3.785.922 (35) - HYDRAULIC SYSTEMS

1

G35184

CYLINDER complete

2шт.

2

G35407

TUBE

1шт.

2a

G35413

BUSHING

1шт.

2b

G100986

BUSHING

1шт.

G34625

GLAND

complete

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND

1шт.

4

NSS

NOT SOLD SEPARAT

RING

1шт.

5

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

SEAL

1шт.

Part of Seal Set P/N G34626

1шт.

6

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

1шт.

Part of Seal Set P/N G34626

1шт.

7

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER

1шт.

Part of Seal Set P/N G34626

1шт.

8

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

BEARING

1шт.

Part of Seal Set P/N G34626

1шт.

9

D36970

CUP

SEAL

1шт.

Part of Seal Set P/N G34626

1шт.

If needed use G100777 special seal for extreme heat or cold, in place of D36970

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

1шт.

11

G35415

ROD

1шт.

11a

G35418

BUSHING,45.2mm ID x 53.98mm OD x 22.35mm L

2шт.

12

D46930

PISTON

split

1шт.

13

G33923

PISTON

split

1шт.

14

D47204

PACKING,89.15mm ID x 100.86mm OD

2шт.

Part of Seal Set P/N G34626

1шт.

15

D47209

BEARING,3.006" ID x 3.987" OD x 0.631"

1шт.

16

D41359

BOLT,Hex, 1 1/4" - 12 x 63.5mm, Gr 8

CAPSCREW

1шт.

17

G32351

WASHER

1шт.

18

211-14

BALL,9/16" Dia

1шт.

19

D38683

SPRING

1шт.

20

D38679

PIN

PIN

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

G34626

SEAL

SET, Includes: Ref. 5 - 9, and 14

1шт.

G100777

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

1шт.

Special seal for extreme heat or cold

1шт.
