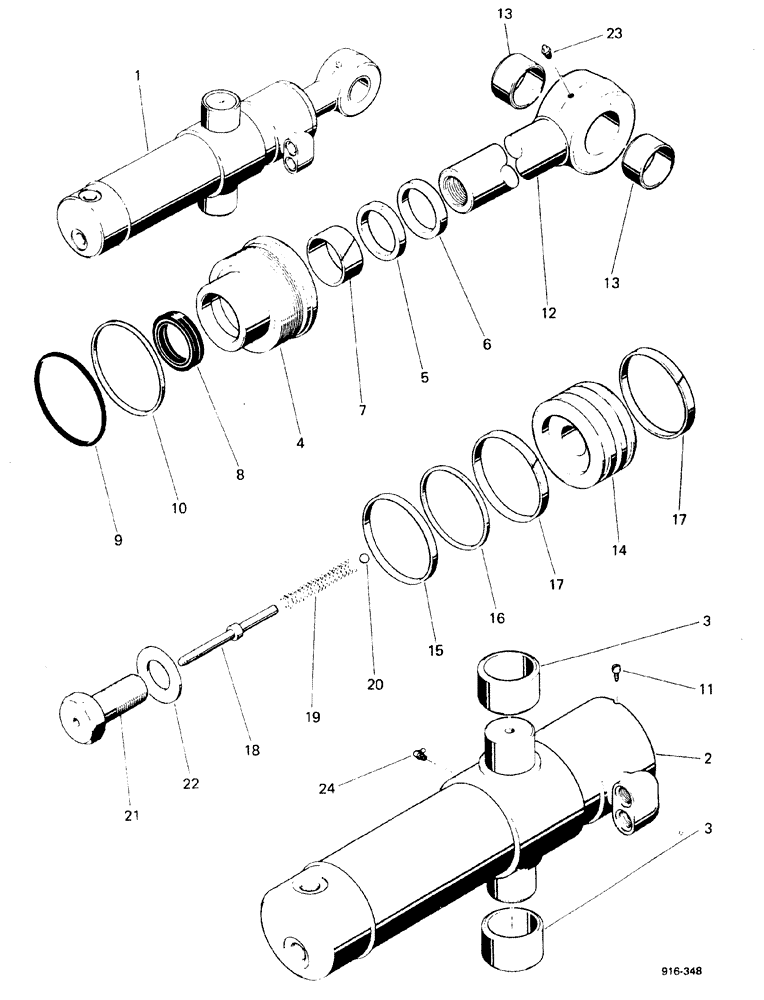

Запчасти Case 580F (197A) - AXIAL BACKHOE SWING CYLINDERS (35) - HYDRAULIC SYSTEMS
№
Артикул
Название
Примечание
Количество
STARTING WITH NO. 3.775.162, UP TO NO. 3.825.530
1шт.
STARTING WITH NO. 3.825.531
1шт.
2
G34877
CYLINDER,101.47 mm ID x 101.6 mm DIA x 471.4 mm L
TUBE ASSEMBLY
1шт.
STARTING WITH NO. 3.775.162, UP TO NO. 3.825.530
1шт.
2
G102576
TUBE,469.89 mm L
ASSEMBLY
1шт.
STARTING WITH NO. 3.825.531
1шт.
3
G34875
BUSHING,50.67mm ID x 60.25mm OD x 33.53mm L
2шт.
G34331
GLAND
ASSEMBLY
1шт.
4
NSS
NOT SOLD SEPARAT
GLAND
1шт.
5
NSS
NOT SOLD SEPARAT
RING
1шт.
6
D95144
WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk
Wiper
1шт.
Part of Seal Set P/N G102401
1шт.
7
G101533
WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk
BEARING
1шт.
Part of Seal Set P/N G102401
1шт.
8
D36971
RING
SEAL
1шт.
Part of Seal Set P/N G102401
1шт.
If needed use G100778 special seal for extreme heat or cold, in place of D36971
1шт.
9
A27507
O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro
1шт.
Part of Seal Set P/N G102401
1шт.
10
G32176
BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk
1шт.
Part of Seal Set P/N G102401
1шт.
11
187-1031
SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"
1шт.
12
G34775
ROD ASSY.
1шт.
13
G34854
BUSHING,44.58mm ID x 53.98mm OD x 22.35mm L
2шт.
14
G101309
PISTON
1шт.
15
G102285
SEAL,Locking, 98.55mm ID x 102.97mm OD x 6.96mm Thk
1шт.
Part of Seal Set P/N G102401
1шт.
16
G100440
RING,Square, 5.28mm Thk x 88.01mm ID
1шт.
Part of Seal Set P/N G102401
1шт.
17
G100448
RING,101.6mm OD, Ext
2шт.
Part of Seal Set P/N G102401
1шт.
18
G102826
PIN
1шт.
19
D38683
SPRING
1шт.
20
211-14
BALL,9/16" Dia
1шт.
21
D41359
BOLT,Hex, 1 1/4" - 12 x 63.5mm, Gr 8
1шт.
22
G32351
WASHER
1шт.
23
219-1
LUBE NIPPLE,1/8" - 27 NPTF
1шт.
24
219-55
LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF
1шт.
G102401
SEAL
SET, Includes: Ref. 6 - 10 and 15 - 17
1шт.
G100778
SEAL
1шт.
Special seal for extreme heat or cold
1шт.
