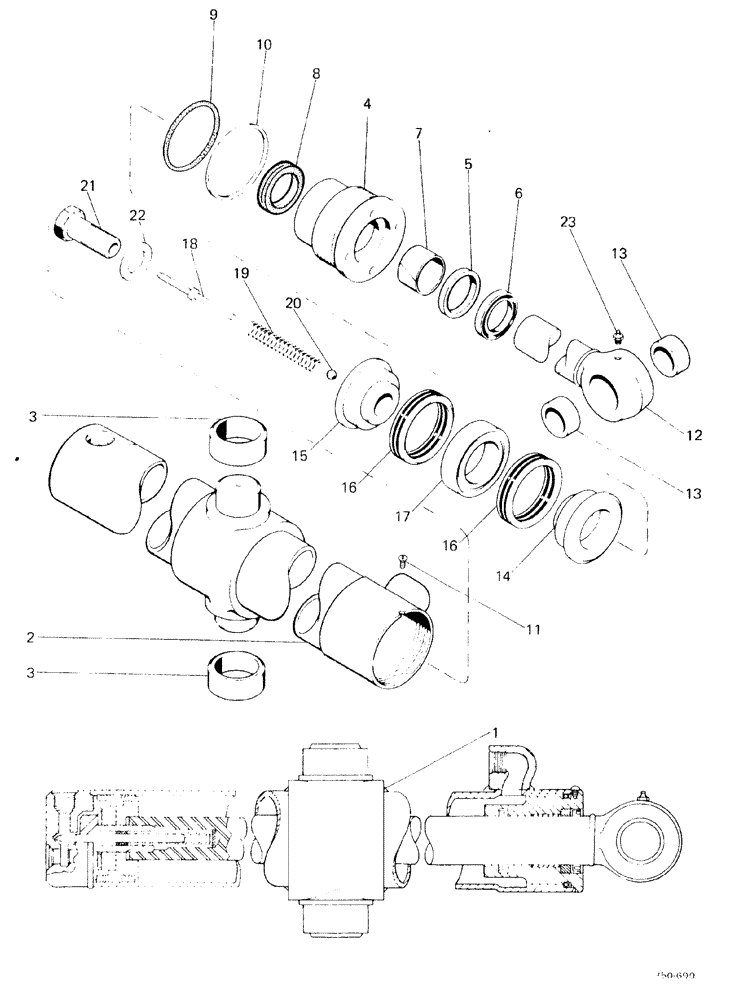

Запчасти Case 580F (196) - AXIAL BACKHOE SWING CYLINDERS, UP TO NO 3.775.161 (35) - HYDRAULIC SYSTEMS

1

G34881

HYDRAULIC CYLINDER

CYLINDER complete

2шт.

2

G34877

CYLINDER,101.47 mm ID x 101.6 mm DIA x 471.4 mm L

TUBE complete

1шт.

3

G34875

BUSHING,50.67mm ID x 60.25mm OD x 33.53mm L

2шт.

G34331

GLAND

complete

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND

1шт.

5

NSS

NOT SOLD SEPARAT

RING

1шт.

6

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper

1шт.

Part of Seal Set P/N G34594

1шт.

7

G101533

WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk

BEARING

1шт.

Part of Seal Set P/N G34594

1шт.

8

D36971

RING

SEAL

1шт.

Part of Seal Set P/N G34594

1шт.

If needed use G100778 special seal for extreme heat or cold, in place of D36971

1шт.

9

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

1шт.

Part of Seal Set P/N G34594

1шт.

10

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

1шт.

Part of Seal Set P/N G34594

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

1шт.

12

G34775

ROD ASSY.

complete

1шт.

13

G34854

BUSHING,44.58mm ID x 53.98mm OD x 22.35mm L

2шт.

14

G33159

PISTON

split

1шт.

15

D49161

PISTON

split

1шт.

16

D47204

PACKING,89.15mm ID x 100.86mm OD

2шт.

Part of Seal Set P/N G34594

1шт.

17

D47209

BEARING,3.006" ID x 3.987" OD x 0.631"

1шт.

18

G102826

PIN

1шт.

19

D38683

SPRING

1шт.

20

211-14

BALL,9/16" Dia

1шт.

21

D41359

BOLT,Hex, 1 1/4" - 12 x 63.5mm, Gr 8

1шт.

22

G32351

WASHER

1шт.

23

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

G34594

SEAL

Set, Includes: Ref. 6 - 10 and 16

1шт.

G100778

SEAL

1шт.

Special seal for extreme heat or cold

1шт.
