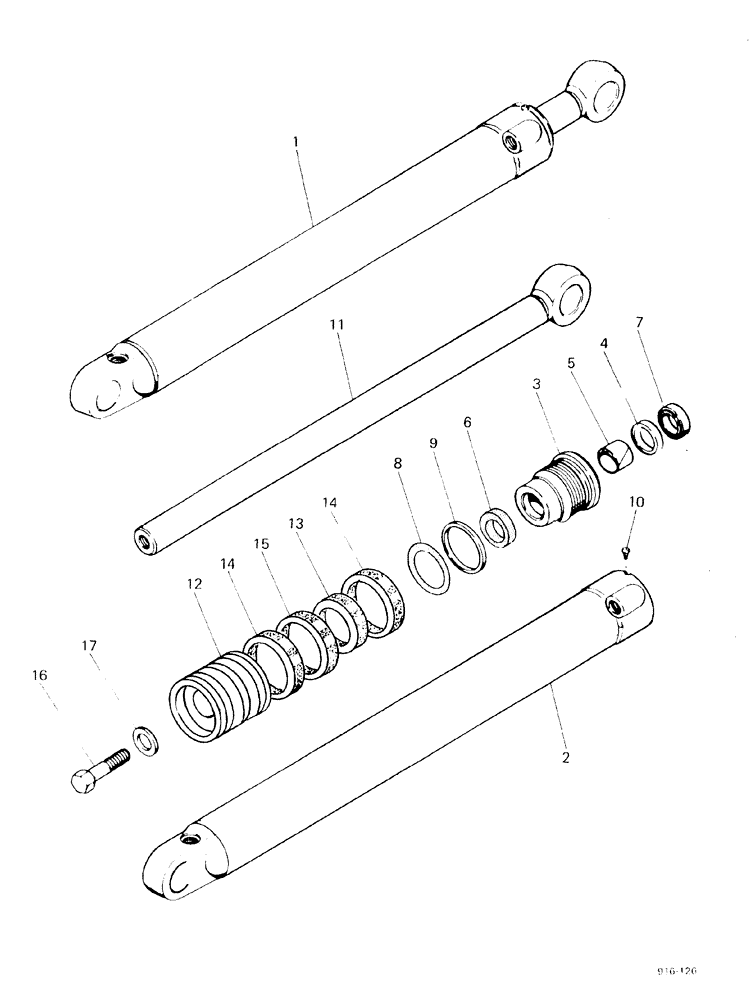

Запчасти Case 580F (195A) - SIDE SHIFT BACKHOE STABILIZER CYLINDERS, STARTING WITH NO 3.785.896 (35) - HYDRAULIC SYSTEMS

1

G101352

CYLINDER ASSY.

complete, left-hand

1шт.

1

G101353

CYLINDER ASSY.

complete, right-hand

1шт.

2

G101664

TUBE,3" OD x 31.19" L

left-hand

1шт.

2

G101665

TUBE,3" DIA x 31.19" L

right-hand

1шт.

G34633

GLAND

complete

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND

1шт.

4

NSS

NOT SOLD SEPARAT

RING

1шт.

5

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

BEARING

1шт.

Part of Seal Set P/N G102405

1шт.

6

D36970

CUP

SEAL

1шт.

Part of Seal Set P/N G102405

1шт.

If needed use G100777 special seal for extreme heat or cold, in place of D36970

1шт.

7

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER

1шт.

Part of Seal Set P/N G102405

1шт.

8

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

1шт.

Part of Seal Set P/N G102405

1шт.

9

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

1шт.

Part of Seal Set P/N G102405

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

1шт.

11

G100009

PISTON ROD

1шт.

12

G100704

PISTON

1шт.

13

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

RING

1шт.

Part of Seal Set P/N G102405

1шт.

14

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

2шт.

Part of Seal Set P/N G102405

1шт.

15

G102288

SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk

1шт.

Part of Seal Set P/N G102405

1шт.

16

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

1шт.

17

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

1шт.

G102405

SEAL

SET, Includes: Ref. 5 - 9 and 13 - 15

1шт.

G100777

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

1шт.

Special seal for extreme heat or cold

1шт.
