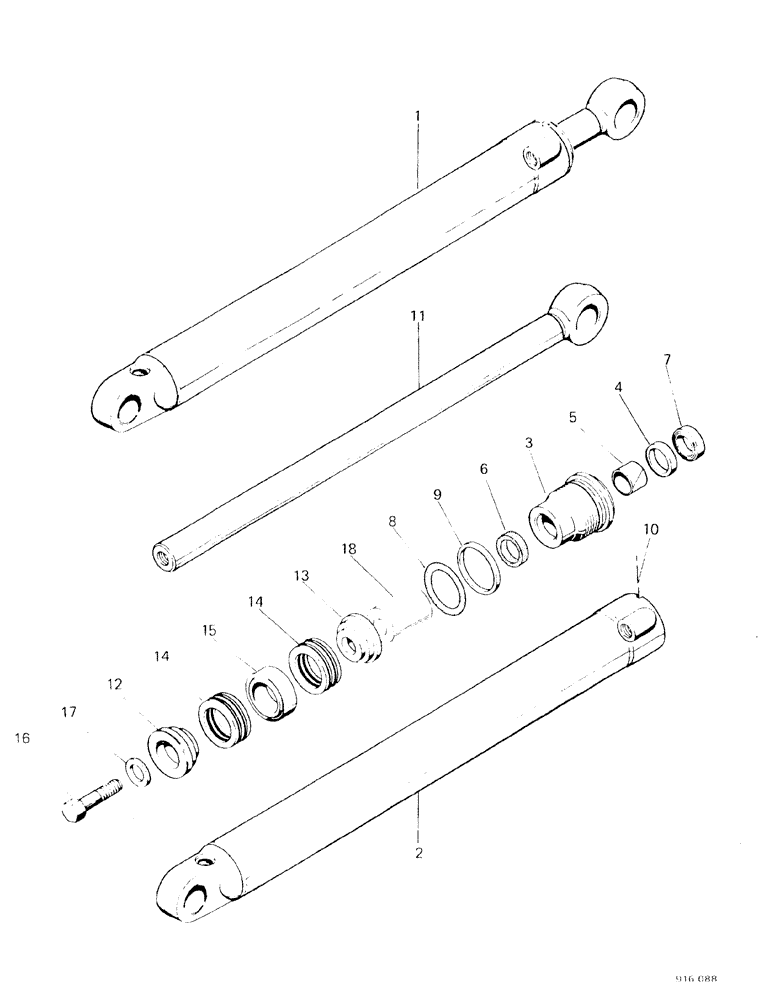

Запчасти Case 580F (194) - SIDE SHIFT BACKHOE STABILIZER CYLINDERS, UP TO NO 3.785.895 (35) - HYDRAULIC SYSTEMS

1

G101091

CYLINDER

complete, right-hand, order G101353 + D76595

1шт.

1

G101090

CYLINDER ASSY.

complete, left-hand, order G10152 + D76597

1шт.

2

G101092

JACK BODY,34.19" L

TUBE left-hand

1шт.

2

G101093

HYD CYL SLEEVE,34.97" L

TUBE right-hand

1шт.

G34633

GLAND

complete

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND

1шт.

4

NSS

NOT SOLD SEPARAT

RING

1шт.

5

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

BEARING

1шт.

Part of Seal Set P/N G34642

1шт.

6

D36970

CUP

SEAL

1шт.

Part of Seal Set P/N G34642

1шт.

If needed use G100777 special seal for extreme heat or cold, in place of D36970

1шт.

7

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER

1шт.

Part of Seal Set P/N G34642

1шт.

8

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

SEAL

1шт.

Part of Seal Set P/N G34642

1шт.

9

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

1шт.

Part of Seal Set P/N G34642

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

1шт.

11

G100009

PISTON ROD

1шт.

12

D28896

PISTON

split

1шт.

13

G33331

PISTON

split

1шт.

G33151

PACKING

SEAL complete

1шт.

Part of Seal Set P/N G34642

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL

2шт.

15

NSS

NOT SOLD SEPARAT

RING

1шт.

16

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

1шт.

17

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

1шт.

18

G101099

BUSHING

SPACER

1шт.

G34642

SEAL

SET, Includes: Ref. 5 - 8 and 13, G33151

1шт.

G100777

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

1шт.

Special seal for extreme heat or cold

1шт.
