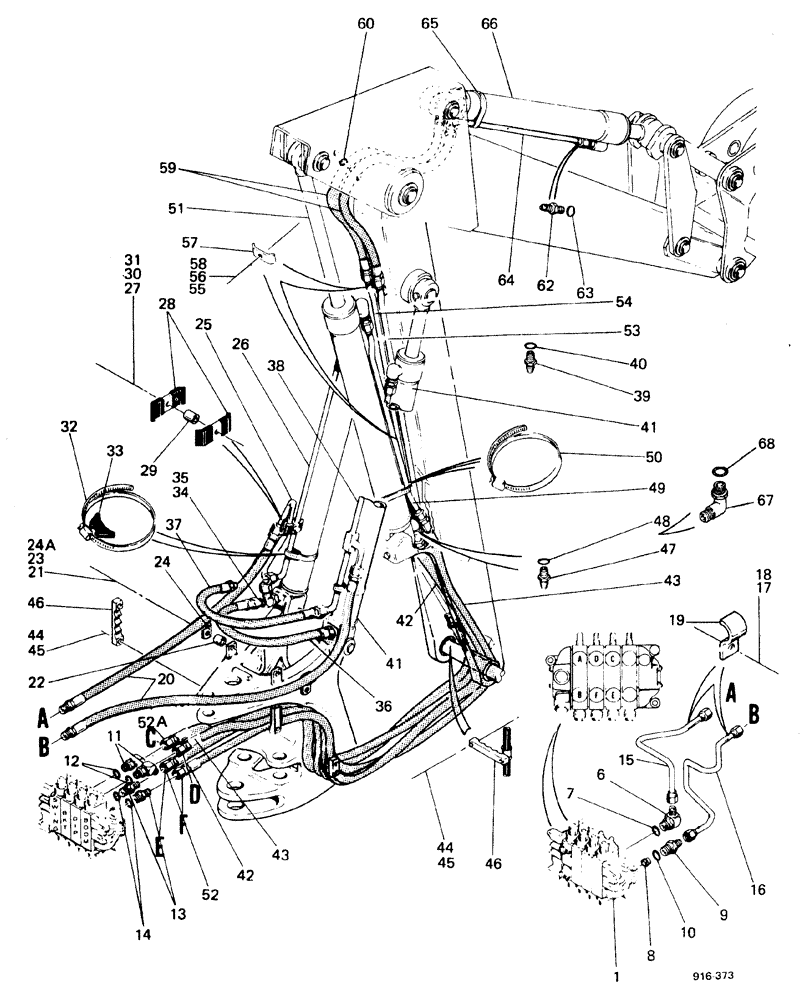

Запчасти Case 580F (188) - BACKHOE HYDRAULIC CYLINDERS (35) - HYDRAULIC SYSTEMS
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
VALVE, see Figure 212
1шт.
6
218-5118
ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB
1шт.
7
218-5010
O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro
1шт.
8
D56252
FITTING
VALVE flow control
1шт.
9
L55143
FITTING
CONNECTOR ADAPTER
1шт.
10
218-5010
O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro
1шт.
11
218-5144
ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB
ELBOW
2шт.
12
218-5010
O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro
1шт.
13
218-5077
HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB
ADAPTER
2шт.
14
218-5010
O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro
1шт.
15
D69177
HYD TUBE,0.75" OD x 5.71, 5.16" L
1шт.
15
E35887
TUBE
for Suedish only
1шт.
16
D69199
HYD TUBE,0.75" OD x 10.7, 9.8" L
1шт.
16
E35889
TUBE
for Suedish only
1шт.
17
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
CAP
2шт.
18
92-6
LOCK WASHER,3/8"
2шт.
19
D41165
CLAMP,19mm ID, 10.5mm Bolt Hole, J Type
2шт.
20
E35287
HOSE,15.88mm ID x 1066.8mm L, SAE 100R2
2шт.
21
13-624
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
2шт.
22
D72284
SLEEVE
2шт.
23
195-25
WASHER,3/8"
2шт.
24
D47782
CLAMP,25.4mm ID, 10.31mm Bolt Hole, P Type
2шт.
24a
131-652
LOCK NUT,3/8"-16, GB
2шт.
25
D69421
HYD TUBE,0.75" OD
1шт.
26
D69234
HYD TUBE,0.75" OD x 41.4, 2.75" L
1шт.
27
13-632
BOLT,Hex, 3/8" - 16 x 2", Gr 5
1шт.
28
D40236
CLAMP
1шт.
29
D34244
SPACER
SPACER
1шт.
30
92-6
LOCK WASHER,3/8"
1шт.
31
25-106
NUT,3/8"-16, G5
1шт.
32
214-267
HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm
2шт.
33
D38648
BLOCK
RUBBER
2шт.
34
218-5239
TEE,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB
CONNECTOR
1шт.
35
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
36
D65491
HOSE,12.7mm ID x 558.8mm L, SAE 100R2
22"/559 mm
1шт.
37
D65886
HOSE,12.7mm ID x 457.2mm L, SAE 100R2
18"/457 mm
1шт.
38
D69237
TUBE
1шт.
39
218-5065
HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB
Adapter
2шт.
40
218-5007
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
1шт.
41
REF
INSTRUCTION
CYLINDER, see Figure 200
2шт.
42
D69168
HOSE,15.88mm ID x 1854.2mm L, SAE 100R2
73"/1854 mm
1шт.
43
D70870
HOSE,15.88mm ID x 2032mm L, SAE 100R2
80"/2032 mm
1шт.
44
13-828
BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5
3шт.
45
92-8
LOCK WASHER,1/2"
4шт.
46
D72608
CLAMP
2шт.
47
218-5065
HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB
Adapter
2шт.
UP TO NO. 3.775.120
1шт.
47
218-5065
HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB
Adapter
1шт.
STARTING WITH NO. 3.775.121
1шт.
48
218-5007
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
1шт.
49
D50379
TUBE
1шт.
50
214-269
HOSE CLAMP,#72, 4.06" - 5", Type F Worm
1шт.
51
REF
INSTRUCTION
CYLINDER, see Figure 202
1шт.
52
D69170
HOSE,15.88mm ID x 1219.2mm L, SAE 100R2
48"/1219 mm
1шт.
52a
D70871
HOSE
50"/1270 mm
1шт.
UP TO NO. 3.775.193
1шт.
52a
D74339
HOSE,15.88mm ID x 1371.6mm L, SAE 100R2
54"/1372 mm
1шт.
STARTING WITH NO. 3.775.194
1шт.
53
D64920
TUBE
1шт.
UP TO NO. 3.775.193
1шт.
53
D87421
HYD TUBE,0.75" OD x 4.65, 73.4" L
1шт.
STARTING WITH NO. 3.775.194
1шт.
54
D64918
TUBE
left-hand
1шт.
UP TO NO. 3.775.193
1шт.
54
D84597
HYD TUBE,0.75" OD x 70, 2.58" L
left-hand
1шт.
STARTING WITH NO. 3.775.194
1шт.
55
13-624
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
2шт.
56
92-6
LOCK WASHER,3/8"
2шт.
57
D40236
CLAMP
2шт.
58
D95801
BUSHING
SPACER
2шт.
59
D50372
HOSE
34"/864 mm
2шт.
60
L11541
CABLE TIE,203.2mm L, Nylon
CABLE STRAP
1шт.
62
218-5065
HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB
Adapter
2шт.
63
218-5007
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
SEAL
1шт.
64
D58609
TUBE
1шт.
65
214-269
HOSE CLAMP,#72, 4.06" - 5", Type F Worm
1шт.
66
REF
INSTRUCTION
CYLINDER, see Figure 222
1шт.
67
218-5123
ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB
ADAPTER
1шт.
STARTING WITH NO. 3.775.121
1шт.
68
218-5007
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
1шт.
Выбрано товаров: 80
