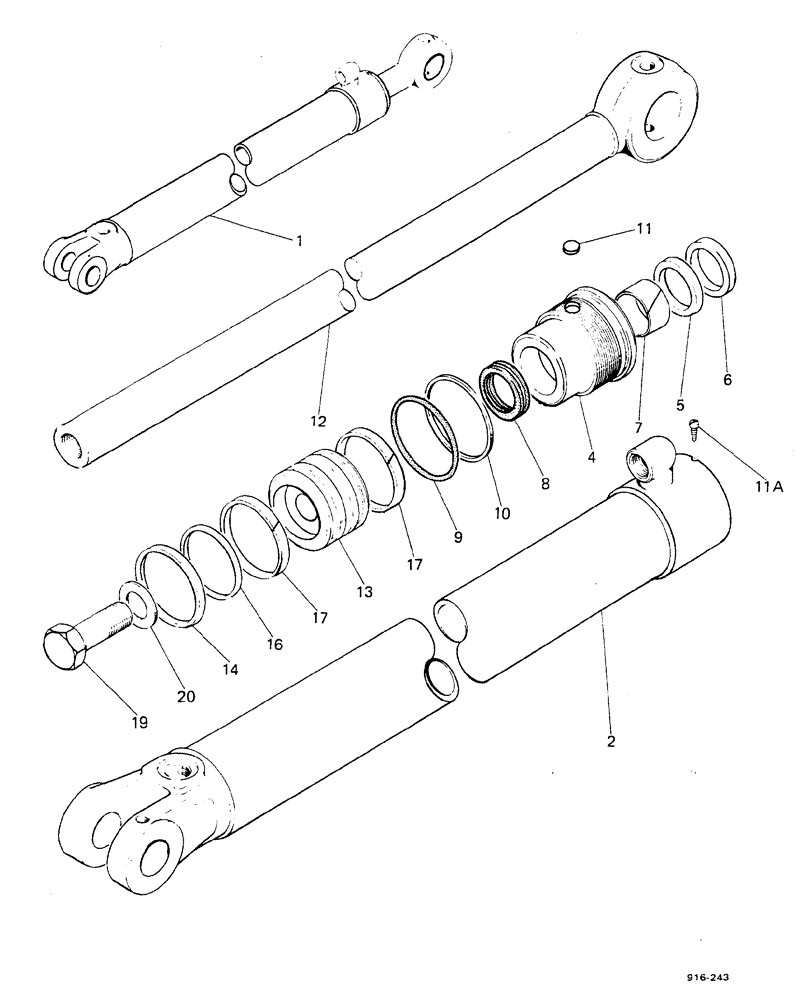

Запчасти Case 580F (218) - BACKHOE, BOOM CYLINDERS (35) - HYDRAULIC SYSTEMS

1

G101177

BOOM

CYLINDER ASSY., Includes: Ref. 2-20

2шт.

Look for cylinder assembly part number to be stamped on cylinder gland

1шт.

2

G33882

TUBE

1шт.

G102875

GLAND

ASSY., Includes: Ref. 4-11

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND

1шт.

5

NSS

NOT SOLD SEPARAT

RING

1шт.

6

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER

1шт.

Part of SET P/N G102403

1шт.

7

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

BEARING

1шт.

Part of SET P/N G102403

1шт.

8

D36970

CUP

SEAL, see G100777

1шт.

Part of SET P/N G102403

1шт.

9

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

1шт.

Part of SET P/N G102403

1шт.

10

D38858

BACK-UP RING,82.17mm ID x 88.27mm OD x 1.4mm Thk

1шт.

Part of SET P/N G102403

1шт.

11

G102569

PLUG

if used

1шт.

11a

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

if used

1шт.

12

G33885

ROD

1шт.

13

G100642

PISTON

1шт.

14

G102287

SEAL,Locking, 79.07mm ID x 83.8mm OD x 6.96mm Thk

1шт.

Part of SET P/N G102403

1шт.

16

S109444

RING,Square, 5.28mm Thk x 68.96mm ID

1шт.

Part of SET P/N G102403

1шт.

17

S109445

RING,82.55mm OD, Ext

2шт.

Part of SET P/N G102403

1шт.

19

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

1шт.

20

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

1шт.

G102403

SEAL

SET of, Includes: Ref. 6, 7, 8, 9, 10, 14, 16 and 17

1шт.

G100777

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

special seal for extreme heat or cold, see D36970

1шт.
