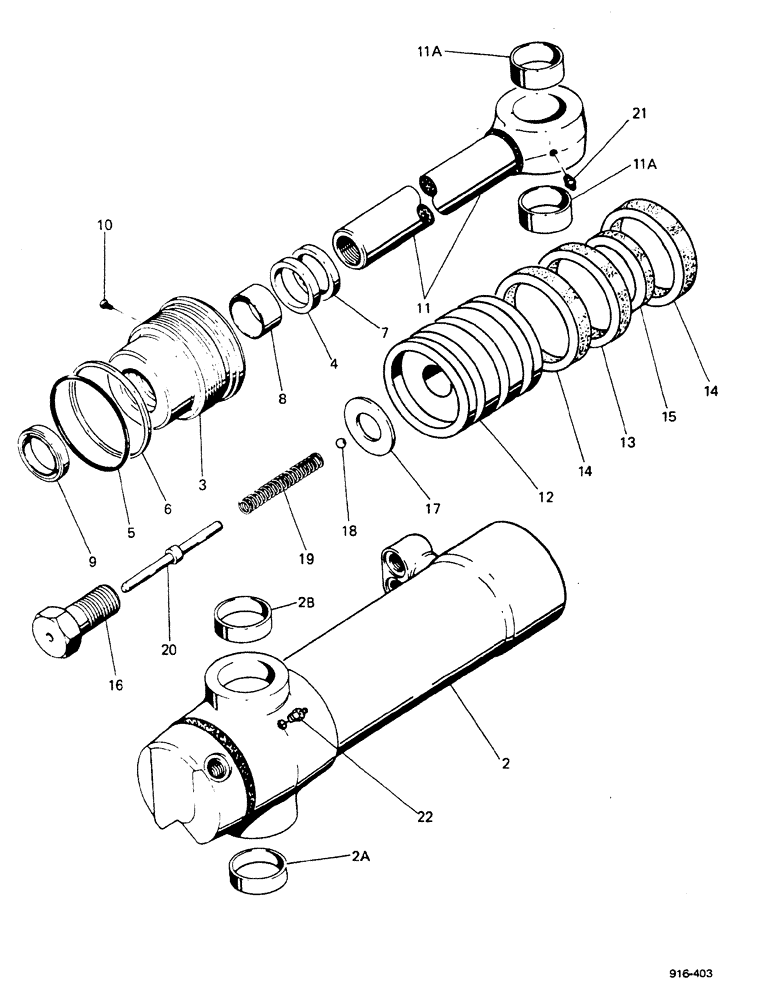

Запчасти Case 580F (216) - SIDE SHIFT BACKHOE, SWING CYLINDERS (35) - HYDRAULIC SYSTEMS

G102815

CYLINDER

complete, Includes: Ref. 2-22

2шт.

Look for cylinder assembly part number to be stamped on cylinder gland

1шт.

2

G35407

TUBE

Includes: Ref. 2A and 2B

1шт.

2a

G35413

BUSHING

1шт.

2b

G100986

BUSHING

1шт.

G34331

GLAND

complete, Includes: Ref. 3-9

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND

1шт.

4

NSS

NOT SOLD SEPARAT

RING

1шт.

5

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

1шт.

Part of SET P/N G102401

1шт.

6

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

1шт.

Part of SET P/N G102401

1шт.

7

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper

1шт.

Part of SET P/N G102401

1шт.

8

G101533

WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk

BEARING

1шт.

Part of SET P/N G102401

1шт.

9

D36971

RING

see P/N G100778

1шт.

Part of SET P/N G102401

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

1шт.

11

G102816

STEM

ROD, Includes: Ref. 11A

1шт.

11a

G35418

BUSHING,45.2mm ID x 53.98mm OD x 22.35mm L

2шт.

12

G100438

PISTON,100.89mm Bore, 32.8mm Rod, 50.7mm W

1шт.

13

G102285

SEAL,Locking, 98.55mm ID x 102.97mm OD x 6.96mm Thk

1шт.

Part of SET P/N G102401

1шт.

14

G100448

RING,101.6mm OD, Ext

2шт.

Part of SET P/N G102401

1шт.

15

G100440

RING,Square, 5.28mm Thk x 88.01mm ID

1шт.

Part of SET P/N G102401

1шт.

16

D41359

BOLT,Hex, 1 1/4" - 12 x 63.5mm, Gr 8

1шт.

17

G32351

WASHER

1шт.

18

211-17

BALL,3/4" Dia

1шт.

19

D38683

SPRING

1шт.

20

G102826

PIN

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

If used

1шт.

G102401

SEAL

SET of, Includes: Ref. 5, 6, 7, 8, 9, 13, 14 and 15

1шт.

G100778

SEAL

special seal for extreme heat or cold, see D36971

1шт.
