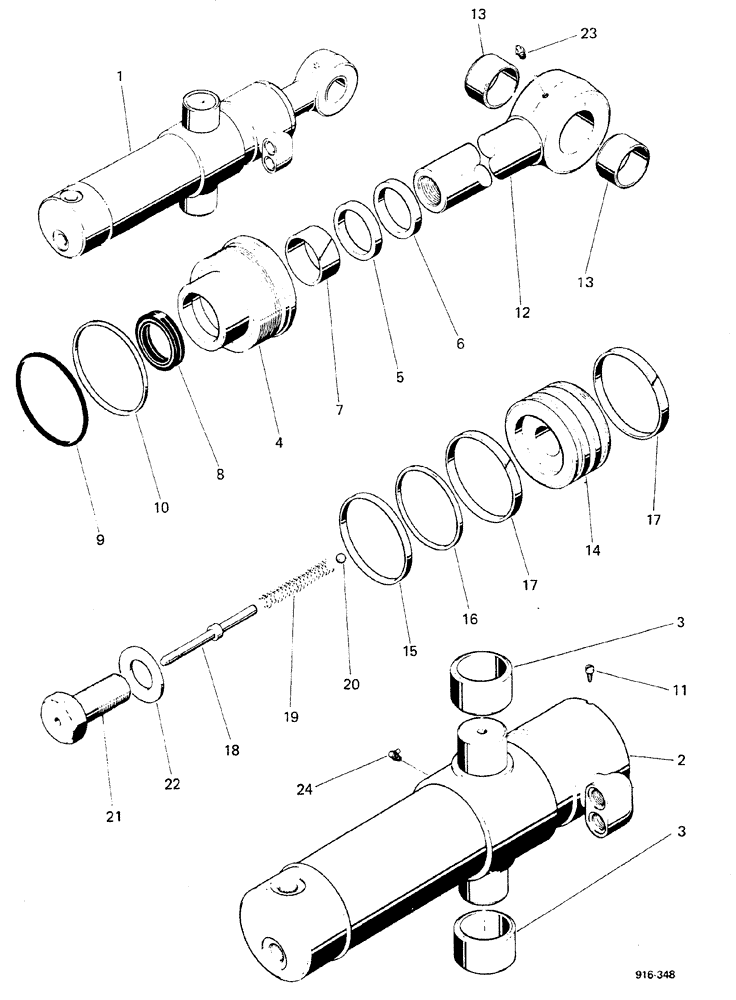

Запчасти Case 580F (214) - AXIAL BACKHOE, SWING CYLINDERS (35) - HYDRAULIC SYSTEMS

1

G102525

CYLINDER

ASSY., Includes: Ref. 2-24

2шт.

Look for cylinder assembly part number to be stamped on cylinder gland

1шт.

2

G102576

TUBE,469.89 mm L

ASSY., Includes: Ref. 3

1шт.

3

G34875

BUSHING,50.67mm ID x 60.25mm OD x 33.53mm L

2шт.

G34331

GLAND

ASSY., Includes: Ref. 4-10

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND

1шт.

5

NSS

NOT SOLD SEPARAT

RING

1шт.

6

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper

1шт.

Part of SET P/N G102401

1шт.

7

G101533

WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk

BEARING

1шт.

Part of SET P/N G102401

1шт.

8

D36971

RING

see G100778

1шт.

Part of SET P/N G102401

1шт.

9

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

1шт.

Part of SET P/N G102401

1шт.

10

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

1шт.

Part of SET P/N G102401

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

1шт.

12

G34775

ROD ASSY.

Includes: Ref. 13

1шт.

13

G34854

BUSHING,44.58mm ID x 53.98mm OD x 22.35mm L

2шт.

14

G101309

PISTON

1шт.

15

G102285

SEAL,Locking, 98.55mm ID x 102.97mm OD x 6.96mm Thk

1шт.

Part of SET P/N G102401

1шт.

16

G100440

RING,Square, 5.28mm Thk x 88.01mm ID

1шт.

Part of SET P/N G102401

1шт.

17

G100448

RING,101.6mm OD, Ext

2шт.

Part of SET P/N G102401

1шт.

18

G102826

PIN

1шт.

19

D38683

SPRING

1шт.

20

211-14

BALL,9/16" Dia

1шт.

21

D41359

BOLT,Hex, 1 1/4" - 12 x 63.5mm, Gr 8

1шт.

22

G32351

WASHER

1шт.

23

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

24

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

1шт.

G102401

SEAL

SET of, Includes: Ref. 6, 7, 8, 9, 10, 15, 16 and 17

1шт.

G100778

SEAL

special seal for extreme heat or cold, see D36971

1шт.
