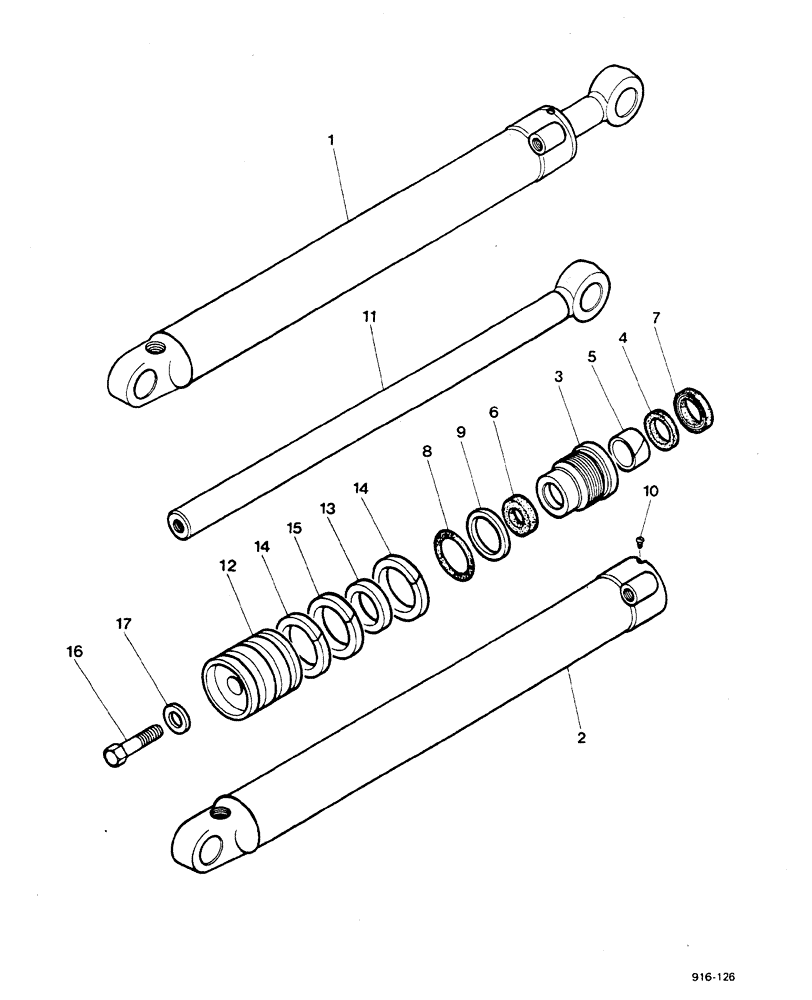

Запчасти Case 580F (212) - SIDE SHIFT BACKHOE, STABILIZER CYLINDERS (35) - HYDRAULIC SYSTEMS

1

G101352

CYLINDER ASSY.

L.H., Includes: Ref. 2-17

1шт.

Look for cylinder assembly part number to be stamped on cylinder gland

1шт.

1

G101353

CYLINDER ASSY.

R.H., Includes: Ref. 2-17

1шт.

Look for cylinder assembly part number to be stamped on cylinder gland

1шт.

2

G101664

TUBE,3" OD x 31.19" L

L.H.

1шт.

2

G101665

TUBE,3" DIA x 31.19" L

TUBE, R.H.

1шт.

G34633

GLAND

complete, Includes: Ref. 3-9

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND

1шт.

4

NSS

NOT SOLD SEPARAT

RING

1шт.

5

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

BEARING

1шт.

Part of SET P/N G102405

1шт.

6

D36970

CUP

SEAL, see G100777

1шт.

Part of SET P/N G102405

1шт.

7

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER

1шт.

Part of SET P/N G102405

1шт.

8

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

1шт.

Part of SET P/N G102405

1шт.

9

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

1шт.

Part of SET P/N G102405

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

1шт.

11

G100009

PISTON ROD

1шт.

12

G100704

PISTON

1шт.

13

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

1шт.

Part of SET P/N G102405

1шт.

14

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

2шт.

Part of SET P/N G102405

1шт.

15

G102288

SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk

1шт.

Part of SET P/N G102405

1шт.

16

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

1шт.

17

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

1шт.

G102405

SEAL

SET of, Includes: Ref. 5, 6, 7, 8, 9, 13, 14 and 15

1шт.

G100777

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

special seal for extreme heat or cold, see D36970

1шт.
