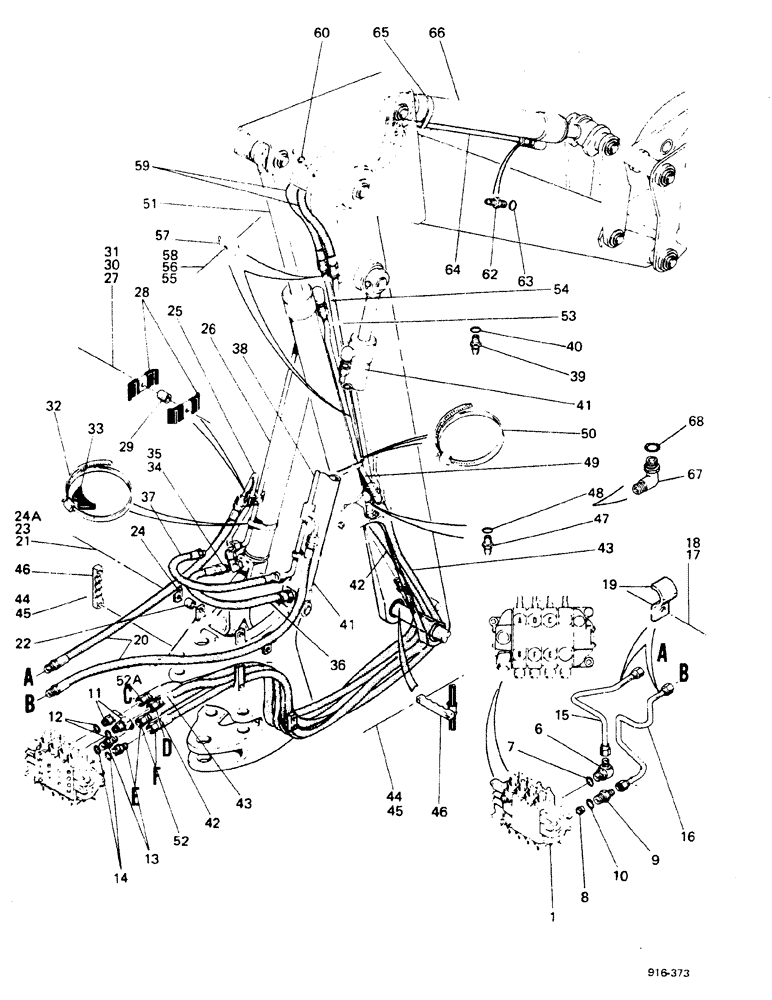

Запчасти Case 580F (206) - BACKHOE, HYDRAULIC CYLINDERS (35) - HYDRAULIC SYSTEMS

1

REF

INSTRUCTION

VALVE, see Figure 234

1шт.

6

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Includes: Ref. 7

1шт.

7

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

8

D56252

FITTING

VALVE flow control

1шт.

9

L55143

FITTING

CONNECTOR Includes: Ref. 10

1шт.

10

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

11

218-5144

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

elbow, Includes: Ref. 12

2шт.

12

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

13

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. Ref. 14

2шт.

14

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

15

D69177

HYD TUBE,0.75" OD x 5.71, 5.16" L

1шт.

15

E35887

TUBE

for Sweden only

1шт.

16

E40089

TUBE

1шт.

16

E40482

TUBE

for Sweden only

1шт.

17

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

18

92-6

LOCK WASHER,3/8"

2шт.

19

D41165

CLAMP,19mm ID, 10.5mm Bolt Hole, J Type

2шт.

20

E35287

HOSE,15.88mm ID x 1066.8mm L, SAE 100R2

2шт.

21

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

22

D72284

SLEEVE

2шт.

23

195-25

WASHER,3/8"

2шт.

24

E42827

COLLAR

CLAMP

2шт.

24a

131-652

LOCK NUT,3/8"-16, GB

2шт.

25

D69421

HYD TUBE,0.75" OD

1шт.

26

D69234

HYD TUBE,0.75" OD x 41.4, 2.75" L

1шт.

27

13-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

28

D40236

CLAMP

1шт.

29

D34244

SPACER

1шт.

30

92-6

LOCK WASHER,3/8"

1шт.

31

25-106

NUT,3/8"-16, G5

1шт.

32

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

2шт.

33

D38648

BLOCK

rubber

2шт.

34

218-5239

TEE,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Includes: Ref. 35

1шт.

35

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

36

D65491

HOSE,12.7mm ID x 558.8mm L, SAE 100R2

22", 559 mm

1шт.

37

D65886

HOSE,12.7mm ID x 457.2mm L, SAE 100R2

18", 457 mm

1шт.

38

D69237

TUBE

1шт.

39

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

Includes: Ref. 40

2шт.

40

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

41

REF

INSTRUCTION

CYLINDER, see Figure 218

2шт.

42

D69168

HOSE,15.88mm ID x 1854.2mm L, SAE 100R2

73", 1854 mm

1шт.

43

D70870

HOSE,15.88mm ID x 2032mm L, SAE 100R2

80", 2032 mm

1шт.

44

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

3шт.

45

92-8

LOCK WASHER,1/2"

4шт.

46

D72608

CLAMP

2шт.

47

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

Includes: Ref. 48

1шт.

48

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

49

D50379

TUBE

1шт.

50

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

1шт.

51

REF

INSTRUCTION

CYLINDER, see Figure 220

1шт.

52

D69170

HOSE,15.88mm ID x 1219.2mm L, SAE 100R2

48", 1219 mm

1шт.

52a

D74339

HOSE,15.88mm ID x 1371.6mm L, SAE 100R2

54", 1372 mm

1шт.

53

D87421

HYD TUBE,0.75" OD x 4.65, 73.4" L

1шт.

54

D84597

HYD TUBE,0.75" OD x 70, 2.58" L

L.H.

1шт.

55

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

56

92-6

LOCK WASHER,3/8"

2шт.

57

D40236

CLAMP

2шт.

58

D71789

BUSHING

2шт.

59

D50372

HOSE

34", 864 mm

2шт.

60

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

1шт.

62

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

Includes: Ref. 63

2шт.

63

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

64

D58609

TUBE

1шт.

65

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

1шт.

66

REF

INSTRUCTION

CYLINDER, see Figure 222

1шт.

67

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

Includes: Ref. 68

1шт.

68

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.
