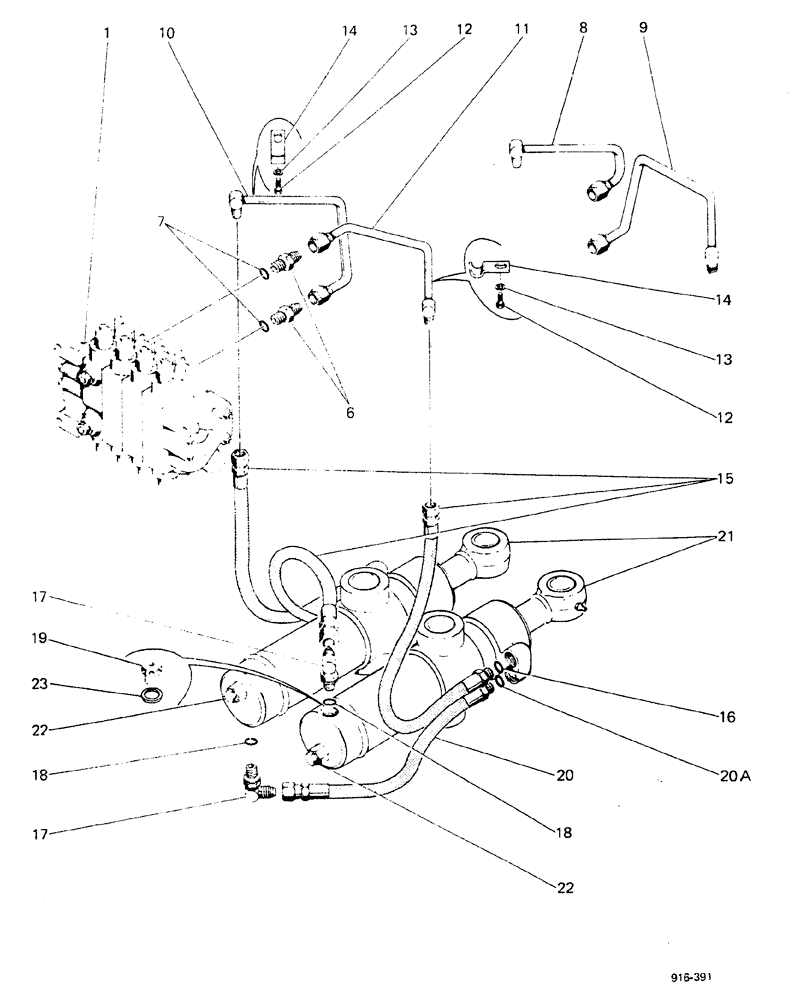

Запчасти Case 580F (204) - BACKHOE, HYDRAULIC SWING CYLINDERS (35) - HYDRAULIC SYSTEMS

1

REF

INSTRUCTION

VALVE, see Figure 234

1шт.

6

218-5078

HYD CONNECTOR,7/8" - 14 Male JIC x 1-5/16" - 12 Male ORB

Includes: Ref. 7

2шт.

7

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

8

D68461

TUBE

for two lever controls

1шт.

9

D68459

TUBE

for two lever controls

1шт.

10

D68313

TUBE

for five lever controls

1шт.

11

D68311

PIPE

for five lever controls

1шт.

12

13-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

cap

2шт.

13

92-8

LOCK WASHER,1/2"

2шт.

14

D50551

CLIP

2шт.

15

D39140

HOSE,12.7mm ID x 609.6mm L, SAE 100R2

Includes: Ref. 16

3шт.

17

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Includes Ref. 18

2шт.

18

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

19

D121529

STOP

VALVE flow control, with extendahoe

2шт.

19

D76235

VALVE

flow control, without extendahoe

1шт.

20

D39140

HOSE,12.7mm ID x 609.6mm L, SAE 100R2

Includes: Ref. 20A

1шт.

21

REF

INSTRUCTION

CYLINDER, see Figure 214

2шт.

22

REF

INSTRUCTION

VALVE, See Figure 280

2шт.

23

D91609

BUSHING

if used

1шт.

16

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

4шт.

20a

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.
