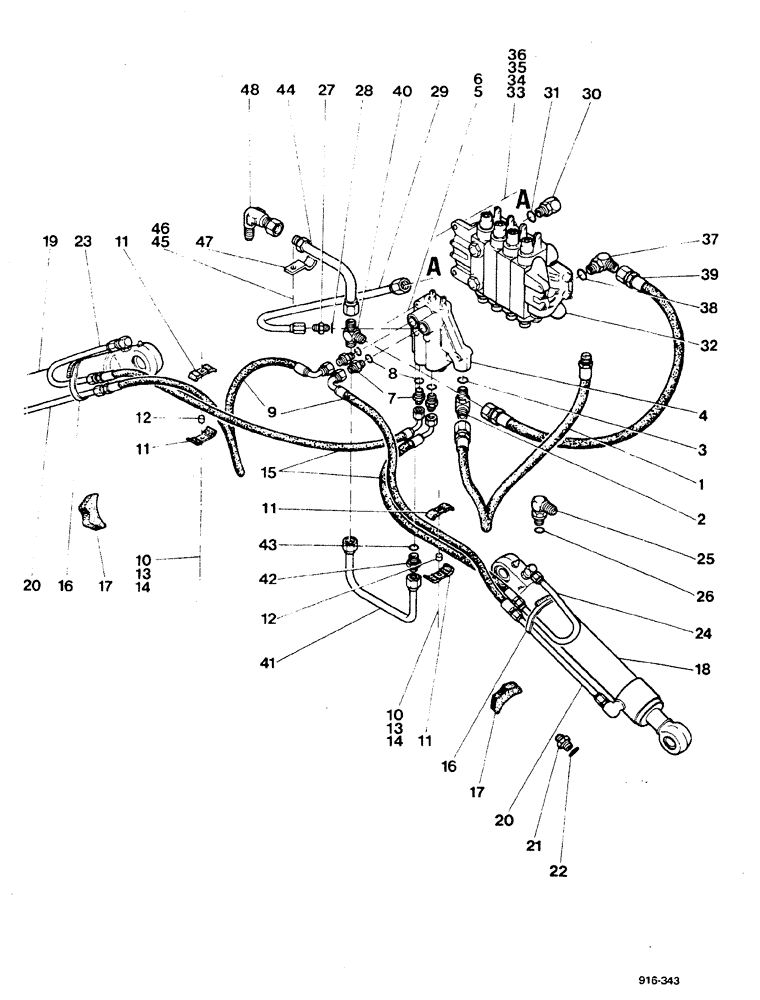

Запчасти Case 580F (202) - BACKHOE, STABILIZER CYLINDERS (35) - HYDRAULIC SYSTEMS

1

D66505

HOSE

1шт.

2

218-5124

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Includes: Ref. 3

1шт.

3

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

4

REF

INSTRUCTION

VALVE, see Figure 246

1шт.

5

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

2шт.

6

92-5

LOCK WASHER,5/16"

2шт.

7

218-5354

HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring

Includes Ref. 8

4шт.

8

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

9

D65652

HOSE,9.53mm ID x 990.6mm L, SAE 100R2

2шт.

10

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

2шт.

11

D40236

CLAMP

4шт.

12

D34244

SPACER

2шт.

13

92-6

LOCK WASHER,3/8"

2шт.

14

25-106

NUT,3/8"-16, G5

2шт.

15

D56043

HOSE,9.53mm ID x 863.6mm L, SAE 100R2

2шт.

16

214-275

HOSE CLAMP,#92, 5.38" - 6.25", Type F Worm

2шт.

17

D38648

BLOCK

GROMMET rubber

2шт.

18

REF

INSTRUCTION

CYLINDER, R.H., see Figure 210

1шт.

19

REF

INSTRUCTION

CYLINDER, L.H., see Figure 210

1шт.

20

D55865

TUBE

2шт.

21

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Incl. Ref 22

2шт.

22

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

23

D55360

TUBE

1шт.

24

D55357

TUBE

1шт.

25

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Includes Ref. 26

2шт.

26

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

27

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref. 28

1шт.

28

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

29

D68573

TUBE

1шт.

30

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Includes: Ref. 31

1шт.

31

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

32

REF

INSTRUCTION

VALVE, see Figure 234

1шт.

33

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

3шт.

34

92-8

LOCK WASHER,1/2"

3шт.

35

95-8

WASHER,1/2"

3шт.

36

25-108

NUT,1/2"-13, G5

3шт.

37

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. Ref. 38

1шт.

38

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

39

D67792

HOSE

without extendahoe

1шт.

39

D73346

HOSE

with extendahoe

1шт.

40

218-590

TEE,37º, 1 5/16"-12 x 1 1/16"-12, Run

1шт.

41

D68315

TUBE

1шт.

42

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

Includes: Ref. 43

1шт.

43

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

44

D68317

TUBE

1шт.

45

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

46

92-6

LOCK WASHER,3/8"

1шт.

47

D55880

CLAMP

1шт.

48

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

elbow

1шт.
